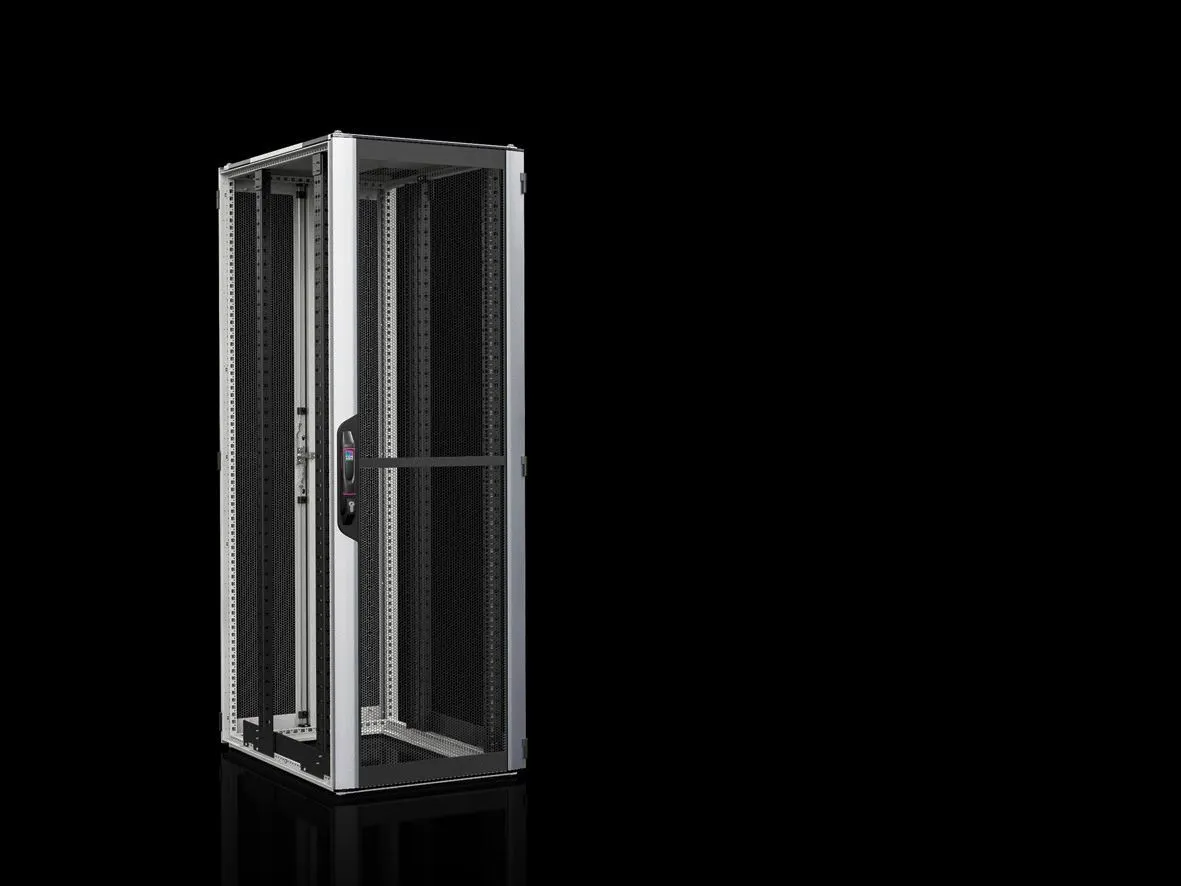

Rittal VX 5315.818 IT Enclosure - Dynamic 47U
Part Number: 5315818
Quick Summary
The Rittal VX 5315.818 IT enclosure provides robust 19-inch network and server protection for data centers and telecom rooms. Engineers often wrestle with heat, airflow, and secure access in tight footprints; this vented, dynamic chassis mitigates those challenges while preserving serviceability. Key standards referenced include UL 2416 load compatibility, ETIM 9 EC002499 classification, and ECLASS 8.0 27180207, helping align purchasing and maintenance programs. With a 47U interior, front and rear venting, and 482.6 mm mounting angles, it scales easily for growing IT deployments. The rugged finish and modular design reduce lifecycle costs while improving reliability in demanding environments.
Product Information
Extended Description
5315818 Rittal: VX IT, 19" mounting angles, dynamic, front and rear, vented, WHD: 600 x 2200 x 1200 mm, 47 U
Article number
VX 5315.818
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated), vertically divided, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear
Dimensions
Width: 600 mm | Height: 2,200 mm | Depth: 1,200 mm
Units
47 U
Units
47 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 325 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
725 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and on depth stays at the bottom
Design
dynamic
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
Dynamic 482.6 mm (19") mounting angles in the VX IT
Base design
Open
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
18,000 N
Max. load capacity (static) per enclosure to UL 2416
15,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
95.1 kg
PCF per pack (cradle-to-gate)
234.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945371
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, dynamic, front and rear, vented, WHD: 600 x 2200 x 1200 mm, 47 U
Feature: 19" mounting angles, front and rear, dynamic VX IT frame enables flexible equipment layouts. Business impact: simplifies upgrades and expansion without cabinet replacement, boosting rack density and reducing downtime during reconfigurations. Application: data centers, server rooms, and telecom closets that require scalable IT infrastructure. Feature: Ventilated front and rear doors with approximately 85% perforation. Business impact: enhances passive cooling, lowers active cooling load, and stabilizes equipment temperatures, improving uptime. Application: high-heat panels, storage arrays, and network switches in climate-controlled rooms. Feature: 600 mm width, 2,200 mm height, 1,200 mm depth (47U) enclosure. Business impact: delivers substantial internal space for spare cabling and growth, enabling organized cable management and safer maintenance. Application: mixed IT racks and networking deployments with future expansion. Feature: Material options and finish (sheet steel | aluminium; powder-coated rear/roof; anodised front). Business impact: delivers durable protection in open-plan data centers and semi-industrial environments while maintaining corrosion resistance and aesthetic consistency. Application: rugged environments and modernization projects requiring long service life. Feature: High load capacity of 18,000 N (static 15,000 N UL 2416). Business impact: supports dense, heavy equipment without compromising cabinet integrity, reducing cabinet substitutions. Application: housing of dense servers, storage units, and power distribution equipment. Feature: Front door (aluminium/sheet steel) and vented rear door with 180° hinges plus cable-entry roof design. Business impact: facilitates rapid access for maintenance, efficient airflow routing, and convenient cable management during installation. Application: IT rooms with frequent hardware changes and cable rearrangements. Industry insight: The VX IT enclosure’s dynamic mounting angles and comprehensive accessory set (spacers, fasteners, and rails) reduce installation time by standardizing mounting, improving first-pass wiring quality, and minimizing field rework—key for deployments with tight project timelines.
Get a Quick Quote for a Rittal 5315818
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5315818?
Enquire Now
FAQs
The VX 5315.818 includes 482.6 mm (19") mounting angles mounted to the frame top and bottom extensions. Use the supplied 12 x 482.6 mm fasteners and 25 multi-tooth screws to secure the cabinet to a suitable base. Front and rear doors are 180° hinge, enabling flexible service access from either side. Ensure rear door clearance and ambient room conditions meet the 47U footprint and weight considerations (approximately 95.1 kg per pack).
The enclosure supports up to 18,000 N load capacity, with a static limit of 15,000 N per UL 2416. The packed weight is 95.1 kg, reflecting its robust sheet steel and aluminium construction and reinforced mounting hardware. These figures inform safe equipment stacking, dynamic loads during door movement, and long-term structural integrity in high-density IT deployments.
Yes. Its vented front and rear doors promote passive cooling, and the 47U interior (600 mm wide, 2,200 mm tall, 1,200 mm deep) accommodates a wide range of servers, switches, and storage devices. The dynamic VX IT mounting angles support flexible configurations, while the roof cable entry enables tidy, scalable cabling in data centers and telecom rooms.
Key data-driven standards include UL 2416 compatibility for load performance, ETIM 9 EC002499, and ECLASS 8.0 27180207 for procurement and maintenance alignment. The enclosure’s coating and finish specifications, along with its documented dimensions and weights, support consistent sourcing, installation, and servicing across global markets.
The VX 5315.818’s modular mounting angles, front/rear venting, and accessible doors reduce maintenance time and service interruptions. Its durable finish and high load capacity improve longevity, lowering replacement intervals and spare-part costs. While the initial investment is higher, the cabinet’s scalable design and efficient passive cooling contribute to lower energy usage and faster ROI in growing IT environments.
