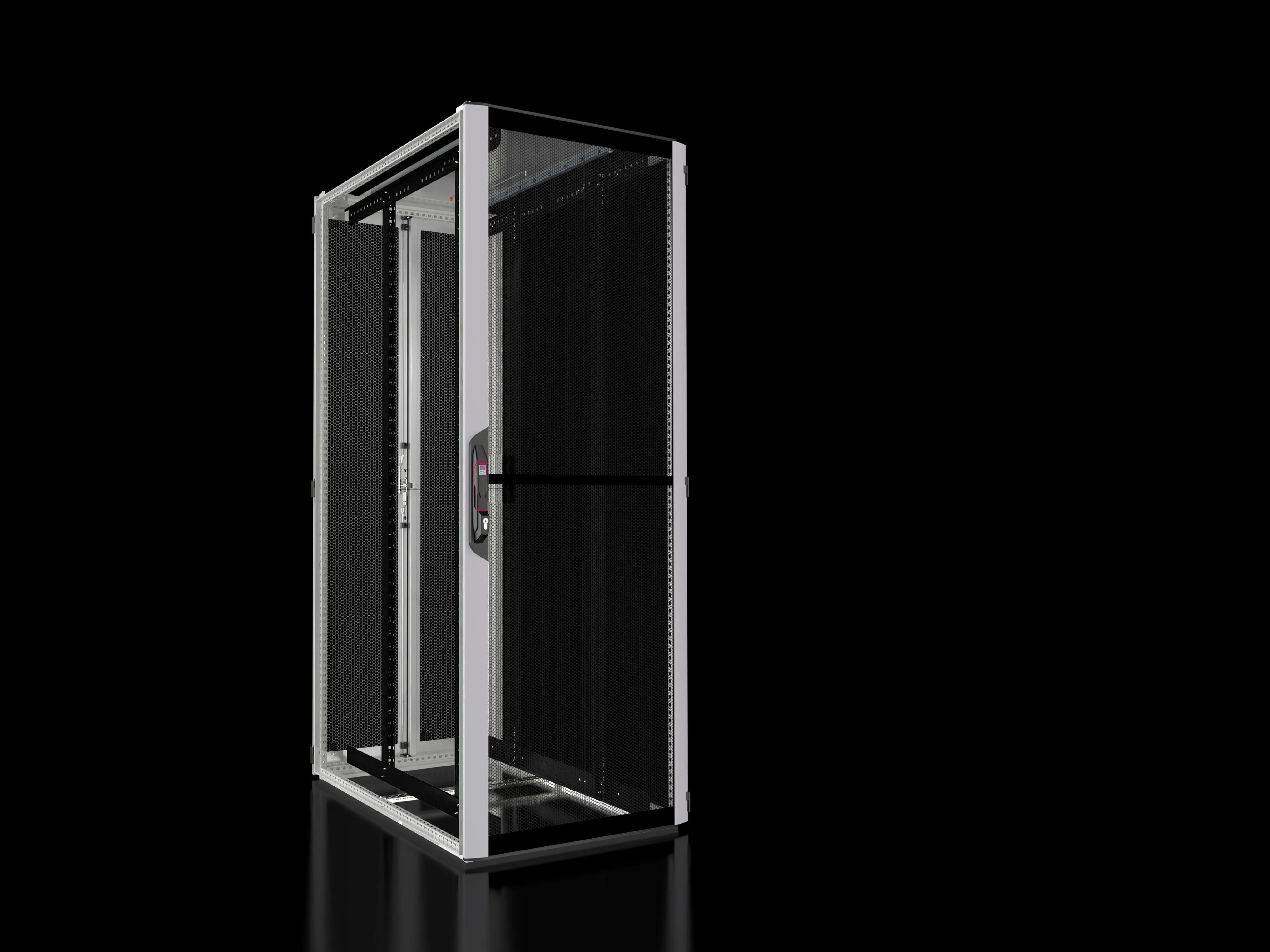

Rittal VX 5316.116 IT Enclosure - 47U, Vented
Part Number: 5316116
Quick Summary
Rittal VX 5316.116 IT enclosure provides secure, vented 19" server housing for data centers and industrial IT rooms. Engineers often confront heat buildup, cramped cable management, and the challenge of scalable enclosures in limited spaces. Certification details are not listed in this dataset, so verify CE marking, IP rating, and safety approvals with the manufacturer; industry practice prioritizes CE compliance and appropriate ingress protection. The enclosure design supports modular 19" deployments, front and rear access, and passive cooling options, delivering reliable IT infrastructure with lower operating costs.
Product Information
Extended Description
5316116 Rittal: VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 800 x 2200 x 1200 mm, 47 U
Article number
VX 5316.116
Design
Standard | Vented | with 482.6 mm (19") mounting angles
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated) | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate | Sheet steel rear door, vented, vertically divided, 180° hinges
Dimensions
Width: 800 mm | Height: 2,200 mm | Depth: 1,200 mm
Units
47 U
Units
47 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 330 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
720 mm
482.6 mm (19") attachment
screw-fastened onto depth stays, top and bottom, and to the support rail on the frame structure
Design
Standard
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
123 kg
PCF per pack (cradle-to-gate)
303 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945388
ETIM 8
EC002499
ETIM 7.0
EC011217
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 800 x 2200 x 1200 mm, 47 U
Feature: 19" mounting angles, front and rear – Business Impact – simplifies installation and device alignment in dense rack environments; Application – data centers and control rooms requiring symmetric access. Feature: Ventilated front and rear doors – Business Impact – enhances convection cooling, reducing hot spots and fan load; Application – high-heat networks and equipment cabinets in climate-controlled rooms. Feature: 47 U height with 800 mm width and 1200 mm depth – Business Impact – maximizes rack density while preserving serviceability; Application – scalable IT and automation cabinet deployments with room for growth. Feature: 482.6 mm (19") mounting rails – Business Impact – standardizes equipment fit across models, lowering integration time; Application – mixed vendor 19" equipment in one enclosure. Feature: Roof plate prepared for fan mounting and spacers for passive cooling – Business Impact – enables cost-effective cooling upgrades without structural changes; Application – energy-conscious facilities aiming to minimize fan energy. Feature: Load capacity 15,000 N / max 12,000 N (static) – Business Impact – supports robust, dense hardware configurations; Application – heavy compute and networking gear or power distribution units. Feature: Durable materials (sheet steel frame with aluminium front) and powder-coated/reinforced finish – Business Impact – long service life, reduced maintenance, and reliable protection; Application – harsh industrial environments and climate-controlled data centers. Feature: Comprehensive hardware pack (mounting screws, spacers, vented doors) – Business Impact – accelerates installation and reduces accessory sourcing; Application – turnkey deployments with predictable lead times.
Get a Quick Quote for a Rittal 5316116
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5316116?
Enquire Now
FAQs
Install using the 482.6 mm (19") mounting angles, front and rear. Attach the rails to the enclosure frame, align with the rack’s mounting points, and secure with the provided screws (12 x 482.6 mm fasteners). Use the 50 mm spacers when a roof fan mounting plate is needed for passive cooling. Ensure balanced weight distribution and verify clearance for 47 U of equipment.
The enclosure supports 47 U of equipment with dimensions 800 mm wide, 2,200 mm high, and 1,200 mm deep. It is vented front and rear, enabling convection cooling, with a load capacity of up to 15,000 N and a maximum static load of 12,000 N. It ships with necessary mounting hardware and is designed for front/rear access and passive cooling configurations.
Yes. Its 19" mounting rails and vented doors suit both data center IT cabinets and industrial control rooms. The 47 U height supports dense equipment layouts, while front/rear access simplifies servicing. The roof plate preparation and spacers enable passive cooling upgrades, reducing energy use. The robust frame and lockable doors help protect sensitive equipment in demanding environments.
The provided data lists ETIM 8 EC002499, ETIM 7.0 EC011217, and ECLASS 8.0 27180207, along with the product EAN 4028177945388. Explicit CE, IP, or UL certifications are not shown in the dataset; verify with Rittal or the supplier for current compliance markings. Use these standards as a baseline for interoperability and maintenance in regulated environments.
The enclosure combines durable sheet steel with aluminium front, modular 19" mounting, and front/rear access, enabling extended service life and simplified upgrades. Passive cooling options reduce fan energy, while standardized 47 U capacity supports future growth without casing changes. When paired with existing IT gear, it lowers deployment time, maintenance costs, and overall risk for data centers and automation facilities.
