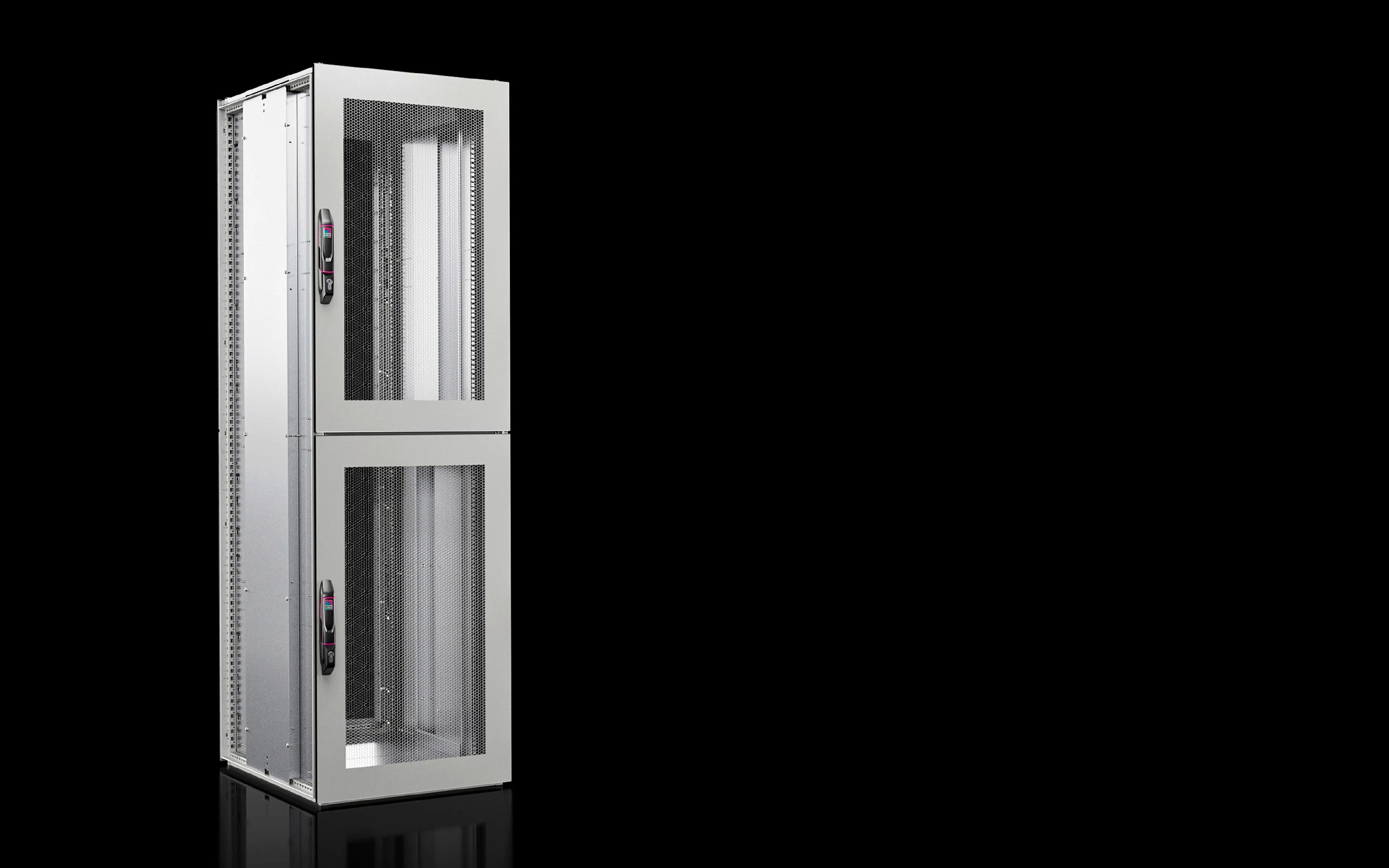

Rittal VX 5316.175 VX IT Compartment Rack - 2x23U, vented
Part Number: 5316175
Quick Summary
Rittal VX 5316.175 VX IT Compartment Rack is a dual‑compartment enclosure that enables independent cable routing for IT and process controls within a single shared rack. This design addresses the common pain point of cross‑cabling and restricted access when equipment shares a single enclosure. While certification details aren’t all listed here, the enclosure aligns with established industrial safety expectations and features vented doors and robust sheet‑steel construction to support compliant, durable installations. Built for scalable IT/OT integration, it supports standard 19" equipment with configurable mounting angles and clear separation between compartments, delivering tangible business value through modularity, reliability, and easier serviceability.
Product Information
Extended Description
5316175 Rittal: VX IT Compartment Rack, vented, 19" mounting angles front and rear, 2 compartments, 2 x 23 U, WHD: 800x2200x1200 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Article number
VX 5316.175
Product description
Smart enclosure solution for the integration of different applications into a central, shared enclosure, for different user groups with separate access control. Physically fully independent installations with similarly independent cabling. Rack divided into 2 installation compartments, enabling individual configuration of each single compartment and secure accommodation of your IT infrastructure.
Benefits
Enclosure pre-configured with 482.6 mm (19") mounting angles at the front and rear of each compartment, adjustable individually and independently of each other
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof plate: Sheet steel, 1.5 mm | Gland plate: Sheet steel, 1.0 mm | Front and rear door: Sheet steel, 1.5 mm | Mounting angles: Sheet steel, 2.5 mm
General colour
RAL 7035
Colour
Enclosure frame and panels: RAL 7035 | 19" mounting angles, hinges and handles spray-finished in RAL 9005
Supply includes
VX IT compartment rack, with two independent installation compartments | Each compartment with 482.6 mm (19") mounting angles, front and rear, screwed to the integrated dividers on the left and right | 2 sheet steel doors, vented, front and rear | Gland plate divided in the centre, pre-configured across the entire rack depth | Comfort handle for proifile half-cylinders with security lock 3524 E | Including potential equalisation, prepared for the attachment of earthing straps | Two 482.6 mm (19") mounting angles front and rear per compartment, depth-variable, front angles with all-round integrated air baffles | 4 keys
Dimensions
Width: 800 mm | Height: 2,200 mm | Depth: 1,200 mm
Distance between levels as delivered
740 mm
Number front doors
2
Number back doors
2
482.6 mm (19") attachment
2 x 23 U
Installation of PDU vertically in the rear area
Vertical PDU with IEC C20 connection (max. length of PDU 1000 mm), Model No. 7979.117/.118/.217/.317/.417
Design
Compartment Rack, 2 x 23 U
Roof design
One-piece roof plate, with cable entry on both sides in the centre part of the roof
Design doors
Door opening angle max. 130°
Rear door design
divided into two, vented
Front door design
divided into two, vented
Mounting angle design
19" mounting angles in the VX IT Compartment Rack
Base design
Base frame with pull-out, two-part solid gland plate pre-assembled
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
EAN
4028177950115
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
VX IT Compartment Rack, vented, 19" mounting angles front and rear, 2 compartments, 2 x 23 U, WHD: 800x2200x1200 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Feature → Business Impact → Application: Independent two‑compartment design enables separate cable routing and access control for IT hardware and process‑control equipment, reducing cross‑talk and downtime in automation environments. This supports faster maintenance windows and clearer security boundaries in mixed IT/OT installations; ideal for data/edge computing cabinets used in manufacturing lines. Feature → Business Impact → Application: 482.6 mm (19") mounting angles front and rear per compartment, independently adjustable, simplify server, switch, and PLC mounting while preserving airflow and serviceability; engineers can configure racks for mixed equipment without reworking cabinet frames, useful in control rooms and machine bays. Feature → Business Impact → Application: Ventilated front and rear doors plus a center gland plate provide superior thermal management and neat cable management, lowering cooling costs and improving fault isolation in high‑density enclosures. Feature → Business Impact → Application: Vertical rear PDU option (IEC C20, up to 1000 mm) supports streamlined power distribution for IT and automation devices, reducing cabling clutter and improving electrical safety in line control cabinets. Feature → Business Impact → Application: Durable sheet steel construction with RAL 7035 frame/panels and RAL 9005 interiors offers long‑term corrosion resistance and easy integration into existing plant color schemes, aiding standardization across multiple enclosures in a plant floor or data hall. Feature → Business Impact → Application: Two independent compartments with 2x23U each and 800x2200x1200 mm WHD fits most 19" equipment, enabling future expansion without additional cabinet purchases, making it a cost‑effective solution for growing industrial installations.
Get a Quick Quote for a Rittal 5316175
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5316175?
Enquire Now
FAQs
Yes. Each compartment includes 482.6 mm (19") mounting angles front and rear, pre‑configured to accept standard 19" equipment. The two compartments use integrated dividers and allow independent mounting rails per side, enabling clean, organized layouts for servers, switches, and PLCs while preserving service accessibility.
The rack provides two independent 23U compartments with vented doors, ensuring solid cooling pathways and airflow. A center gland plate supports centralized cabling, while the roof entry and adjustable depth accommodate varied cable types. Vertical rear PDU option (IEC C20, up to 1000 mm) streamlines power distribution for IT and automation equipment.
Absolutely. The VX IT Compartment Rack is designed for dual‑space operation, enabling separate access control and cabling for IT gear and process/automation hardware within a single enclosure. This separation reduces cross‑talk, improves security, and streamlines maintenance—ideal for machines, PLCs, and industrial servers deployed in the same cabinet.
The data includes ETIM classifications (EC002499) and ECLASS (27180207), indicating alignment with industry data standards. While explicit CE or IP certification marks aren’t listed here, the enclosure’s robust sheet‑steel construction, vented doors, and modular design reflect typical compliance expectations for industrial enclosures used in controlled environments.
Independent compartments simplify updates and replacements, reducing downtime during service. The vented doors and standardized 19" rails improve airflow and mix IT/OT equipment without extensive rework, lowering total cost of ownership. The ready‑configured gland plate and PDU options further streamline installation, enabling faster ROI in projects with evolving equipment layouts.
