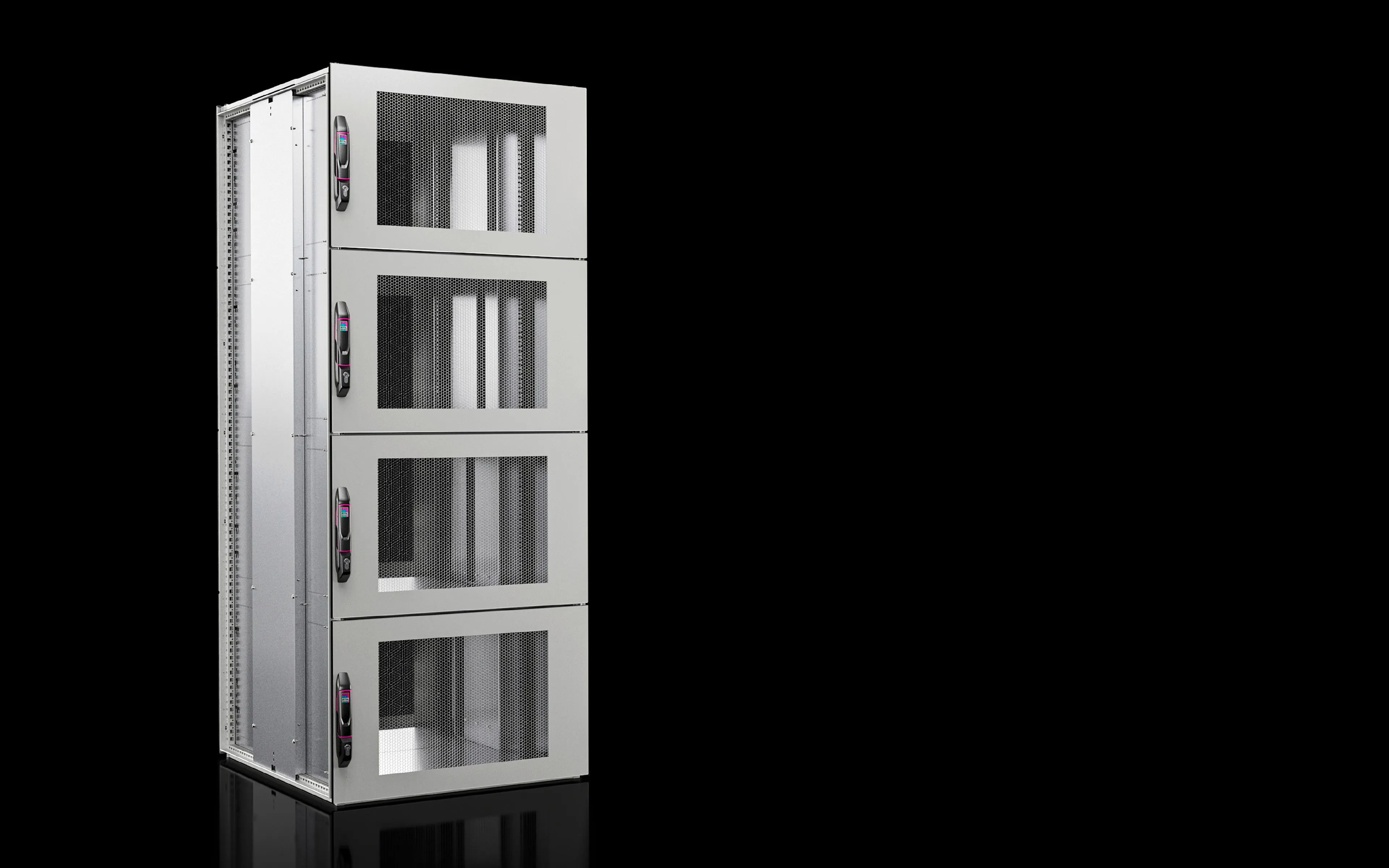

Rittal VX 5316.185 VX IT Compartment Rack - 4 Compartments
Part Number: 5316185
Quick Summary
The VX IT Compartment Rack from Rittal accommodates IT and instrumentation in a single, secure enclosure. Designers and technicians often wrestle with cross-cabinet cabling and inconsistent access control across multiple enclosures. In this class of enclosures, CE marking is essential for electrical safety, and industry classifications such as ETIM EC002499 and ECLASS 27180207 help streamline procurement and compliance. The VX 5316.185 delivers four independent compartments with shared, adaptable mounting, improving scalability and reducing installation time. For IT/OT deployments, the combination of vented doors, standardized 19" mounting angles, and configurable cable routing translates into measurable efficiency gains and lower risk.
Product Information
Extended Description
5316185 Rittal: VX IT Compartment Rack, vented, 4 compartments, 19" mounting angles front and rear, 4 x 11 U, WHD: 800x2200x1200 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Article number
VX 5316.185
Product description
Smart enclosure solution for the integration of different applications into a central, shared enclosure, for different user groups with separate access control. Physically fully independent installations with similarly independent cabling. Rack divided into 4 installation compartments, enabling individual configuration of each single compartment and secure accommodation of your IT infrastructure.
Benefits
Enclosure pre-configured with 482.6 mm (19") mounting angles at the front and rear of each compartment, adjustable individually and independently of each other
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof plate: Sheet steel, 1.5 mm | Gland plate: Sheet steel, 1.0 mm | Front and rear door: Sheet steel, 1.5 mm | Mounting angles: Sheet steel, 2.5 mm
General colour
RAL 7035
Colour
Enclosure frame and panels: RAL 7035 | 19" mounting angles, hinges and handles spray-finished in RAL 9005
Supply includes
VX IT compartment rack, with four independent installation compartments | Each compartment with 482.6 mm (19") mounting angles, front and rear, screwed to the integrated dividers on the left and right | Gland plate divided in the centre, pre-configured across the entire rack depth | 4 sheet steel doors, vented, front and rear | Comfort handle for proifile half-cylinders with security lock 3524 E | Including potential equalisation, prepared for the attachment of earthing straps | Two 482.6 mm (19") mounting angles front and rear per compartment, depth-variable, front angles with all-round integrated air baffles | 8 keys
Dimensions
Width: 800 mm | Height: 2,200 mm | Depth: 1,200 mm
Distance between levels as delivered
740 mm
Number front doors
4
Number back doors
4
482.6 mm (19") attachment
4 x 11 U
Design
Compartment Rack, 4 x 11 U
Roof design
One-piece roof plate, with cable entry on both sides in the centre part of the roof
Design doors
Door opening angle max. 130°
Rear door design
divided into four, vented
Front door design
divided into four, vented
Mounting angle design
19" mounting angles in the VX IT Compartment Rack
Base design
Base frame with pull-out, two-part solid gland plate pre-assembled
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
EAN
4028177950122
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT Compartment Rack, vented, 4 compartments, 19" mounting angles front and rear, 4 x 11 U, WHD: 800x2200x1200 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Feature → Business Impact → Application: Four independent compartments with 482.6 mm (19") mounting angles front and rear, 4 x 11 U per compartment enable physically separate configurations and secure, scalable deployments; reduces cross-talk and simplifies maintenance in mixed IT/OT environments. Application: data centers, factory automation, control cabinets. Feature → Business Impact → Application: Vented front and rear doors for each compartment with a door opening angle up to 130° improves airflow and access for service and upgrades; supports higher component density while maintaining cooling efficiency. Application: IT rooms and industrial cabinets. Feature → Business Impact → Application: One-piece roof plate with central cable entry and a centrally divided gland plate streamlines routing for multi-domain equipment; reduces installation time and cable stress. Application: data/telecom racks and automation enclosures. Feature → Business Impact → Application: Gland plate divided in the centre, base frame with pull-out, and pre-assembled gland plates provide easy serviceability, grounding readiness, and quick reconfiguration; minimizes downtime during changes. Application: heterogeneous IT/OT systems with frequent maintenance. Feature → Business Impact → Application: Enclosure frame and panels finished in RAL 7035 with interior RAL 9005 and a security lock with 8 keys ensures consistent aesthetics, clear access control, and compliant security across zones. Application: corporate facilities and regulated environments. Feature → Business Impact → Application: Four front doors and four rear doors with standardized 19" mounting angles front and rear enable modular expansion and straightforward cabling; reduces downtime during changes and upgrades. Application: scalable data/automation cabinets.
Get a Quick Quote for a Rittal 5316185
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5316185?
Enquire Now
FAQs
Install requires positioning the four independent compartments with their front and rear 19" mounting angles, attaching the central gland plate, and securing each compartment with the included ignition of earthing straps. Route cables through the roof entry and gland plates, then mount devices in the 11U levels per compartment. The process is designed for rapid deployment with pre-configured components and standardized hardware.
It provides four independently configurable compartments, each with 11U mounting space, vented doors for airflow, and centralized gland plates to simplify cabling. The design supports secure access control and modular growth, reducing risk of cross-talk and downtime in mixed IT and automation applications.
The rack uses a one-piece roof plate with central cable entry, divided gland plates, and integrated air baffles on the front mounting angles. This configuration improves airflow, minimizes cabling congestion, and allows different user groups to route cables independently while maintaining system integrity.
The model aligns with industry classifications such as ETIM EC002499 and ECLASS 27180207, and follows standard enclosure practices that support CE considerations for electrical safety and integration within regulated environments. Its modular design further aids in compliant documentation and procurement processes.
Benefits come from reduced deployment time due to pre-configured mounting angles and gland plates, easier maintenance with pull-out base frames, and improved uptime from independent compartments that prevent cascading outages. The 4x11U per compartment layout also enables higher density within a single enclosure, lowering footprint and total cost of ownership.
