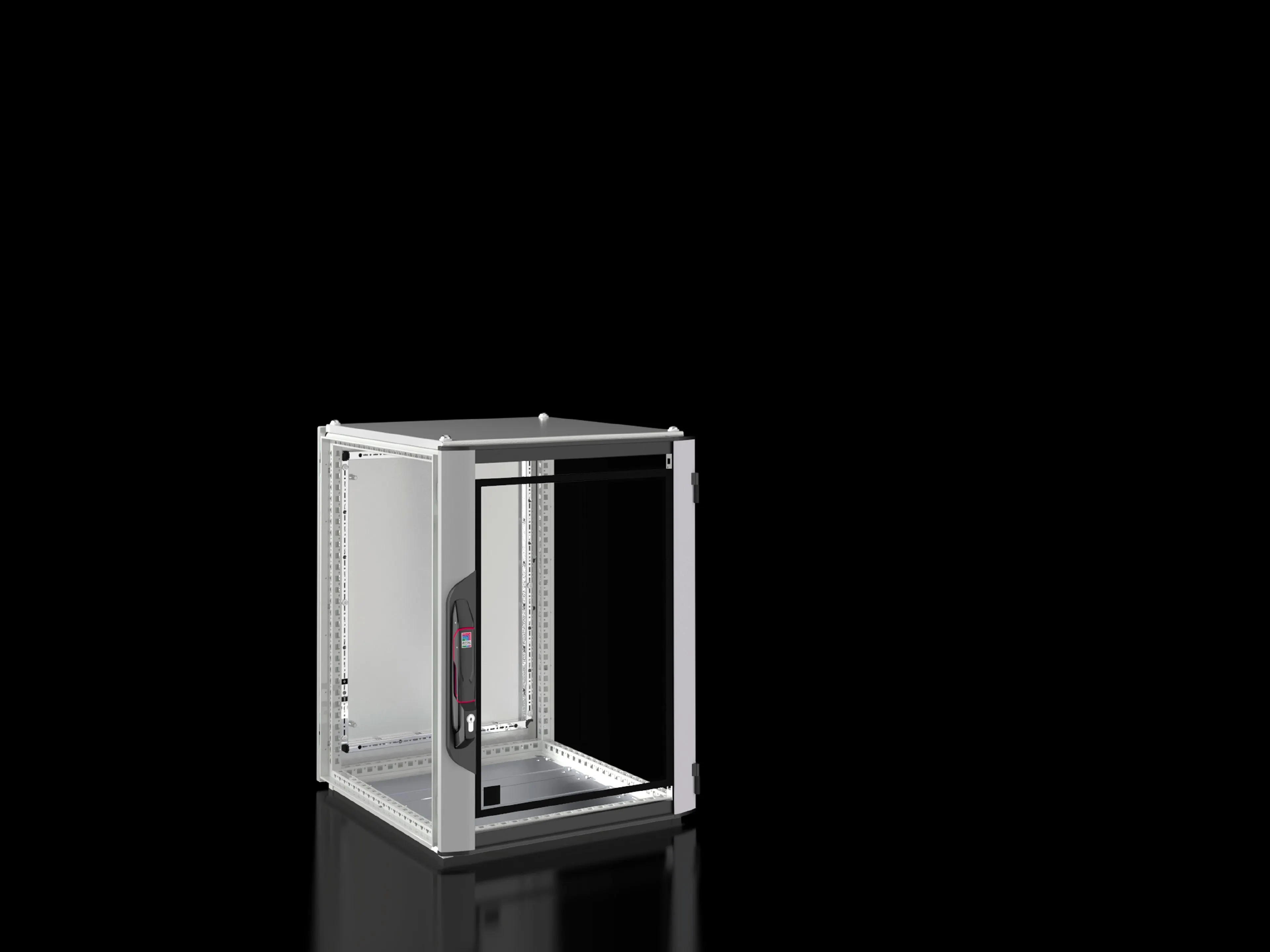

Rittal VX 5325.190 Enclosure - IP55 Protection Rating
Part Number: 5325190
Quick Summary
Rittal VX 5325.190 Enclosure provides direct climate control for industrial control panels. Maintenance teams struggle to balance cooling, accessibility, and enclosure integrity in tight spaces. This VX IT unit features IP55 protection and IK08 impact resistance, with a glazed door and CE-oriented European installation considerations. The cabinet’s 600x800x600 mm footprint and 15 U capacity enable scalable IT hardware while simplifying installation, service, and expansion. By combining rugged protection with flexible mounting and cable management, it supports ongoing efficiency, regulatory alignment, and reduced total cost of ownership.
Product Information
Extended Description
5325190 Rittal: VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 800 x 600 mm, 15 U, IP 55
Article number
VX 5325.190
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RALÂ 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Sheet steel rear door, solid, one-piece, 130° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Roof plate, one-piece, solid | Base tray with gland plate, multi-piece, solid | Baying seal and sealing kit for gland plates (supplied loose) | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet
Dimensions
Width:Â 600 mm | Height:Â 800 mm | Depth:Â 600 mm
Units
15 U
Units
15 U
Roof design
one-piece, solid
Rear door design
Sheet steel door, solid, one-piece, 130° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
without
Base design
Base tray with gland plate, multi-piece, solid
Mounting angles position
without
Protection category to IEC 60 529
IP 55 only in conjunction with baying seal or screw-fastened side panels
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
44.5 kg
PCF per pack (cradle-to-gate)
109.6Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945425
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 800 x 600 mm, 15 U, IP 55Â
Feature: Direct climate control integrated VX IT concept for a compact 600x800x600 enclosure. Business Impact: Maintains stable operating temperatures for sensitive IT and control hardware, reducing thermal throttling and downtime. Application: Ideal for factory floor IT cabinets and control panels where space is at a premium. The design supports efficient cooling with minimal power waste, helping meet energy-use targets while preserving equipment life. Feature: IP55 protection with baying seal and IK08 impact resistance. Business Impact: Enables reliable operation in dusty, humid, and high-traffic areas, lowering maintenance cycles and replacement costs. Application: Outdoor-rated or harsh indoor environments where enclosure integrity is critical to equipment reliability. Feature: Durable materials and finish including sheet steel frame and powder-coated rear, anodised front door. Business Impact: Extends service life in corrosive environments and simplifies cleaning, reducing total-cost-of-ownership. Application: Industrial environments with exposure to dust, pollutants, or chemical cleaners. Feature: Flexible interior and mounting options with 15 U capacity and 19'' compatibility. Business Impact: Supports scalable configurations and rapid deployment of standard IT gear, minimizing project lead times. Application: When expanding device racks or adding new controllers, rails and fasteners provided ease installation. Feature: Comprehensive hardware kit and base tray with gland plate. Business Impact: Streamlines wiring, cable management, and seal integrity, reducing installation time and leak risks. Application: For clean and secure glanding during complex automation projects. Feature: Sustainability and lifecycle data including 44.5 kg weight and 109.6 kg CO2e PCF. Business Impact: Facilitates sustainability reporting and responsible procurement, aligning with environmental objectives. Application: For project teams tracking cradle-to-gate impacts while selecting robust enclosures.
Get a Quick Quote for a Rittal 5325190
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5325190?
Enquire Now
FAQs
The VX 5325.190 can be supplied without a 482.6 mm interior installation, allowing custom configuration. It includes 12x 482.6 mm fasteners and a base tray with gland plate to support later addition of 19-inch rails when needed. This enables flexible deployment for evolving IT and control hardware layouts while preserving rigid enclosure integrity.
The enclosure provides IP55 protection (with baying seal when required) and IK08 impact resistance, ensuring reliable operation in dusty, humid, or mechanically busy environments. These ratings support use in moderately harsh industrial spaces and facilitate compliant installation in European contexts when paired with proper sealing and installation practices.
External dimensions are 600 mm width, 800 mm height, and 600 mm depth, with a 15 U internal capacity. The cabinet weighs 44.5 kg and is designed to accommodate 19-inch equipment via standard rails. This combination supports compact yet high-density installations for PLCs, drives, and IT hardware.
The frame is sheet steel with a powder-coated rear and roof, while the front door uses aluminum that’s anodised or spray-finished. The glazed door adds visibility and serviceability. These material choices deliver durability, corrosion resistance, and easier maintenance, reducing long-term repair and repaint costs in challenging industrial settings.
Included accessories cover mounting and sealing needs: base tray with gland plate, sealing kit, 12x 482.6 mm fasteners, 25 conductive screws, and a comprehensive bolt-on hardware set. The glazing door features 180° hinges, while the rear door uses 130° hinges. This ready-to-assemble kit minimizes field work and ensures robust gasketed enclosure integrity.
