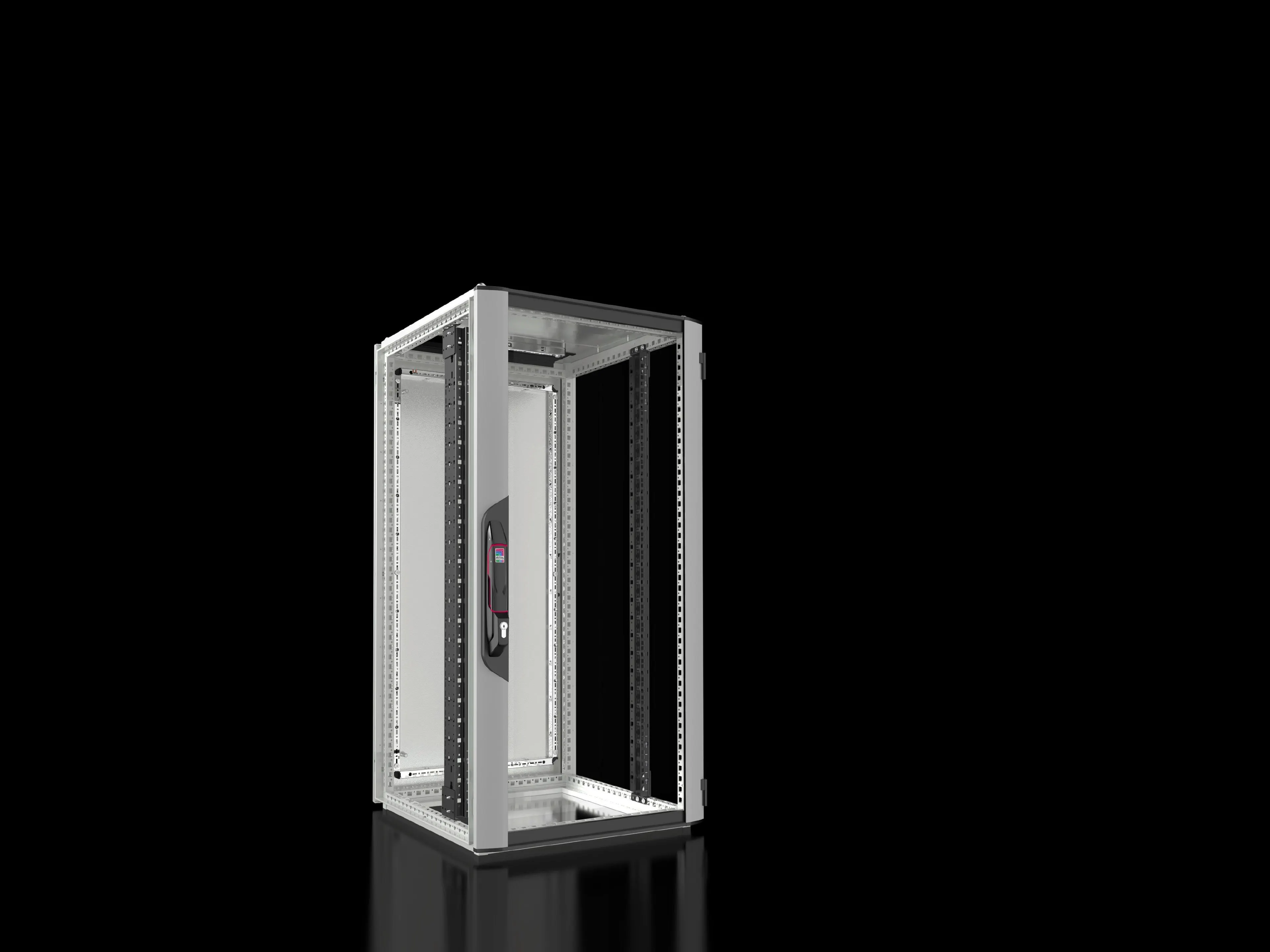

Rittal VX 5326.121 Enclosure - Front Glazed Door, 24U
Part Number: 5326121
Quick Summary
VX IT enclosure securely houses critical IT hardware in harsh industrial environments. Engineers struggle to balance direct climate control, cable routing, and reliable front-access maintenance in compact data zones. This VX 5326.121 variant supports direct climate control with a front glazed aluminium door, 19-inch mounting angles, and 24 U of mounting space, delivering scalable IT deployment. Built to rugged standards with IK08 impact resistance, frame primed and powder-coated exterior, and durable interior finishes, it withstands demanding factory floors. The unit ships with spacers for passive cooling and a front/rear access design that simplifies installation and service. In practice, this translates to increased uptime and lower operating costs.
Product Information
Extended Description
5326121 Rittal: VX IT, 19" mounting angles, standard, front, glazed door, WHD: 600 x 1200 x 600 mm, 24 U
Article number
VX 5326.121
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RALÂ 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RALÂ 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with horizontal cable entry at the rear and prepared for fan mounting plate | Sheet steel rear door, solid, one-piece, 130° hinges
Dimensions
Width:Â 600 mm | Height:Â 1,200 mm | Depth:Â 600 mm
Units
24 U
Units
24 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 435 mm
Mounting position of the 482.6 mm (19") level
front
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
multi-piece, with horizontal cable entry at the rear and prepared for fan mounting plate
Rear door design
Sheet steel door, solid, one-piece, 130° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front
Mounting angles position
482.6 mm (19") level, front
Load capacity
7,500 N
Max. load capacity (static) per enclosure to UL 2416
6,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
51.8 kg
PCF per pack (cradle-to-gate)
127.6Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945432
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front, glazed door, WHD: 600 x 1200 x 600 mm, 24 U
Feature → Business Impact → Application: 24 U of mounting space in a 600x1200x600 mm footprint enables dense IT hardware deployment, reducing rack footprint and simplifying cable management for data-critical lines on the plant floor. This translates to lower ceiling height constraints and faster rack densification in automation projects. Feature → 19-inch mounting angles front placement → Installation efficiency and scalable upgrade paths: standard 482.6 mm (19-inch) mounting angles allow seamless integration of standard IT equipment and future expansion without rework, ideal for machine builders and data centers supporting edge computing in production lines. Feature → Front glazed aluminium door → Visual access and security: glazed front door provides easy status checks while maintaining protection, reducing downtime for routine inspections and minimizing operator disruption. Feature → Robust materials and IK08 rating → Reliability and longevity: sheet steel with aluminium components and reinforced finishes resist industrial wear, improving mean time between failures (MTBF) and lowering replacement costs. Feature → Passive cooling readiness and roof plate with fan mounting prep → Thermal performance and energy efficiency: spacers and mounting provisions support passive cooling and future fan upgrades, helping meet climate-control targets and reduce energy use. Feature → Comprehensive packaging and accessories → Fast, correct installation: included mounting angles, spacers, screws, and IPPC pallet streamline site readiness, minimize waste, and support consistent field assembly across multiple units.
Get a Quick Quote for a Rittal 5326121
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5326121?
Enquire Now
FAQs
The VX 5326.121 uses standard 482.6 mm (19") mounting angles, front-mounted, to align with common 19" equipment racks. With 24 U of space, it supports dense IT hardware while preserving accessible cable routing and cooling paths. When retrofitting, verify ceiling height and ensure rear cable entry space, roof plate clearance, and fan mounting clearance are available for optimal airflow.
The enclosure provides a load capacity of up to 7,500 N, with a maximum static load of 6,000 N per enclosure per UL 2416 guidelines. This ensures safe support for heavy IT hardware and power distribution units inside the cabinet, maintaining structural integrity under operational loads and preventing sag or misalignment over time.
Yes. VX IT enclosures are designed for direct climate control with features such as a glazed front door, appropriate sealing, and compatibility with passive cooling spacers and a roof plate prepared for a fan mounting plate. This supports reliable thermal management for sensitive IT gear in manufacturing floors, reducing overheating risks and improving uptime.
The enclosure carries IK08 impact resistance, indicating robust mechanical protection. It is classified in ETIM as EC002499 and in ECLASS 8.0 as 27180207, aiding procurement systems and interoperability with downstream components. These identifiers support consistent specification, stocking, and integration across industrial supply chains.
Benefits include improved uptime due to reliable climate control and front-access maintenance, reduced footprint from high-density 24U deployment, and easier future upgrades thanks to standard 19" mounting. Sustainability metrics such as cradle-to-gate PCF (127.6 kg CO2 eq for the pack) help inform environmental and cost considerations, contributing to lower total cost of ownership over the cabinet’s lifecycle.
