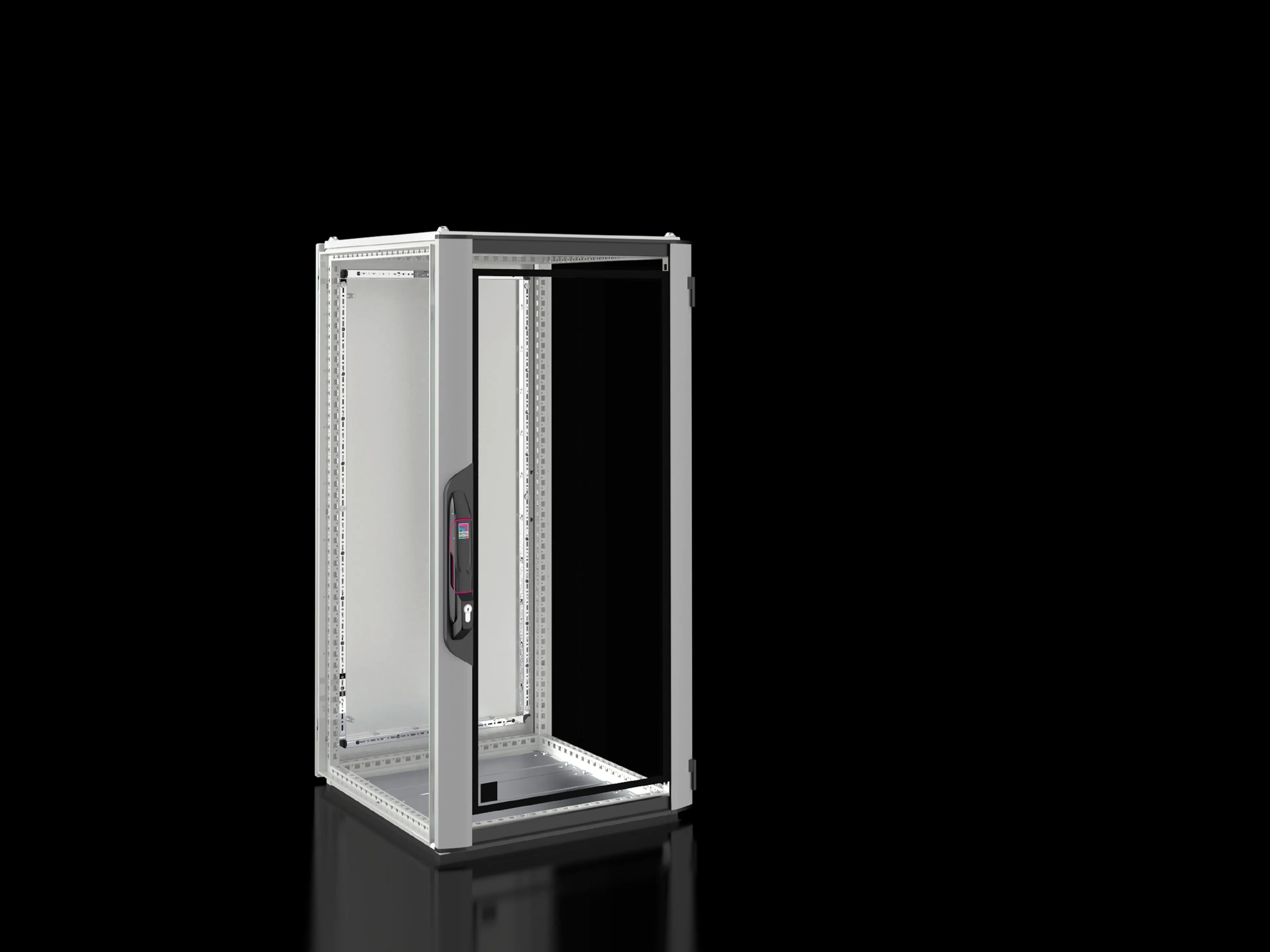

Rittal VX 5326.190 IT Cabinet - IP55, 24U, Glazed Front
Part Number: 5326190
Quick Summary
Rittal VX IT 5326.190 cabinet delivers direct climate control for compact IT and control panels in industrial enclosures. It addresses the common challenge of maintaining reliable temperature, humidity control, and IP-rated protection in harsh environments. Key protections include IP55 protection in conjunction with the baying seal, and IK08 impact resistance, supported by a robust powder-coated frame. As a modular 24U enclosure with 19 inch mounting capability, it enables scalable configurations while reducing wiring time and maintenance costs.
Product Information
Extended Description
5326190 Rittal: VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 1200 x 600 mm, 24 U, IP 55
Article number
VX 5326.190
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Sheet steel rear door, solid, one-piece, 130° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Roof plate, one-piece, solid | Base tray with gland plate, multi-piece, solid | Baying seal and sealing kit for gland plates (supplied loose) | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet
Dimensions
Width: 600 mm | Height: 1,200 mm | Depth: 600 mm
Units
24 U
Units
24 U
Roof design
one-piece, solid
Rear door design
Sheet steel door, solid, one-piece, 130° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
without
Base design
Base tray with gland plate, multi-piece, solid
Mounting angles position
without
Protection category to IEC 60 529
IP 55 only in conjunction with baying seal or screw-fastened side panels
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
50.8 kg
PCF per pack (cradle-to-gate)
125.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945463
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 1200 x 600 mm, 24 U, IP 55
Durable construction and materials deliver long service life in harsh environments; sheet steel with aluminium components and a robust frame reduce corrosion risk and provide reliable support for mounted equipment. The enclosure is designed for direct climate control, improving thermal management and reducing equipment downtime, which translates to higher overall equipment effectiveness (OEE) in automated lines. With no interior installation by default, VX IT 5326.190 supports rapid onboarding of bespoke control and IT hardware using standard 19" mounting rails, cutting commissioning time and enabling flexible, scalable configurations. Sealing and protection are reinforced by baying seals and gland plates, ensuring IP55 ingress protection when properly sealed, which minimizes sensitive dust and water intrusion in manufacturing settings. Security is enhanced by front and rear locking mechanisms and sturdy hinges, allowing safe maintenance without compromising accessibility. The enclosure also aligns with industry standards such as IK08 and IP55, providing traceable compliance and predictable performance in automation environments.
Get a Quick Quote for a Rittal 5326190
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5326190?
Enquire Now
FAQs
Yes. VX 5326.190 provides 24U of space with standard 19" mounting rails. It ships without interior installation, and includes 12 x 482.6 mm fasteners and 25 multi-tooth screws to accommodate customized equipment layouts. This enables quick integration of PLCs, drives, and I/O modules while preserving cable management and grounding through the base tray and gland plate.
The cabinet is designed for direct climate control and offers IP55 protection (when baying seal or appropriate side panels are used) and IK08 impact resistance. Dimensions are 600 mm width x 1200 mm height x 600 mm depth with 24 U of internal space, providing robust shielding for heat-sensitive automation components.
IP55 protection and durable frame make it suitable for harsh indoor factory environments and sheltered outdoor applications with appropriate sealing. For fully exposed outdoor mounting, additional environmental protection or enclosure accessories should be considered to maintain ingress protection and thermal performance.
Key protections include IP55 and IK08. The enclosure is specified with EAN 4028177945463 and model VX 5326.190, and aligns with ETIM EC002499 and ECLASS 27180207 classifications. Note that IP55 is achieved in conjunction with baying seal or side panels to ensure proper sealing.
Using VX 5326.190 can reduce downtime through improved thermal management and ingress protection, aiding consistent equipment performance. While price varies by configuration, the enclosure’s sturdy construction, secure access, and 19" mounting compatibility streamline installation and future upgrades, contributing to lower maintenance costs and faster return on investment over the life of the automation system.
