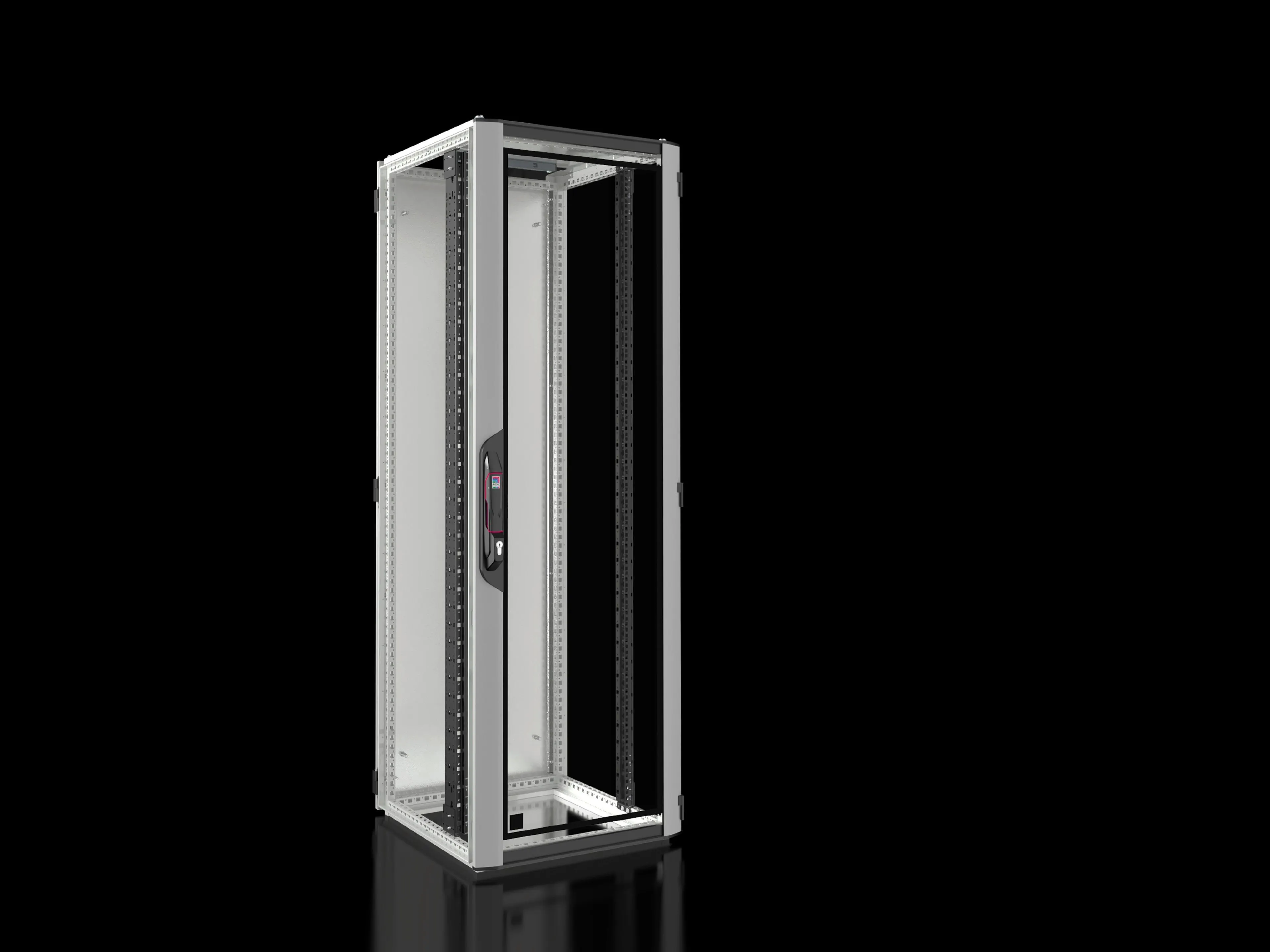

Rittal VX 5327.121 IT Enclosure - IK08, 38U, Front Glazed
Part Number: 5327121
Quick Summary
Rittal VX 5327.121 IT enclosure provides secure, climate-controlled IT housing for 19-inch equipment in harsh industrial environments. Engineers often struggle with space for cooling, cable routing, and front-access maintenance in dusty factories, especially when integrating active cooling or fan modules. Key standards include IK08 mechanical robustness and UL 2416 load certification, underpinning long service life and predictable performance under vibration and shock. Designed for easy installation, this enclosure combines front glazed aluminium doors with standard 19-inch mounting angles, enabling rapid deployment, simpler cable management, and scalable IT infrastructure.
Product Information
Extended Description
5327121 Rittal: VX IT, 19" mounting angles, standard, front, glazed door, WHD: 600 x 1800 x 600 mm, 38 U
Article number
VX 5327.121
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with horizontal cable entry at the rear and prepared for fan mounting plate | Sheet steel rear door, solid, vertically divided, 180° hinges
Dimensions
Width: 600 mm | Height: 1,800 mm | Depth: 600 mm
Units
38 U
Units
38 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 435 mm
Mounting position of the 482.6 mm (19") level
front
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
multi-piece, with horizontal cable entry at the rear and prepared for fan mounting plate
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front
Mounting angles position
482.6 mm (19") level, front
Load capacity
7,500 N
Max. load capacity (static) per enclosure to UL 2416
6,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
66.6 kg
PCF per pack (cradle-to-gate)
164.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945470
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front, glazed door, WHD: 600 x 1800 x 600 mm, 38 U
Feature – 38U capacity and 600 x 1800 x 600 mm footprint provides ample space for servers, switches, and controllers while preserving a compact footprint; Business Impact – reduces hardware sprawl, simplifies cable routing, and improves air flow management in data centers or industrial automation rooms; Application – ideal for medium to large IT deployments in manufacturing facilities. Feature – 482.6 mm (19 inch) mounting angles, front mounting — standard in VX IT — ensures precise alignment for all 19" equipment; Business Impact – enables quick, repeatable installs and easy reconfiguration as systems evolve; Application – supports modular IT racks and scalable control architectures. Feature – Glazed front door in aluminium – front access with 180° hinges; Business Impact – improves visual inspection and maintenance, reducing downtime; Application – suitable for environments where operators monitor indicators without opening the full cabinet. Feature – Roof plate with rear cable entry and prepared for fan mounting plate; Business Impact – supports both passive cooling spacer assemblies and active cooling upgrades, lowering energy use and increasing component life; Application – essential for heat-intensive automation hardware. Feature – High load capacity and robustness IK08; 7,500 N maximum load, UL 2416 rating; Business Impact – ensures structural integrity under heavy equipment loads and transport; Application – critical for server racks in vibration-prone plant floors. Feature – Durable materials and finishes (sheet steel, aluminium, primed and powder-coated surfaces); Business Impact – longer service life, lower maintenance costs, and reduced corrosion risk; Application – reliable in challenging factory environments with exposure to dust and temperature variations.
Get a Quick Quote for a Rittal 5327121
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5327121?
Enquire Now
FAQs
The VX 5327.121 IT enclosure uses 482.6 mm (19") mounting angles and front mounting level, designed to accommodate standard 19" hardware with front access. It ships with dedicated mounting brackets, spacers for elevation above roof cut-outs, and conductive fasteners to ensure reliable grounding and alignment during installation in industrial environments.
Key specifications include IK08 mechanical robustness for impact resistance, a high static load capacity (up to 6,000 to 7,500 N depending on configuration), and UL 2416 compliance for safe, durable enclosures. The glazed front door and durable surface finishes further protect sensitive IT equipment from dust and incidental contact.
Yes. The roof plate is prepared for a fan mounting plate and includes horizontal rear cable entry, with spacers to elevate a cover plate for passive cooling. This enables a scalable cooling strategy that can start with passive cooling and expand to active cooling as processing loads increase.
The enclosure carries IK08 mechanical robustness, UL 2416 load rating, and complies with the product descriptions and classifications listed (ETIM EC002499, ECLASS 27180207). These standards support reliable performance under vibration, shock, and heavy equipment loads in industrial settings.
Investing in VX 5327.121 yields longer equipment life, reduced downtime due to improved accessibility and airflow, and a scalable 19" IT cabinet for growing automation needs. The reinforced structure and robust finishes lower maintenance costs while enabling faster deployment and upgrade cycles in manufacturing and process environments.
