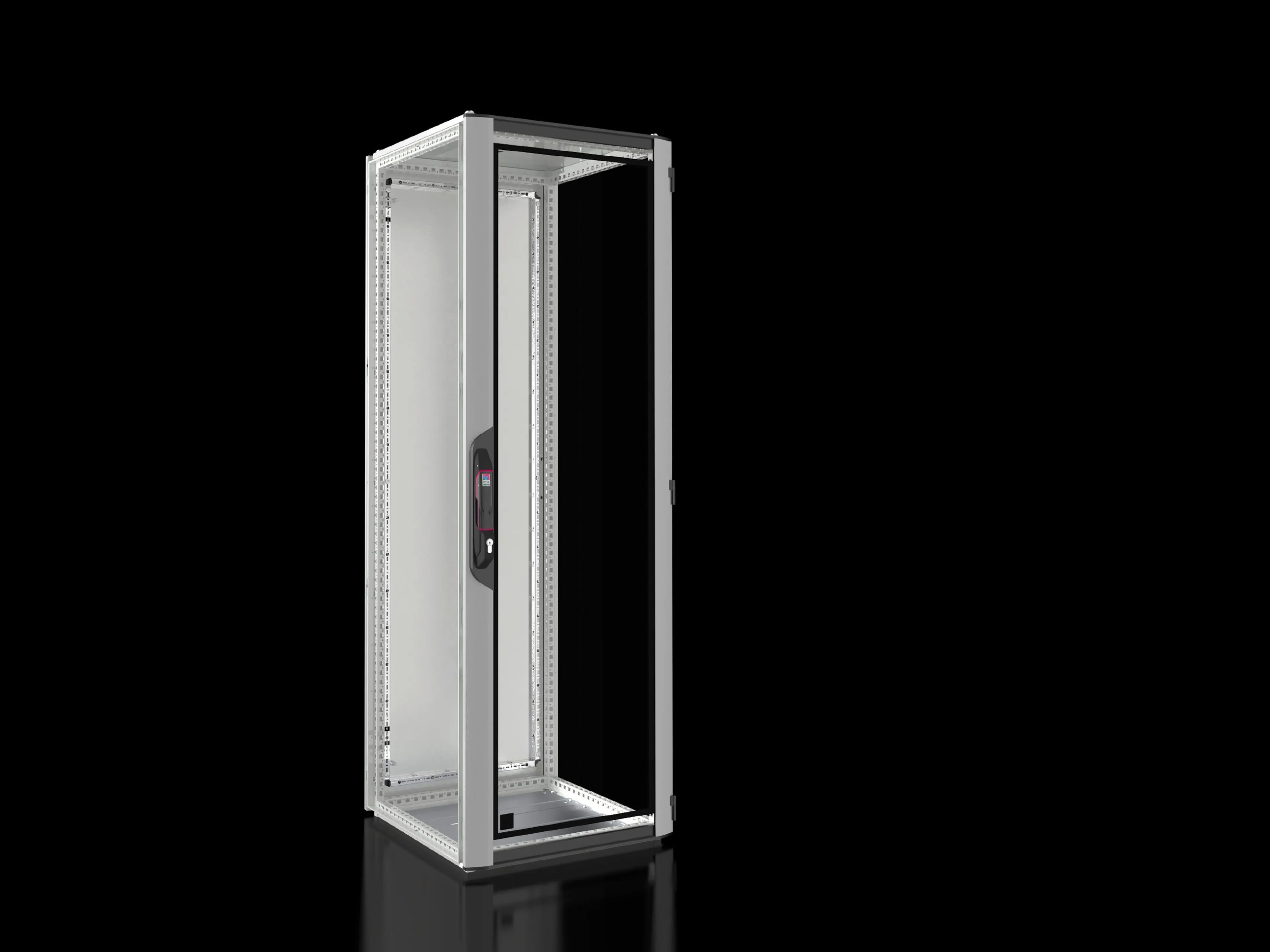

Rittal 5327.190 VX IT Enclosure - IP55
Part Number: 5327190
Quick Summary
Rittal 5327.190 VX IT Enclosure provides climate-controlled housing for electrical and automation gear in industrial facilities. Many buyers struggle to protect sensitive gear while keeping routine maintenance quick and cost-effective. The IP55 protection, IK08 impact resistance, and CE conformity ensure rugged performance and regulatory compliance across harsh environments. The 38U, 600 x 600 mm footprint supports standard 19-inch equipment while preserving interior space for cable management and future expansion. With a glazed front door for visibility and a solid rear door, maintenance access is straightforward from multiple angles. The modular VX IT design supports flexible configurations and fast installation, helping reduce downtime and total cost of ownership.
Product Information
Extended Description
5327190 Rittal: VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 1800 x 600 mm, 38 U, IP 55
Article number
VX 5327.190
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Sheet steel rear door, solid, one-piece, 130° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Roof plate, one-piece, solid | Base tray with gland plate, multi-piece, solid | Baying seal and sealing kit for gland plates (supplied loose) | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet
Dimensions
Width: 600 mm | Height: 1,800 mm | Depth: 600 mm
Units
38 U
Units
38 U
Roof design
one-piece, solid
Rear door design
Sheet steel door, solid, one-piece, 130° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
without
Base design
Base tray with gland plate, multi-piece, solid
Mounting angles position
without
Protection category to IEC 60 529
IP 55 only in conjunction with baying seal or screw-fastened side panels
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
68 kg
PCF per pack (cradle-to-gate)
167.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945487
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 1800 x 600 mm, 38 U, IP 55
Durable sheet steel body with an aluminium glazed front door provides a robust enclosure that withstands dusty, industrial environments, reducing maintenance interruptions and protecting critical electronics. This configuration is ideal for control cabinets in manufacturing lines where operators require quick status checks. IP55 protection with baying seal plus IK08 impact resistance ensures dust and water ingress protection and rugged build, supporting continuous operation in challenging plants and ensuring regulatory compliance in harsh environments. The 38U capacity with a 600 x 600 mm footprint accommodates standard 19-inch equipment while leaving space for cable management and future expansion, minimizing redesigns during plant upgrades. Front glazed door with 180° hinges and rear door with 130° hinges enable wide access for installation and service, reducing downtime and field labor. The base tray with gland plate and included gland kit, multi-piece base, and the supplied fasteners simplify cable entry and secure mounting, speeding up installation and reducing wiring mistakes. Packaging includes an IPPC pallet, and the enclosure weighs 68 kg, supporting safer handling and transport, with a cradle-to-gate PCF of 167.5 kg CO2 eq (Cat B) for responsible sourcing and planning.
Get a Quick Quote for a Rittal 5327190
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5327190?
Enquire Now
FAQs
Yes. The VX IT 5327.190 supports standard 19-inch equipment within its 38U interior. When wiring, plan for the base tray with gland plate and the included gland kit to manage cable entry efficiently. The empty interior installation option means you can tailor mounting rails and accessories to your specific application, reducing the need for field modifications and saving installation time.
The enclosure carries IP55 protection with baying seals and offers IK08 impact protection. This combination protects against dust ingress and water jets while withstanding mechanical impacts common in busy facilities. Reliability is enhanced in dusty, humid, or wash-down environments, supporting continuous operation of electrical and automation gear without frequent enclosure maintenance.
This enclosure is well-suited for manufacturing lines, process plants, and automation installations requiring direct climate control for control cabinets. Its glazed front door aids visual inspection, while the robust construction supports harsh environments such as food and beverage, chemical processing, and energy or utility applications where reliability and accessibility are paramount.
The VX IT enclosure complies with CE requirements and delivers IP55 protection and IK08 impact resistance. These certifications support regulatory compliance in many regions and help validate installation safety, longevity, and performance for industrial control cabinets and safety-critical automation systems.
The enclosure’s modular VX IT design, combined with a base tray, gland plate kit, and ready-fastening hardware, reduces field labor and wiring errors during installation. The glazed front door and wide-access hinges speed maintenance checks. Together with durable materials and standardized 19-inch compatibility, this setup minimizes downtime and supports lower total cost of ownership over the system’s life cycle.
