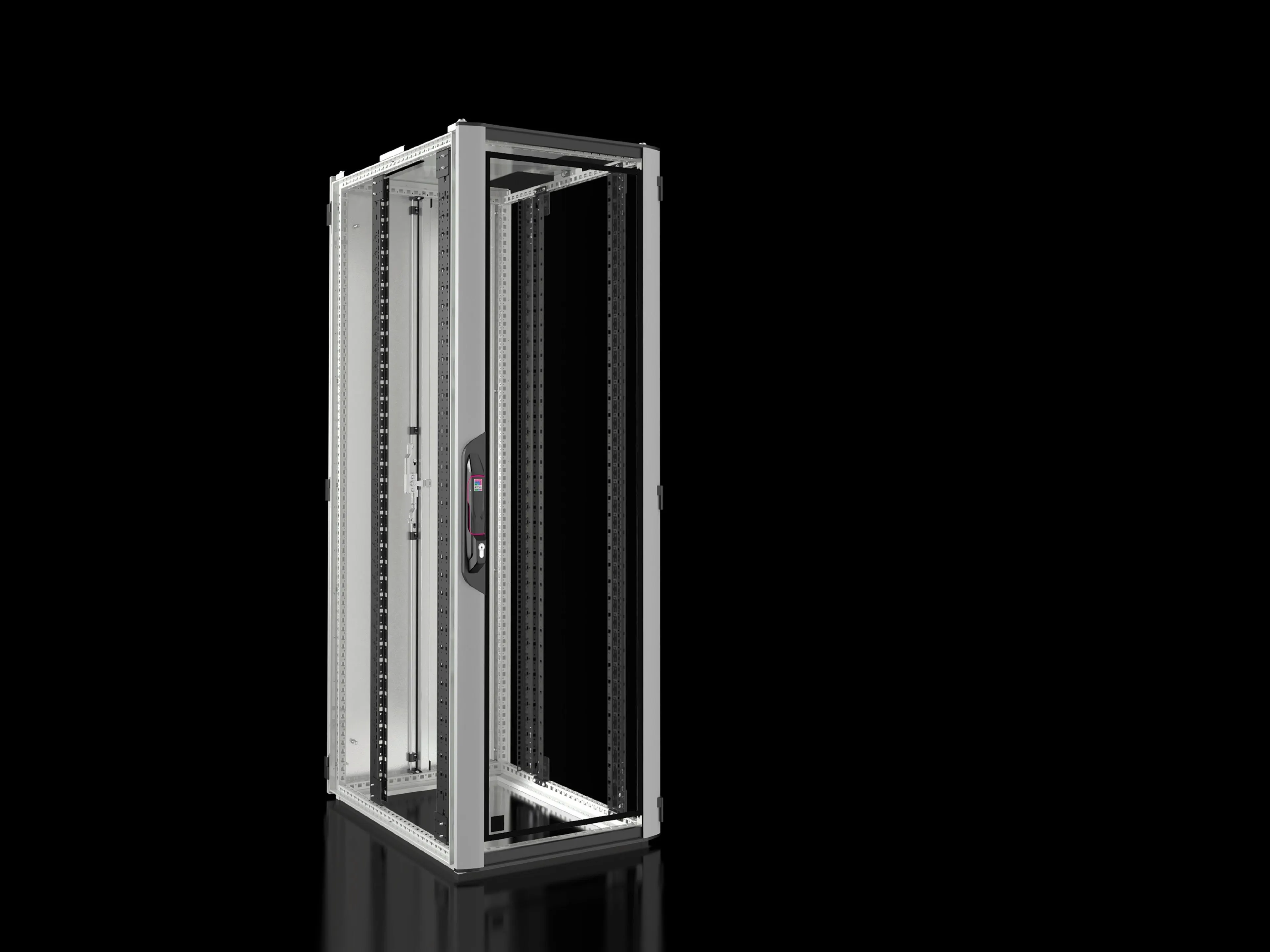

Rittal VX IT Enclosure VX 5328.123 600x1800x800 mm - IK08
Part Number: 5328123
Quick Summary
Rittal VX IT Enclosure VX 5328.123 provides climate-controlled IT cabinet solutions for 19-inch network and server deployments. Engineers often confront heat, airflow, and space constraints in 19-inch enclosures, risking downtime and noncompliance. This VX IT enclosure features IK08 impact protection and UL 2416 static load considerations, aligning with robust safety and performance standards. Designed for data centers and industrial IT rooms, it integrates 19-inch mounting angles and glazed front for quick serviceability, helping you meet uptime and total cost of ownership objectives. With 38 U capacity and a compact 600x1800x800 mm footprint, it offers scalable space for high-density equipment while simplifying maintenance and future upgrades.
Product Information
Extended Description
5328123 Rittal: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 600 x 1800 x 800 mm, 38 U
Article number
VX 5328.123
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear | Sheet steel rear door, solid, vertically divided, 180° hinges
Dimensions
Width: 600 mm | Height: 1,800 mm | Depth: 800 mm
Units
38 U
Units
38 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 193 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
79 kg
PCF per pack (cradle-to-gate)
194.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945494
ETIM 7.0
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 600 x 1800 x 800 mm, 38 U
Feature: 482.6 mm (19 inch) mounting angles, standard in the VX IT. Business Impact: simplifies accurate, repeatable rack installation and allows easy reconfiguration as equipment evolves. Application: 19 inch IT cabinet deployments in data centers and automation rooms. Feature: Front glazed aluminum door with 180 degree hinges. Business Impact: enables fast visual checks and rapid maintenance without compromising security. Application: network switches, controllers and edge devices in harsh environments. Feature: 600x1800x800 mm WHD, 38 U footprint. Business Impact: standardizes cabinet size for dense equipment and modular expansion, reducing custom fabrications. Application: mid to large scale industrial IT cabinets and server enclosures. Feature: Front and rear doors with durable materials and powder-coated surfaces. Business Impact: improves durability and corrosion resistance, lowering lifecycle costs in production floors. Application: harsh industrial settings requiring reliable protection. Feature: Load capacity of 15,000 N and UL 2416 static rating of 12,000 N. Business Impact: supports heavy server blades, power supplies and distribution hardware with margin for shock and vibration. Application: high-demand industrial control panels and data center racks. Feature: IK08 impact resistance. Business Impact: withstands mechanical abuse typical of factory floors, reducing risk of damage during handling and installation. Application: rugged IT cabinet deployments in manufacturing. Feature: Roof with cable entry in corners and 50 mm spacers for passive cooling. Business Impact: enables clean cable routing and optional passive cooling enhancements, lowering energy use. Application: HVAC-conscious facilities and retrofit projects. Feature: Comprehensive supplied hardware and mounting accessories. Business Impact: accelerates installation and ensures consistent grounding and connectivity; reduces field improvisation. Application: turnkey installation in new builds and refurbishments.
Get a Quick Quote for a Rittal 5328123
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5328123?
Enquire Now
FAQs
The VX IT enclosure ships with standard 482.6 mm (19 inch) mounting angles, usable at both front and rear. This enables straightforward rack mounting and flexible level placement with a 520 mm distance between levels, plus spacers to raise a cover plate if passive cooling is employed. Installation can be completed with the supplied screws and brackets for quick, repeatable setups.
The enclosure provides a load capacity of up to 15,000 N, with a static load rating of 12,000 N per UL 2416. It also offers IK08 impact resistance, contributing to robust protection against mechanical shock and defacement in industrial environments.
Yes. With a 38U capacity in a 600x1800x800 mm frame and 19-inch mounting, this cabinet is well-suited for data centers, industrial IT rooms, and automation environments. The glazed front door allows quick visual checks, while the rear door and roof design support efficient cable management and serviceability.
Key associations include IK08 impact protection and UL 2416 static load compliance. The product is listed with manufacturing identifiers such as EAN 4028177945494 and ETIM 7.0 EC002499, alongside ECLASS 8.0 27180207, aligning with industry data standards for easy procurement and interoperability.
Plan for durable surface finishes and modular mounting to minimize service time during upgrades. The enclosure supports long service intervals due to robust materials and protective coatings, and its standardized measurements help reduce spare-part complexity. The weight and packaging are optimized for shipment efficiency, contributing to lower lifecycle costs and improved total cost of ownership.
