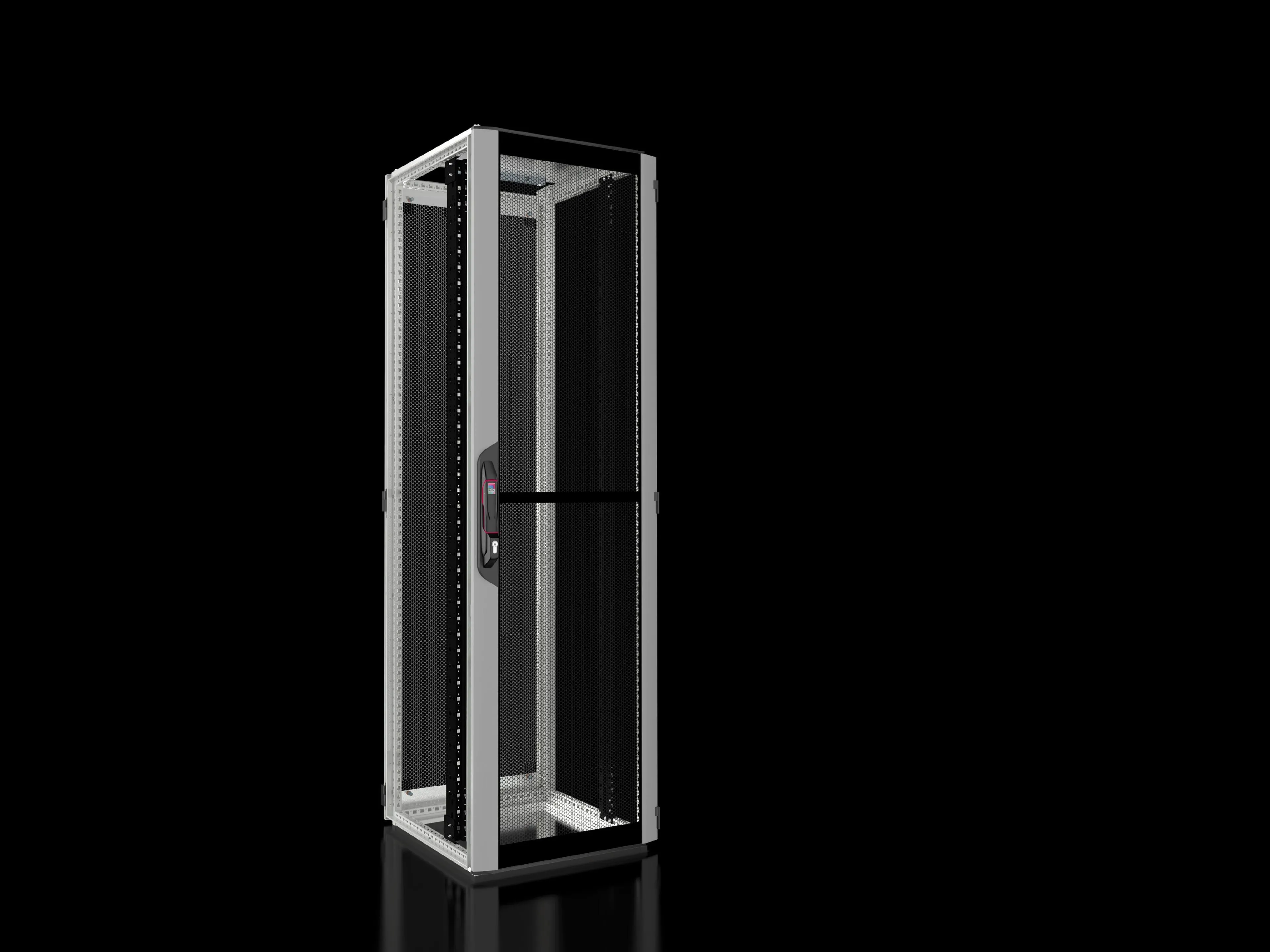

Rittal VX 5329.111 IT Enclosure - 42U, Vented
Part Number: 5329111
Quick Summary
Rittal VX 5329.111 IT Enclosure keeps critical IT gear secure and accessible in 19" rack environments. Engineers often struggle with airflow bottlenecks, cable clutter, and front/back access in dense deployments. This VX IT design supports enhanced airflow with vented doors and a removable roof plate, and it aligns with UL 2416 load ratings and ETIM/ECLASS data standards. Front and rear doors are designed for 180-degree operation, enabling flexible service access and cable management without compromising security. Its 482.6 mm (19") mounting angles and wide opening provide installation flexibility for modern data centers and telecom rooms. By combining rugged construction with optimized mounting and serviceability, it reduces downtime and improves scalability for IT rooms and data centers.
Product Information
Extended Description
5329111 Rittal: VX IT, 19" mounting angles, standard, front, vented, WHD: 600 x 2000 x 600 mm, 42 U
Article number
VX 5329.111
Design
Standard | Vented | with 482.6 mm (19") mounting angles
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated) | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, removable, for horizontal cable entry at the rear and with covered cut-out for fan mounting plate | Sheet steel rear door, vented, vertically divided, 180° hinges
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 600 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 449 mm
Mounting position of the 482.6 mm (19") level
front
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
multi-piece, removable, for horizontal cable entry at the rear and with covered cut-out for fan mounting plate
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front
Mounting angles position
482.6 mm (19") level, front
Load capacity
7,500 N
Max. load capacity (static) per enclosure to UL 2416
6,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
59.6 kg
PCF per pack (cradle-to-gate)
146.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945517
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front, vented, WHD: 600 x 2000 x 600 mm, 42 U
Feature: 42U capacity and 600 x 2000 x 600 mm footprint maximize rack density for servers, switches, and storage in a single cabinet. Business impact: minimizes floor space while maintaining accessible service clearances, supporting efficient cable routing and airflow. Application: data centers, telecom rooms, and office/server rooms with high heat density benefit from this layout. Feature: Front and rear vented doors with approx. 85% perforation enhance natural cooling and airflow management. Business impact: reduces cooling energy and improves component longevity, supporting scalable IT infrastructure. Application: environments with elevated heat load and dense equipment stacks benefit from improved passive cooling. Feature: Roof plate designed for horizontal cable entry at the rear and a removable fan mounting area, plus spacers to raise a cover plate for passive cooling. Business impact: simplifies cable management and enables targeted cooling strategies, lowering maintenance time. Application: equipment with rear cable entry and mixed fan configurations. Feature: 482.6 mm (19") mounting angles, standard, with front mounting level, plus top and bottom screw-fastened attachments. Business impact: rapid, repeatable installation and easy retrofits in existing 19" rack rows. Application: instrument panels, servers, and network gear deployment in multi-rack facilities. Feature: Robust steel/aluminium construction with powder-coated/reliably finished interior, and a front door with 180-degree hinge for ergonomic access. Business impact: durable enclosure that resists wear in busy data centers while simplifying component replacement. Application: frequent maintenance cycles and space-constrained rooms. Feature: Load capacity up to 7,500 N (static up to UL 2416) and compact overall footprint. Business impact: supports high‑density devices and future growth without cabinet reinforcement. Application: telecom rooms and data centers with dense blade servers and network appliances.
Get a Quick Quote for a Rittal 5329111
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5329111?
Enquire Now
FAQs
To install, mount the VX enclosure using the 482.6 mm (19") mounting angles at the front. Align the front rail with the rack EIA standard, tighten top and bottom screws, and verify the 150 mm front / 449 mm rear free mounting space. Use the 180-degree hinge doors to access both sides during equipment installation and cabling.
Key specs include 42U total; dimensions 600 mm wide, 2000 mm high, 600 mm deep; weight per pack 59.6 kg; load capacity 7,500 N (static 6,000 N). It features vented front and rear doors, 482.6 mm (19") mounting angles, and a removable roof plate for passive cooling and cable entry at the rear.
Yes. The enclosure uses vented doors with high perforation, a removable roof plate for fan mounting and cable access, and spacers to raise a cover plate for passive cooling. This combination supports efficient airflow, organized cable routing, and flexible cooling strategies in dense IT deployments.
The enclosure is designed to meet UL 2416 load requirements for safe static loading. It aligns with ETIM 9 and ECLASS 8.0 data standards for procurement. While CE marking is common for European products, verify the specific CE documentation for your project to ensure full compliance.
The VX 5329.111 consolidates equipment into a high-density 42U cabinet with robust airflow and easy maintenance, reducing cooling energy use and downtime. Its modular 19" mounting, front/rear access, and efficient cable management lower maintenance time, simplify future upgrades, and improve overall system reliability and uptime.
