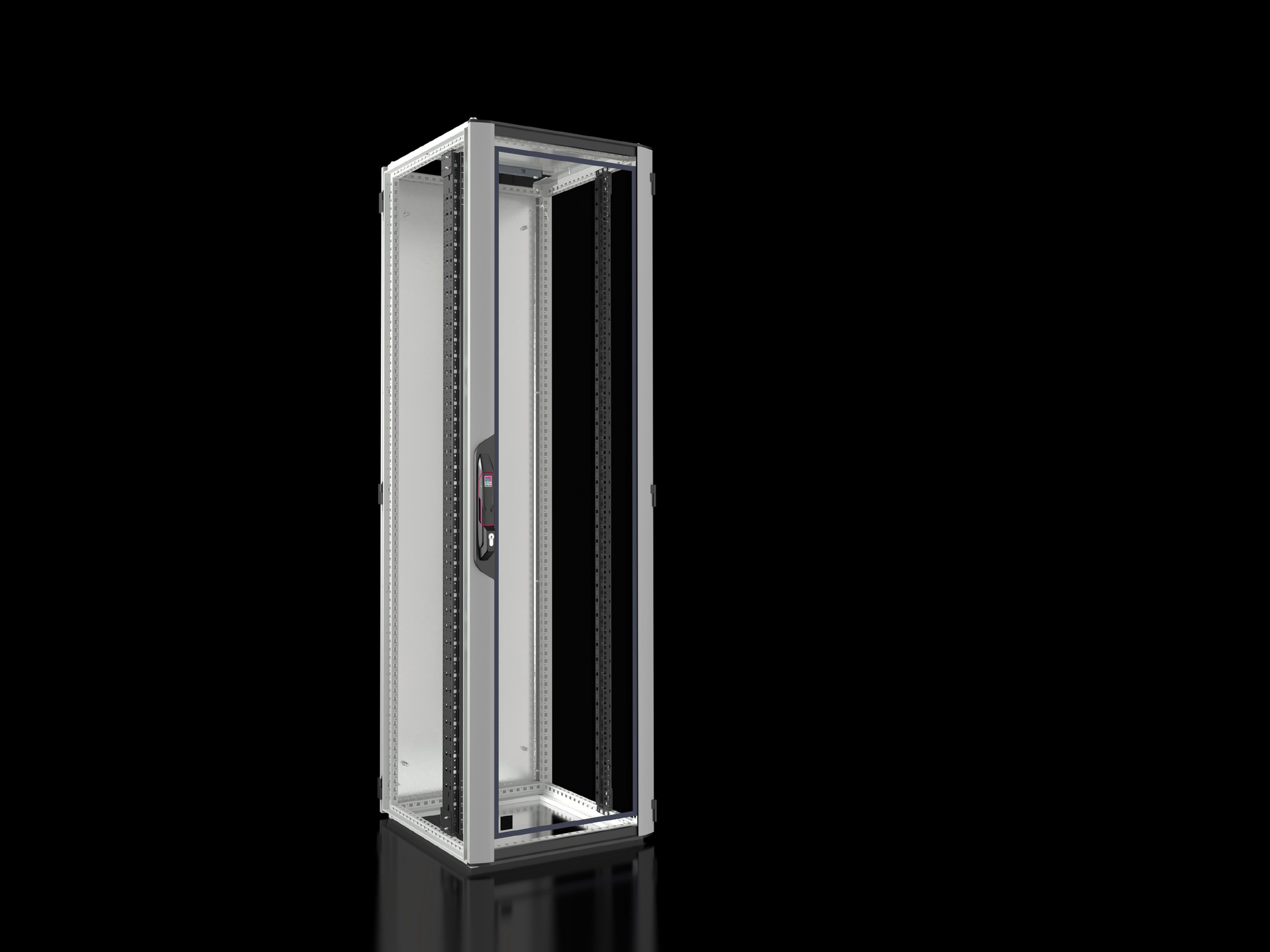

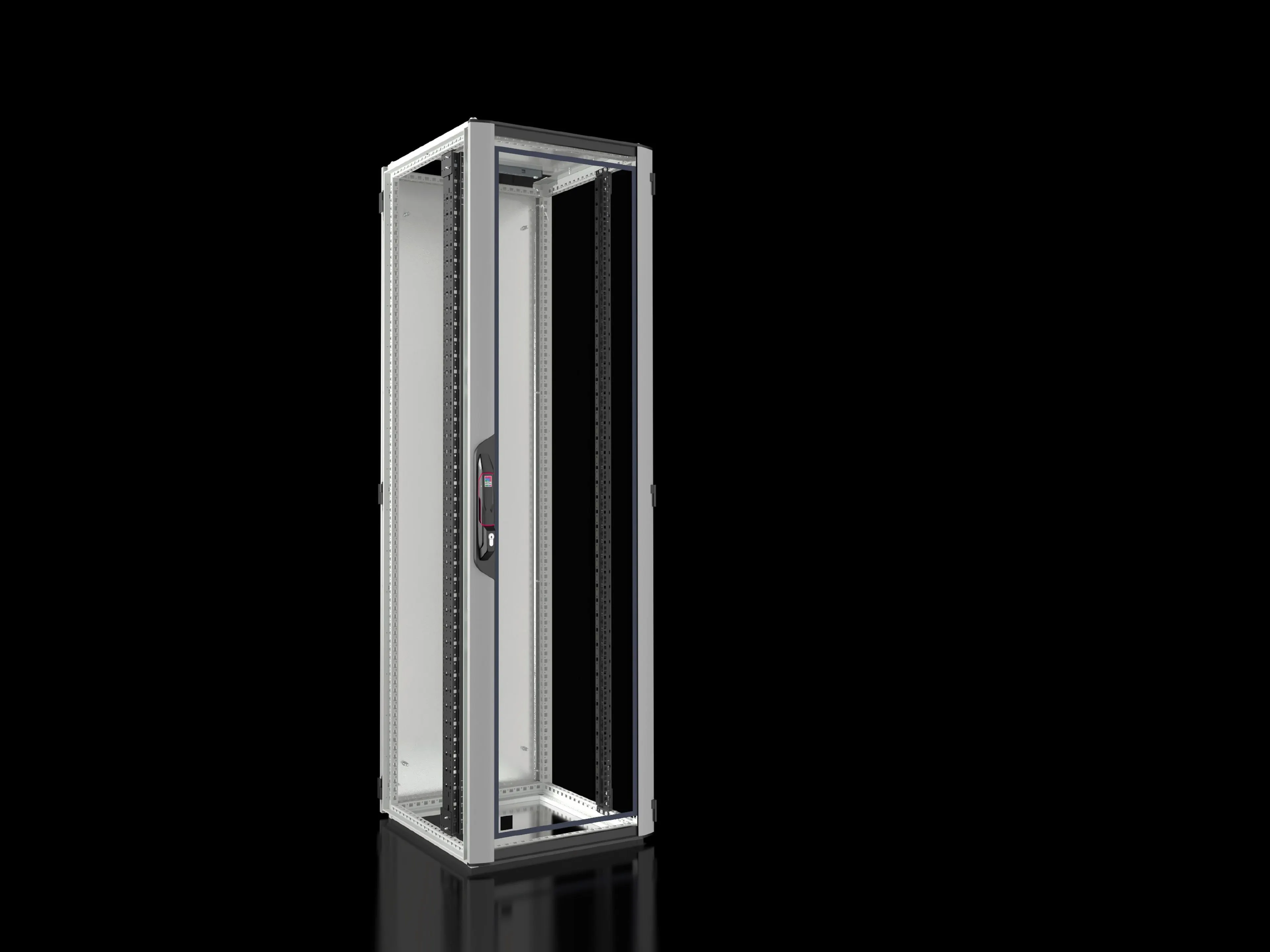

Rittal VX 5329.121 VX IT enclosure - IK08 protection
Part Number: 5329121
Quick Summary
Rittal VX IT enclosure protects 19" IT equipment with direct climate control for data centers and industrial networks. This solution addresses heat buildup, dust ingress, and space constraints by delivering a 42U interior and a front glazed door designed for easy access. Key protections include IK08 impact resistance and a UL 2416-compatible load guidance, ensuring robust performance in demanding environments. By combining sturdy framing with mounting angles, passive cooling readiness, and flexible cable management, it supports scalable IT deployments while helping reduce maintenance and energy costs for your facility.
Product Information
Extended Description
5329121 Rittal: VX IT, 19" mounting angles, standard, front, glazed door, WHD: 600 x 2000 x 600 mm, 42 U
Article number
VX 5329.121
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with horizontal cable entry at the rear and prepared for fan mounting plate | Sheet steel rear door, solid, vertically divided, 180° hinges
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 600 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 435 mm
Mounting position of the 482.6 mm (19") level
front
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
multi-piece, with horizontal cable entry at the rear and prepared for fan mounting plate
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front
Mounting angles position
482.6 mm (19") level, front
Load capacity
7,500 N
Max. load capacity (static) per enclosure to UL 2416
6,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
69.7 kg
PCF per pack (cradle-to-gate)
171.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177945524
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front, glazed door, WHD: 600 x 2000 x 600 mm, 42 U
Feature: 42 U interior, 600 mm width, 2000 mm height, 600 mm depth with 19" mounting angles at the front. Benefit: Maximizes available equipment density in a single cabinet while simplifying rack mounting of servers, switches, and storage in a compact footprint. Application: Data centers, industrial network rooms, and machine warehouses seeking efficient space utilization. Feature: Front glazed aluminium door and solid rear steel door with 180° hinges. Benefit: Clear visibility for active components while maintaining secure, durable access from either side. Application: Maintenance-friendly IT cabinets in high-traffic environments where quick service is essential. Feature: Roof plate with horizontal rear cable entry and prepared for a fan mounting plate. Benefit: Optimizes airflow and cable routing; enables passive cooling or fan-assisted cooling as needed. Application: Environments with variable cooling loads or increasing heat density from dense IT gear. Feature: 482.6 mm (19") mounting angles and compatible spacers. Benefit: Provides precise, vibration-minimized rack mounting and efficient air distribution; simple, tool-assisted installation. Application: Standard 19-inch IT equipment deployments requiring reliable top/bottom support. Feature: Material, finish, and colour specifications (sheet steel, aluminum, dip/ powder coat, and RAL 7035). Benefit: Long-term durability in harsh environments with consistent aesthetics and corrosion resistance. Application: Industrial facilities with exposure to dust, temp fluctuations, and handling. Feature: Load capacity up to 7,500 N and UL 2416 compliance guidance. Benefit: Safe support for heavy equipment and predictable structural performance under static loads. Application: High-density IT racks housing multi-server blades, large storage units, and network gear. Feature: Comprehensive hardware pack (glazed front door with 180° hinges, mounting screws, spacers, and 12 x 482.6 mm fasteners). Benefit: Accelerates installation, reduces sourcing time, and ensures consistent assembly quality. Application: New build or retrofits where fast deployment is critical.
Get a Quick Quote for a Rittal 5329121
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5329121?
Enquire Now
FAQs
The VX IT enclosure uses 482.6 mm (19") mounting angles with front mounting rails designed for standard 19" equipment. It supports a front installation configuration with 42U of usable space and includes screws and spacers to speed mounting. This simplifies adding servers, switches, or storage while ensuring stable, vibration-free operation.
This enclosure provides 42U of internal space within 600x2000x600 mm dimensions. It offers a maximum load capacity of 7,500 N (static 6,000 N per UL 2416) to accommodate dense rack configurations. The closed frame design and rear/roof components support reliable weight distribution for multi-processor servers and telecom equipment.
Yes. The VX IT enclosure is purpose-built for direct climate control in data centers and industrial environments. It features a glazed front door for visibility, robust door mechanics, 19" mounting rails, and a roof/cable-entry design optimized for cable routing and airflow—ideal for deployments combining IT and control equipment.
Key certifications and standards include IK08 impact resistance and a UL 2416 load reference for safe structural performance. The unit uses standard ETIM 9 and ECLASS 8.0 classifications, with materials and finishes specified to deliver durable protection. Always verify CE conformity with the supplier if your project requires formal CE marking.
Included hardware (mounting angles, spacers, screws) and ready-to-use roof plate with cable entry streamline installation. Front and rear door access, 180° hinges, and modular components reduce maintenance time and service downtime. The option for passive cooling with a fan mounting plate further lowers energy consumption and ongoing operating costs.
