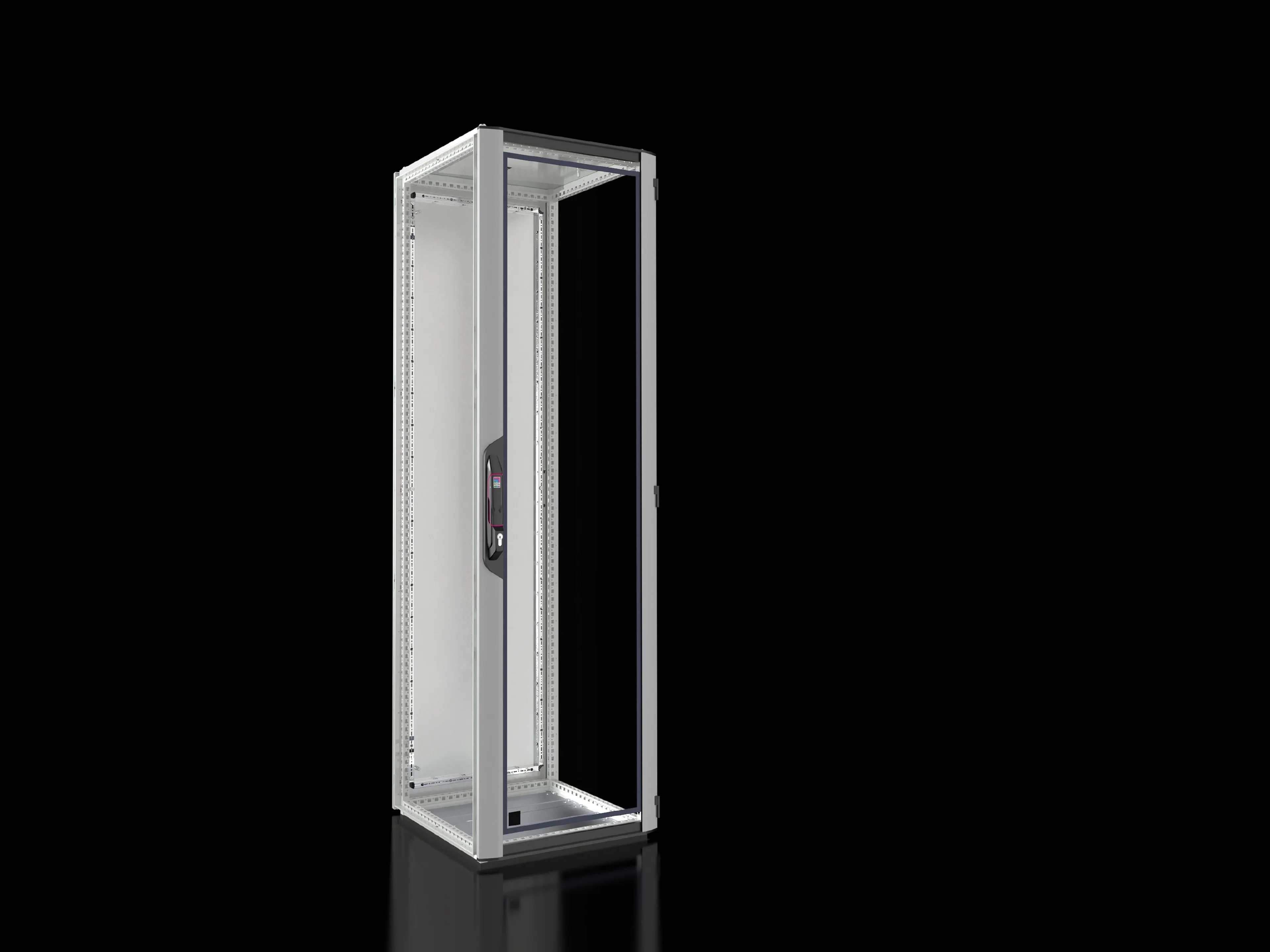

Rittal VX 5329.190 VX IT Enclosure - IP55 Rated
Part Number: 5329190
Quick Summary
Rittal VX IT enclosure provides direct climate control for rugged industrial enclosures in automation panels. When field deployments face condensation, dust ingress, or uneven cooling, downtime and component wear drive up maintenance costs. It offers IP55 protection and IK08 impact resistance, with a glazed front door for clear visibility of interior components. The compact 600 x 2000 x 600 mm footprint supports 42U of 19" equipment, and its robust, primed sheet steel frame combined with a durable aluminium front finish ensures long-term performance in harsh environments. This enclosure is a scalable backbone for automation layouts, improving uptime while simplifying servicing and future upgrades, and it aligns with modern plant-automation standards for easier integration.
Product Information
Extended Description
5329190 Rittal: VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 2000 x 600 mm, 42 U, IP 55
Article number
VX 5329.190
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Sheet steel rear door, solid, one-piece, 130° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Roof plate, one-piece, solid | Base tray with gland plate, multi-piece, solid | Baying seal and sealing kit for gland plates (supplied loose) | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 600 mm
Units
42 U
Units
42 U
Roof design
one-piece, solid
Rear door design
Sheet steel door, solid, one-piece, 130° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
without
Base design
Base tray with gland plate, multi-piece, solid
Mounting angles position
without
Protection category to IEC 60 529
IP 55 only in conjunction with baying seal or screw-fastened side panels
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
70.2 kg
EAN
4028177945548
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 2000 x 600 mm, 42 U, IP 55
Feature: VX IT is designed without 482.6 mm (19") interior installation, allowing flexible interior configuration for 19" equipment rails. Business impact: tailor the cabinet to your exact control stack, reducing unused space and easing future upgrades. Application: control cabinets in packaging lines or process automation where modularity matters. Feature: IP55 protection (in conjunction with baying seal or side panels) and IK08 impact resistance. Business impact: guards against dust and water exposure, extending service life and reducing unplanned downtime. Application: industrial environments, machine rooms, and outdoor-adjacent installations. Feature: Dimensions 600 x 2000 x 600 mm and 42U capacity. Business impact: ample space for 19" gear, enabling consolidation of controls and analytics in a single cabinet. Application: centralized control panels with room to grow. Feature: Glazed front aluminium door with 180° hinges. Business impact: easy access for commissioning and maintenance and improved visual inspection. Application: rapid diagnostics on busy production lines. Feature: Robust construction materials—sheet steel frame, aluminium front, 3 mm safety glass. Business impact: improved corrosion resistance and long-term durability in harsh environments. Application: factory floors, process lines, and batch automation. Feature: Base tray with gland plate, multi-piece design, and comprehensive seals. Business impact: streamlined cable entry and management, faster installation, and reliable ingress protection. Application: scalable wiring for complex control systems; includes required fasteners and screws for efficient assembly.
Get a Quick Quote for a Rittal 5329190
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5329190?
Enquire Now
FAQs
The VX IT 5329.190 ships without 19" interior installation, allowing flexible interior configuration. Install 19" rails as needed using compatible mounting hardware, supported by the base tray with gland plate. The unit includes 12 x 482.6 mm fasteners and 25 multi-tooth screws for secure mounting, plus a base tray and gland plate for organized cabling during later upgrades.
IP55 indicates protection against dust ingress sufficient to prevent operation issues and protection from water jets from any direction when bays/seals are used. IK08 means the enclosure can withstand a defined level of impact. Together they assure reliable operation in dusty, damp, or busy factory environments while resisting mechanical contact damage during routine handling.
The enclosure provides IP55 protection, which accommodates many semi-exposed environments when used with baying seals or side panels. However, for direct outdoor exposure, additional considerations such as weatherproofing accessories, seals, and installation location are recommended to maintain enclosure integrity and electronics protection over time.
Included components cover the enclosure frame with doors and roof plate, glazed front door, solid rear door, base tray with gland plate, sealing kit, gland plates, and fasteners for 19" rails and assembly. The set also includes long-lead items like IPPC pallets. Depending on your layout, you may need 19" mounting rails, additional side panels, or baying seals for enhanced IP protection.
With 42U capacity in a compact 600 x 2000 x 600 mm footprint, this enclosure consolidates control electronics, reduces cabinet fragmentation, and simplifies wiring via the gland plate system. Its durable construction, visibility through the glazed front, and easy-access hinges accelerate commissioning and maintenance, lowering downtime, extending component life, and enabling scalable future upgrades in high‑mix, low‑volume manufacturing.
