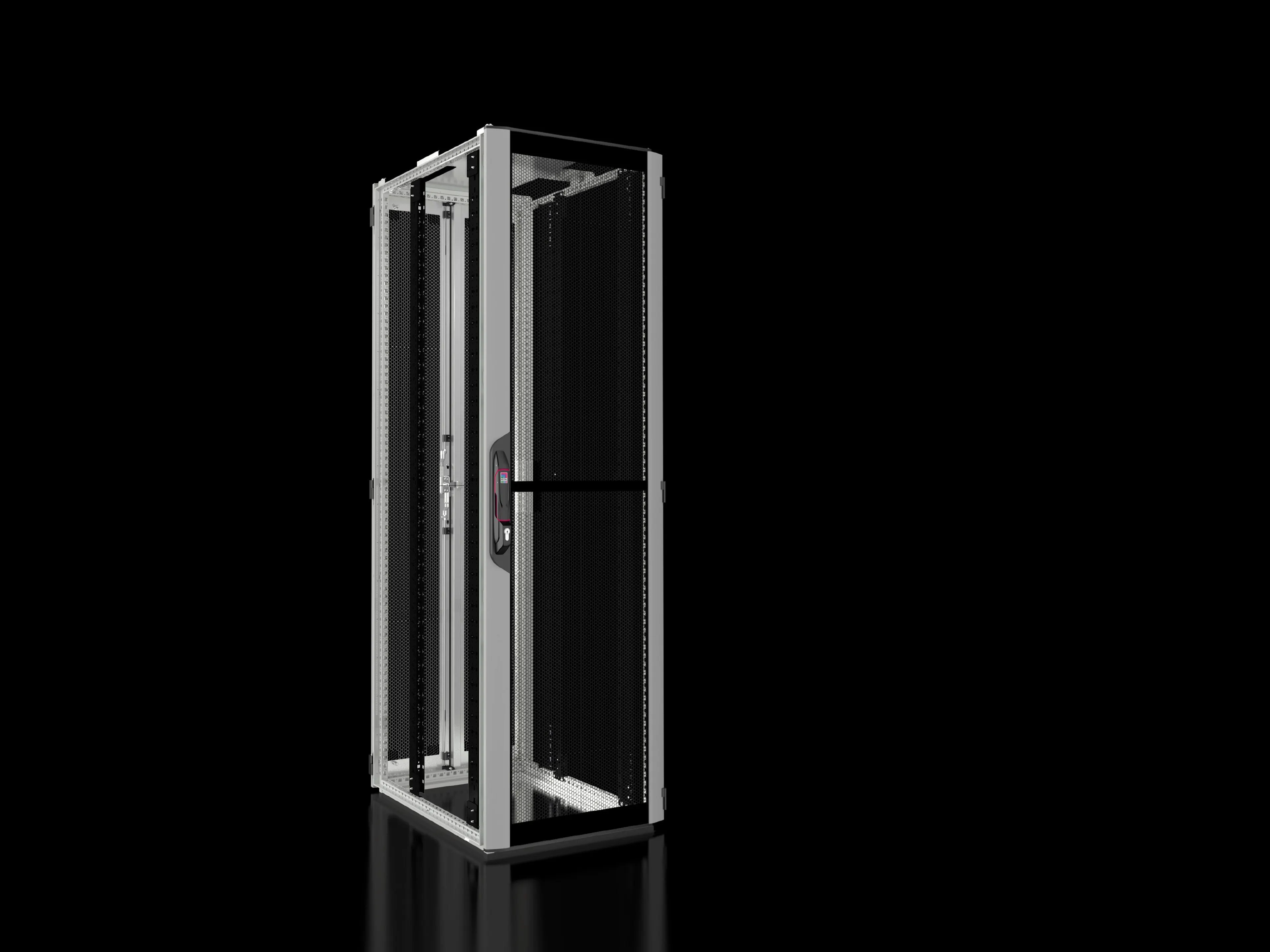

Rittal VX 5330.113 IT Enclosure - Ventilated 19" Mounting Angles
Part Number: 5330113
Quick Summary
Rittal VX IT enclosure protects network gear while providing front and rear ventilation for data center rooms. Engineers often contend with hot spots and restricted airflow in dense 19" rack environments, leading to reduced performance and uptime. This model combines a 42 U footprint with a 600x2000x800 mm WHD and vented doors to balance accessibility with efficient cooling, using standard 482.6 mm (19") mounting angles. While the data sheet lists a UL 2416-compliant load reference and robust build, verify CE marking and IP ratings with the supplier for your regional requirements. The enclosure is designed to integrate with existing IT racks and offers predictable airflow, supporting safer, more reliable deployments while aligning with typical procurement and lifecycle cost goals.
Product Information
Extended Description
5330113 Rittal: VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 600 x 2000 x 800 mm, 42 U
Article number
VX 5330.113
Design
Standard | Vented | with 482.6 mm (19") mounting angles
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RALÂ 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RALÂ 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated) | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear | Sheet steel rear door, vented, vertically divided, 180° hinges
Dimensions
Width:Â 600 mm | Height:Â 2,000 mm | Depth:Â 800 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 520 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
74.8 kg
PCF per pack (cradle-to-gate)
184.3Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945555
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 600 x 2000 x 800 mm, 42 U
Feature → Business Impact → Application: 42 U capacity (42 U) enables maximized equipment density in a single enclosure, reducing rack fragmentation and simplifying cable management; improves overall data-center floor efficiency and reduces footprint. Feature → Business Impact → Application: Front and rear vented doors provide high airflow while maintaining security, lowering cooling energy needs and enabling passive cooling strategies in server rooms and network closets. Feature → Business Impact → Application: 600 mm width, 2000 mm height, 800 mm depth (WHD) supports standard 19" equipment with predictable mounting, facilitating rapid deployment in IT spaces that require scalable expansion. Feature → Business Impact → Application: 482.6 mm (19") mounting angles included for standard installs, reducing additional procurement steps and ensuring compatibility with a wide range of 19" hardware. Feature → Business Impact → Application: Heavy-load capacity up to 15,000 N (static, per spec) with UL 2416 reference provides confidence for multi-rack assemblies and weighty equipment, lowering risk of deflection and maintenance costs in data centers. Feature → Business Impact → Application: Durable construction with sheet steel rear door and aluminium front door supports long service life and ease of service, enabling predictable maintenance cycles and lower lifecycle costs in industrial IT environments.
Get a Quick Quote for a Rittal 5330113
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5330113?
Enquire Now
FAQs
The VX 5330.113 includes standard 482.6 mm (19") mounting angles, enabling front and rear installation and secure, compliant integration of typical 19" equipment. This setup simplifies cabling and ensures stable equipment alignment across a 42U footprint.
The enclosure is designed to support substantial weight with a stated load capacity of up to 15,000 N (static). UL 2416 is used as a reference for this capability, while the front door is an aluminium/sheet steel, vented, 180° hinge design and the rear door is sheet steel, vented, vertically divided with 180° hinges, facilitating full access during maintenance.
Yes. With a 42U capacity, vented front and rear doors, and dimensions of 600x2000x800 mm, this VX IT enclosure is well-suited for dense server and network equipment in data centers, server rooms, and network closets. Its 19" mounting rails and secure doors support orderly installs and efficient airflow.
Data shows UL 2416 load compliance and standard enclosure features, but CE marking and IP ratings are not specified in the technical data. For European deployments or environments requiring ingress protection, confirm CE conformity and the IP rating with the supplier prior to purchase.
The VX 5330.113 ships with mounting angles, spacers for passive cooling, and standard fasteners, simplifying installation and future upgrades. Its modular 19" rails and ventilated design allow straightforward expansion or reconfiguration as IT needs evolve, minimizing downtime during upgrades.
