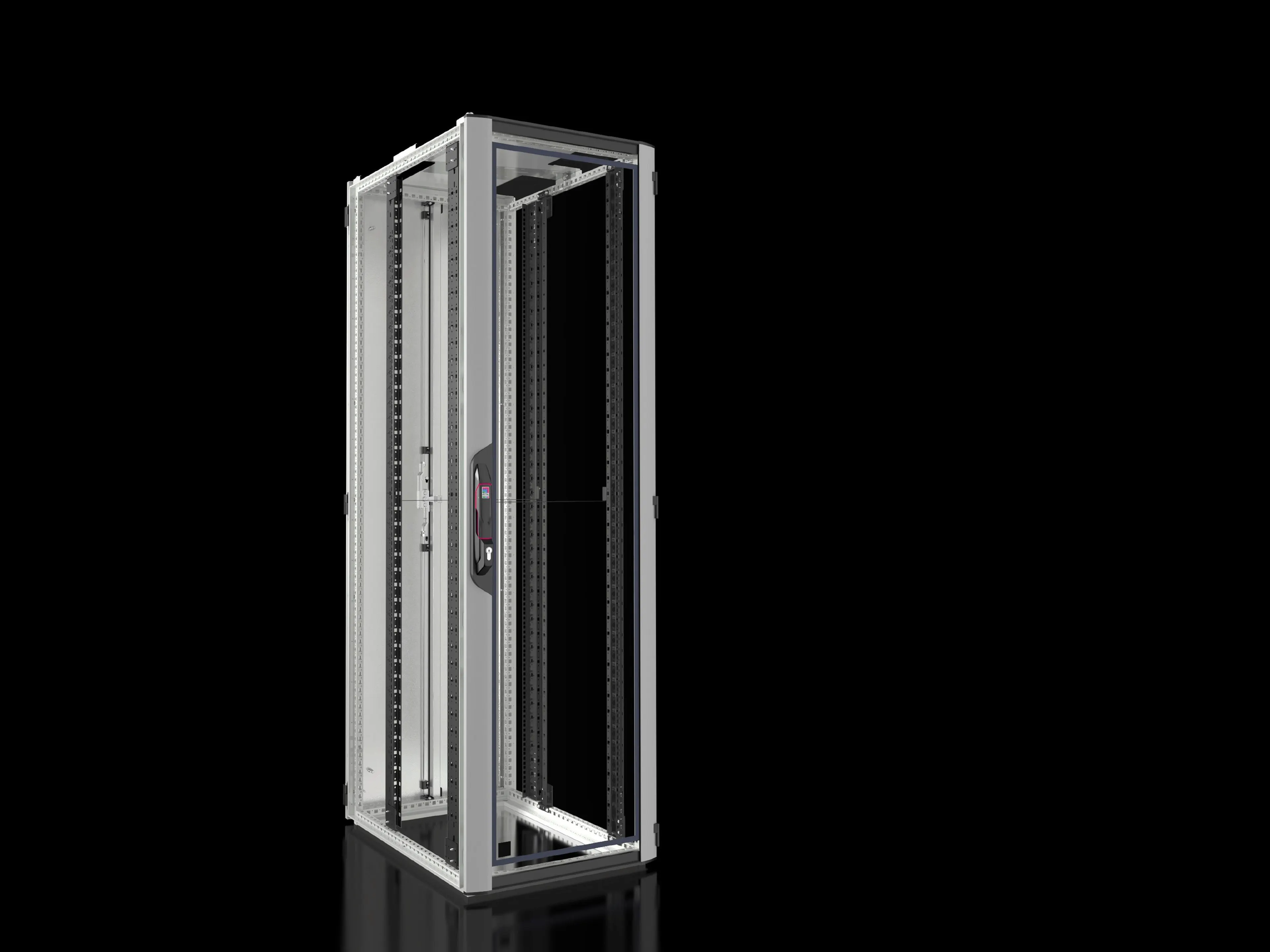

Rittal VX 5330.123 IT Network Enclosure - IK08
Part Number: 5330123
Quick Summary
Rittal VX 5330.123 IT network enclosure protects critical servers and networking gear in data centers. Open racks and inconsistent climate control often lead to equipment downtime and higher cooling costs. IK08 impact resistance and UL 2416 load compliance ensure robustness in harsh environments, while a 42U, 600×2000×800 mm footprint offers scalable space. With front and rear doors, passive cooling options, and standardized 19" mounting, this enclosure streamlines installation and maintenance for IT and industrial automation. In practice, it reduces total cost of ownership by improving accessibility, thermal management, and cabinet reliability.
Product Information
Extended Description
5330123 Rittal: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 600 x 2000 x 800 mm, 42 U
Article number
VX 5330.123
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear | Sheet steel rear door, solid, vertically divided, 180° hinges
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 800 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 193 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
87.4 kg
PCF per pack (cradle-to-gate)
215.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945562
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 600 x 2000 x 800 mm, 42 U
19-inch mounting rails with front and rear 482.6 mm (19") levels enable plug-and-play integration for servers, switches, and controllers. This standardization reduces installation time and ensures consistent alignment, improving airflow and serviceability across IT and industrial cabinets. Integrated climate and cable management features keep equipment within optimal temperatures. The WHD 600 x 2000 x 800 mm design, corner cable entries, and 50 mm spacers for passive cooling in the roof plate support efficient thermal management and reduced energy use in high-density deployments. Glazed front aluminum door with 180° hinges provides quick access while maintaining security. Front and rear access reduces downtime during maintenance, while the robust frame supports dense equipment without compromising integrity. Robust construction with IK08 rating and 15,000 N load capability (static 12,000 N per UL 2416) ensures safe operation in harsh environments. Size and space management are optimized with 600 mm width, 2,000 mm height, and 800 mm depth, 42 U of mounting space; free mounting space to the 482.6 mm level is 87 mm at the front and 193 mm at the rear for flexible cable routing and component organization.
Get a Quick Quote for a Rittal 5330123
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5330123?
Enquire Now
FAQs
To install, mount the 482.6 mm rails at the front and rear of the enclosure to the rack frame using the supplied screws. Align with the 42 U internal space and ensure front and rear rails are level to maintain proper mounting. The distance between levels is 520 mm, which helps plan cable routing and component placement for a clean, serviceable layout.
The enclosure measures 600 mm wide, 2,000 mm high, and 800 mm deep, providing 42 U of mounting space. It ships in a single pack weighing 87.4 kg, with a maximum static load capacity of 15,000 N and UL 2416 compatibility of 12,000 N, informing handling and installation planning for heavy equipment.
Yes. The enclosure combines IK08 impact resistance with a sturdy sheet-steel frame, front/rear access, and a cable-entry capable roof. Its 42 U footprint and 600x2000x800 dimensions support dense automation controllers and networking gear, while the passive cooling spacers aid thermal management, reducing fan-driven cooling needs in production environments.
Key compliance references include IK08 impact resistance for robust protection and UL 2416 compatibility for static load performance. The design also incorporates a glazed front door, powder-coated interior finish, and aluminum front door, aligning with industry expectations for IT and industrial cabinets and ensuring long-term reliability in challenging settings.
The front/rear access design simplifies component replacement and cable management, reducing downtime. Passive cooling options and optimized air flow lower energy consumption, contributing to lower operating costs. Over the cabinet’s life, standardized 19" mounting and scalable 42U space support easy expansion, improving total cost of ownership in data centers and automation environments.
