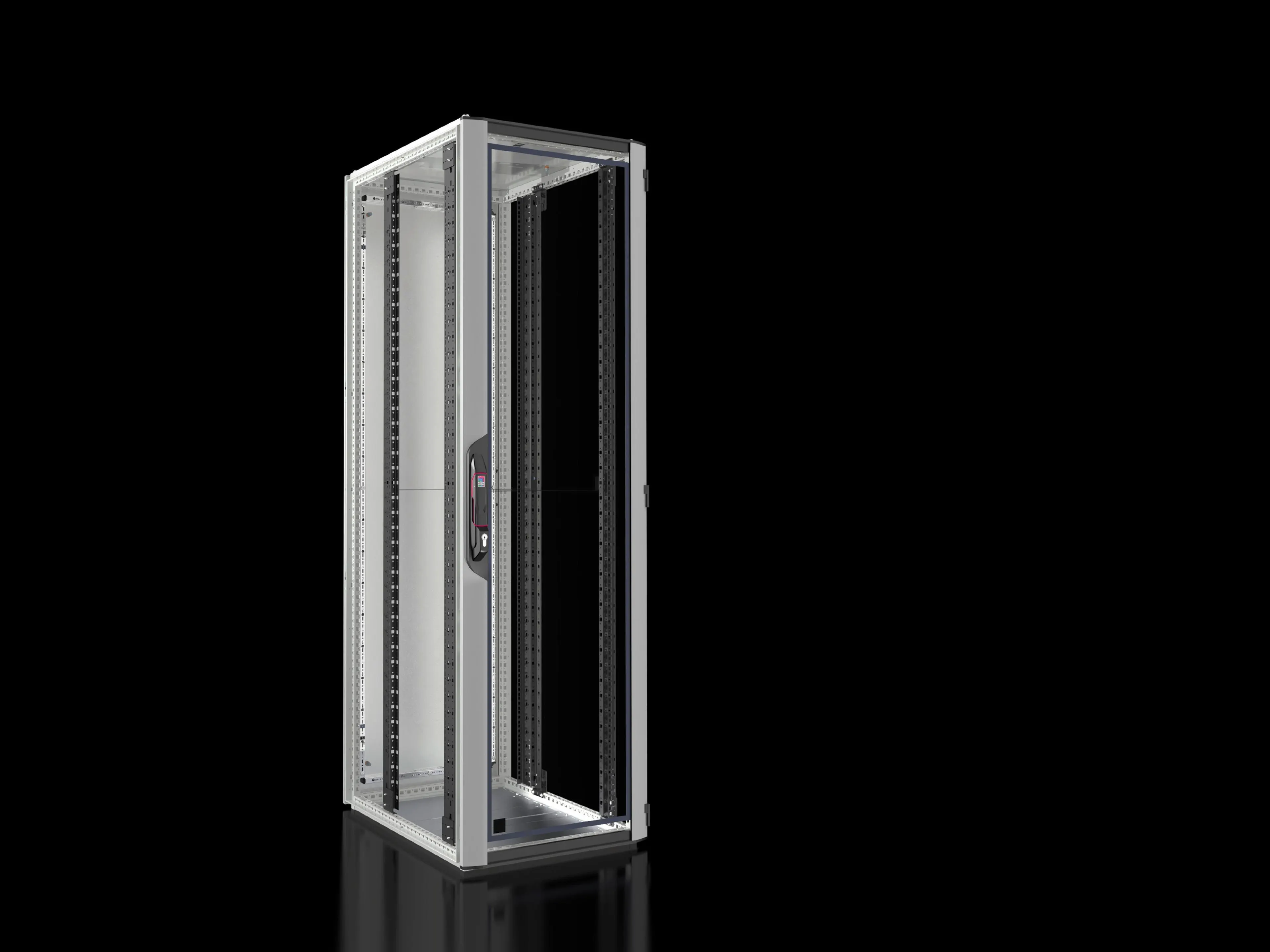

Rittal VX 5330.133 VX IT Enclosure - IP 55, Front/Rear Doors
Part Number: 5330133
Quick Summary
The Rittal VX IT enclosure protects IT hardware in hostile industrial environments, delivering modular 19-inch mounting. Engineers often struggle with space, climate control and cable routing in cabinets; this enclosure reduces footprint while improving airflow and serviceability. It delivers IP 55 protection, IK08 impact resistance, and UL 2416 compatibility, supporting dependable operation in demanding environments. Together with modular bays and access options, the VX IT enclosure helps you accelerate deployment and reduce total cost of ownership. Its front glazed and rear solid doors support monitoring while maintaining security, and the 42 U capacity accommodates full IT/server racks. This combination translates into safer, more reliable industrial IT installations.
Product Information
Extended Description
5330133 Rittal: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 600 x 2000 x 800 mm, 42 HE, IP 55
Article number
VX 5330.133
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Sheet steel rear door, solid, one-piece, 130° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Roof plate, one-piece, solid | Base tray with gland plate, multi-piece, solid | Baying seal and sealing kit for gland plates (supplied loose) | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 800 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 193 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
one-piece, solid
Rear door design
Sheet steel door, solid, one-piece, 130° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Base tray with gland plate, multi-piece, solid
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
Protection category to IEC 60 529
IP 55 only in conjunction with baying seal or screw-fastened side panels
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
96 kg
PCF per pack (cradle-to-gate)
236.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945579
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 600 x 2000 x 800 mm, 42 HE, IP 55
Feature: 482.6 mm (19-inch) mounting angles, front and rear, standard in the VX IT. Business Impact: Enables quick, accurate installation of standard 19-inch equipment, reducing commissioning time and misalignment. Application: Ideal for servers, switches, and automation controllers in control cabinets across manufacturing or utility environments. Feature: IP 55 protection with baying seal (or side panels) and IK08 impact resistance. Business Impact: Provides robust protection against dust and water ingress while resisting mechanical impacts, reducing maintenance and downtime. Application: Suitable for factory floors, outdoor-adjacent cabinets, and harsh industrial rooms. Feature: Front glazed aluminium door with 180° hinges and solid rear sheet-steel door with 130° hinges. Business Impact: Enables easy monitoring and maintenance access from both sides while preserving enclosure security. Application: Data/telecom equipment and automation controllers requiring visibility and secure enclosure.Feature: Large 600 x 2000 x 800 mm footprint with 42 U and a load capacity up to 15,000 N. Business Impact: Ample space for multi-rack configurations and high-density equipment, while supporting static loading requirements per UL 2416. Application: Ideal for large IT/OT deployments, blade servers, and power distribution modules in industrial cabinets.Feature: Base tray with gland plate, plus gland and sealing kit. Business Impact: Simplifies cable routing and gland entry, improving reliability and reducing installation time. Application: Power, data, and signal cabling in complex automation cabinets. Feature: Sustainability data and materials (weight 96 kg, PCF 236.5 kg CO2 eq, Cat B). Business Impact: Clear lifecycle footprint information supports green procurement and regulatory reporting. Application: Corporate ESG programs and supplier assessments for industrial enclosures.
Get a Quick Quote for a Rittal 5330133
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5330133?
Enquire Now
FAQs
The VX IT enclosure uses standard 482.6 mm (19-inch) mounting angles, front and rear, so typical IT equipment such as servers, switches, and automation controllers can be mounted directly. The 42U configuration provides ample space for multi-rack deployments, reducing the need for multiple enclosures and simplifying cable management.
This enclosure delivers IP 55 protection when used with baying seals or screw-fastened side panels, guarding against dust and water ingress. It also features IK08 impact resistance, supporting robust operation in factories and outdoor-adjacent areas where mechanical shocks may occur.
Yes. The glazed front door and solid rear door with 180°/130° hinges enable convenient monitoring and servicing from either side. The 600x2000x800 mm footprint and 42U capacity support substantial server and network provisioning while maintaining security and accessibility.
Key standards include IP 55 protection and IK08 impact resistance, with UL 2416-compliant load performance. These specifications help ensure reliable operation under industry safety and performance expectations in automated environments.
Modular 19-inch mounting, front/rear access, gland plate-based cable management, and a robust base tray streamline installation and future upgrades. These features reduce downtime during changes, improve maintainability, and support longer asset lifecycles, contributing to lower total cost of ownership.
