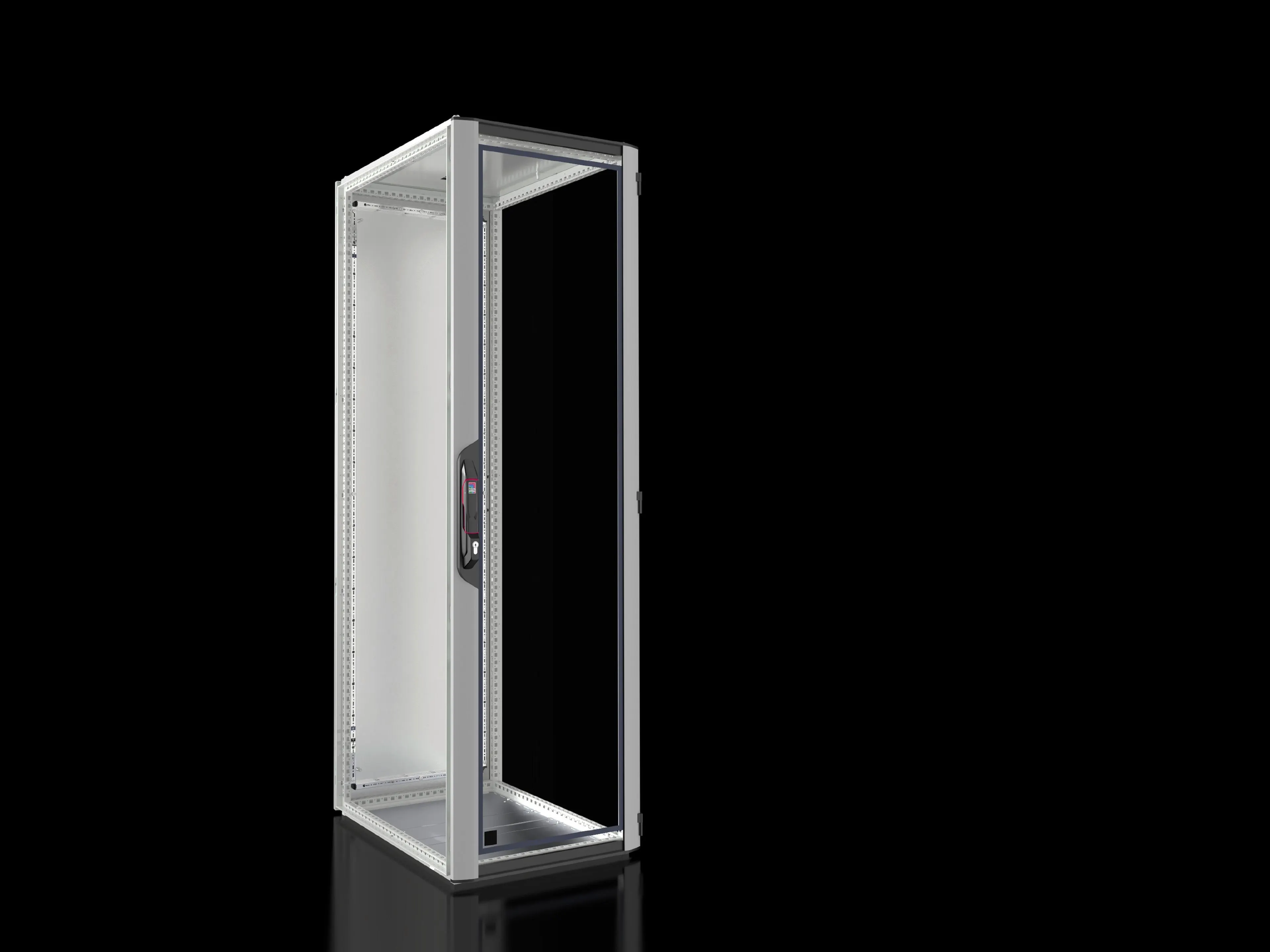

Rittal VX 5330.190 VX IT Enclosure - IP55
Part Number: 5330190
Quick Summary
Rittal VX 5330.190 VX IT enclosure provides direct climate control for industrial enclosures in harsh environments. This solution helps engineers tackle thermal hotspots, moisture ingress, and the complexity of configuring 19" equipment in rugged factory settings. It delivers IP55 protection with a sealed design (when paired with baying seals) and IK08 impact resistance, balancing durability with visibility through the glazed front. The enclosure’s 42U footprint, robust finishes, and included mounting hardware translate into faster deployment, widespread configurability, and reduced total cost of ownership for industrial automation projects.
Product Information
Extended Description
5330190 Rittal: VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 2000 x 800 mm, 42 U, IP 55
Article number
VX 5330.190
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Sheet steel rear door, solid, one-piece, 130° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Roof plate, one-piece, solid | Base tray with gland plate, multi-piece, solid | Baying seal and sealing kit for gland plates (supplied loose) | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 800 mm
Units
42 U
Units
42 U
Roof design
one-piece, solid
Rear door design
Sheet steel door, solid, one-piece, 130° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
without
Base design
Base tray with gland plate, multi-piece, solid
Mounting angles position
without
Protection category to IEC 60 529
IP 55 only in conjunction with baying seal or screw-fastened side panels
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
80.6 kg
PCF per pack (cradle-to-gate)
198.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945586
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 2000 x 800 mm, 42 U, IP 55
Direct climate control tailored to VX IT enclosures improves equipment reliability by actively managing temperature and humidity inside the cabinet, reducing thermal stress on sensitive electronics and extending service life. This leads to measurable downtime reductions and smoother operation of automation panels in production lines. The IP55 rating, achievable with baying seals, and IK08 impact protection provide protection against dust, water ingress, and mechanical shocks typical of factory floors, improving equipment resilience and compliance with harsh-environment standards. The design accommodates 19" gear using the included 12 x 482.6 mm fasteners and multi-piece base tray with gland plate, enabling fast retrofits and scalable configurations without changing cabinet footprints. Glazed aluminium front door offers at-a-glance status checks, while 180° door hinges enhance access for maintenance and troubleshooting. The unit’s color and finish—RAL 7035 frame with anodised/spray-finished front door—support standardized plant layouts and simplified maintenance logistics. Compatibility with 600 x 2000 x 800 mm WHD packaging and the 42 U rack height allows straightforward integration of power distribution, control modules, and communication hardware in a single enclosure. Overall, this VX IT solution lowers installation risk, improves cable management, and supports future expansion with baying seal compatibility and robust mounting hardware.
Get a Quick Quote for a Rittal 5330190
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5330190?
Enquire Now
FAQs
The VX IT enclosure is supplied without 482.6 mm interior installation, designed for direct integration of external 19" equipment via the included mounting hardware. Use the 12 x 482.6 mm fasteners and the base tray with gland plate to securely mount components. Plan for proper cable routing and gland plate access to maintain the enclosure’s IP55 performance and avoid leakage pathways.
VX 5330.190 delivers direct climate control within the cabinet, reducing thermal hotspots and humidity-related risks. Its IP55 protection with baying seal maintains enclosure integrity in dusty or damp environments, while IK08 provides impact resistance. Combined with a glazed front door for quick status checks, this enclosure supports reliable operation of control electronics and drives in demanding production lines.
Yes, the enclosure is designed for 19" equipment with compatible mounting hardware included. It ships with 12 x 482.6 mm fasteners and a base tray with gland plate for clean cable entry. The 42U height and rear plate mounting support straightforward stacking of control modules, power distrubution, and fieldbus interfaces, ensuring compliant and scalable installations.
This enclosure is ideal for industrial automation control cabinets, electrical switchgear housings, and process automation panels in manufacturing environments. Its climate-control capability, combined with robust IP55 protection and 42U capacity, supports reliable operation of PLCs, drives, and I/O modules in environments with dust, temperature variation, or moisture exposure.
IK08 protection and IP55 sealing reduce maintenance and protective-requirement costs by limiting exposure to shocks and ingress. The powder-coated rear and frame with anodised front door extend service life, while the included gland plates and mounting hardware minimize installation time and parts sourcing. The result is lower lifecycle costs and improved uptime for automated production lines.
