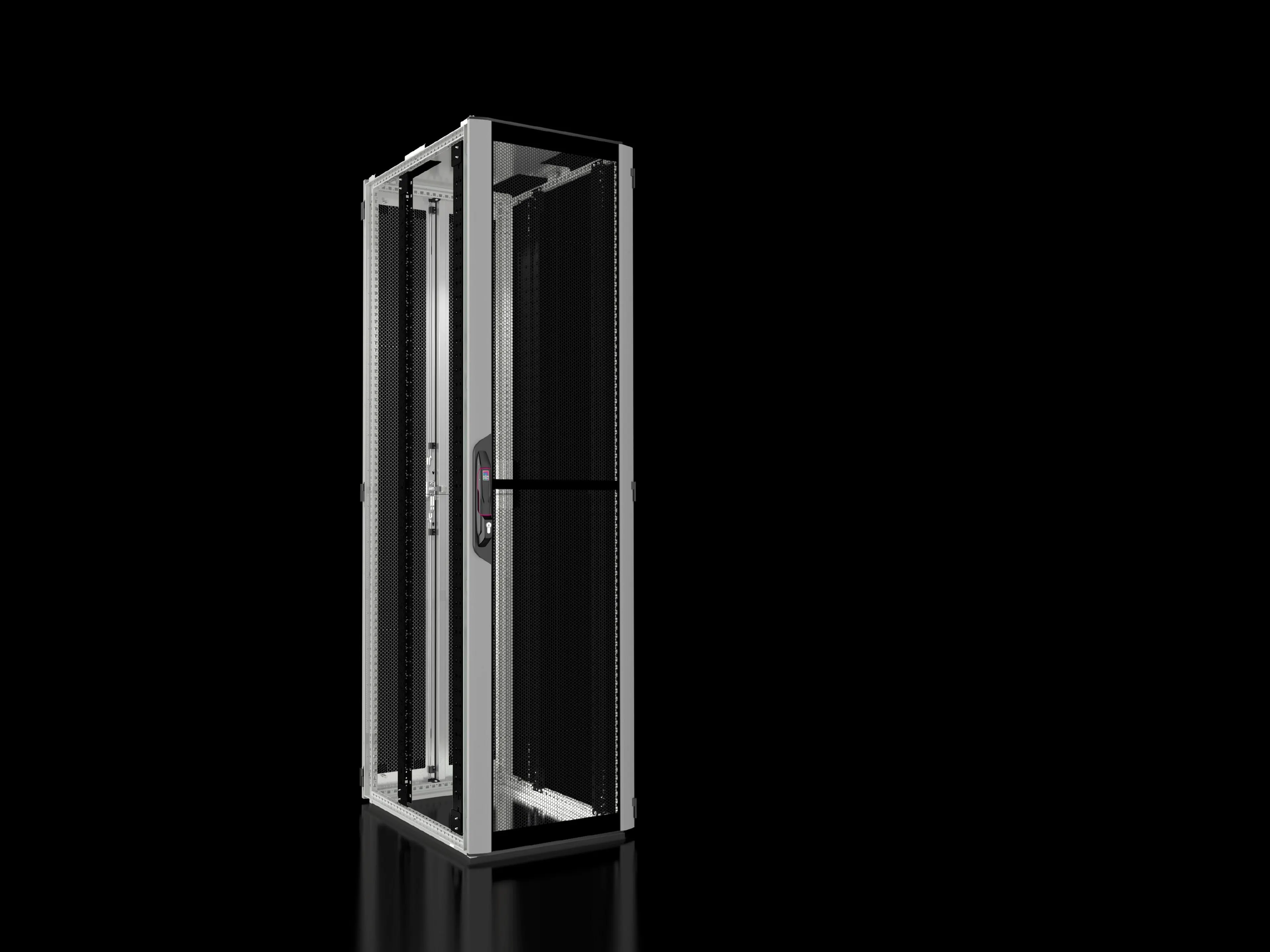

Rittal VX 5331.113 IT Enclosure - 47U, Ventilated 19 inch
Part Number: 5331113
Quick Summary
Rittal VX IT enclosure securely houses IT equipment for data centers and server rooms. It tackles space, ventilation, and cable routing challenges in a standard 47U, vented cabinet designed for reliable, scalable deployments. Certification data is not provided in this dataset; consult the official datasheet for CE, IP, or SIL ratings to confirm compliance. The unit uses 19 inch mounting angles front and rear, offering robust build quality, compatibility with standard racks, and scalable IT housing for growing infrastructure. With a durable frame finished in RAL 7035 and dual vented doors, it supports efficient cooling and secure access, helping IT teams reduce risk and accelerate deployment in data centers and industrial environments.
Product Information
Extended Description
5331113 Rittal: VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 600 x 2200 x 800 mm, 47 U
Article number
VX 5331.113
Design
Standard | Vented | with 482.6 mm (19") mounting angles
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RALÂ 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RALÂ 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated) | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear | Sheet steel rear door, vented, vertically divided, 180° hinges
Dimensions
Width:Â 600 mm | Height:Â 2,200 mm | Depth:Â 800 mm
Units
47 U
Units
47 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 193 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
80 kg
PCF per pack (cradle-to-gate)
197.1Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945593
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 600 x 2200 x 800 mm, 47 U
Feature → Business Impact → Application: The VX IT enclosure’s 47U form factor maximizes rack density while maintaining ample internal space for cable management and airflow; this translates to higher usable compute capacity per cabinet and lower total rack footprint in data centers. Feature → Business Impact → Application: Front and rear vented doors with a high perforation rate enable effective passive cooling, reducing reliance on active cooling and trimming energy costs in server rooms and telecom closets. Feature → Business Impact → Application: 482.6 mm (19 inch) mounting angles, standard in the VX IT, ensure compatibility with a broad ecosystem of servers, switches, and storage devices, enabling rapid carrier-grade installations in automation cells. Feature → Business Impact → Application: High-quality materials (sheet steel exterior, aluminum components) deliver durability in demanding environments, minimizing maintenance cycles and extending cabinet life in manufacturing floors. Feature → Business Impact → Application: Integrated security features, including front and rear locking mechanisms and robust hinges, protect sensitive equipment in shared spaces, suitable for data centers and industrial facilities. Feature → Business Impact → Application: Comprehensive accessories (spacers for passive cooling, mounting brackets, fasteners) simplify installs and elevate cooling performance, reducing project risk and total cost of ownership. Feature → Business Impact → Application: The enclosure’s load capacity (up to 15,000 N, 12,000 N static per UL 2416) supports dense equipment configurations, ensuring stability and long-term expansion without cabinet replacement. Feature → Business Impact → Application: Roof plate with cable entry and door design considerations optimize cable routing and serviceability, improving maintenance efficiency in high-traffic IT rooms and automation cabinets.
Get a Quick Quote for a Rittal 5331113
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5331113?
Enquire Now
FAQs
The VX IT enclosure ships with 482.6 mm (19") mounting angles pre-mounted to the frame. To install, align the enclosure with the rack rails, secure the top and bottom mounting brackets using the provided screws, and verify front and rear mounting points are level. Utilise the spacers if you need to raise the cover plate for additional cooling or cable management clearance. Ensure cables are routed through the roof plate entry points to maintain airflow and avoid obstructing doors.
This VX IT enclosure has a rated load capacity of up to 15,000 N, with a static maximum of 12,000 N per UL 2416. For dense configurations, distribute weight evenly and plan for eventual equipment upgrades by leaving adequate clearance for airflow at the front and rear. Weight per pack is 80 kg, and the unit uses rugged sheet steel with aluminum components to balance strength and manageability in industrial environments.
Yes. The VX IT is a 47U, vented 19" enclosure with front and rear doors, designed to house IT gear in data centers as well as control hardware in automation cells. The standard mounting angles, cable management options, and robust locking system support both IT and control cabinet workloads. Its dimensions (600 mm width, 2,200 mm height, 800 mm depth) provide ample internal space for a variety of equipment, including network switches and PLC/IPC racks.
The provided data set includes ETIM 9 and ETIM 8 as classification references and ECLASS 8.0, but explicit CE, IP, or SIL certifications are not listed. For definitive regulatory compliance details, refer to the official product datasheet or contact Rittal support to confirm CE marking, IP rating, and any industry-specific certifications required for your application.
The VX IT enclosure supports passive cooling options via its roof plate and spacers, which can reduce energy consumption by improving airflow. Durable construction minimizes maintenance intervals, and the straightforward 19" mounting system accelerates installation and reconfiguration, translating to lower labor costs and faster deployment in both IT and automation environments. ECO-conscious features like a defined PCF value also aid in lifecycle assessment and sustainability reporting.
