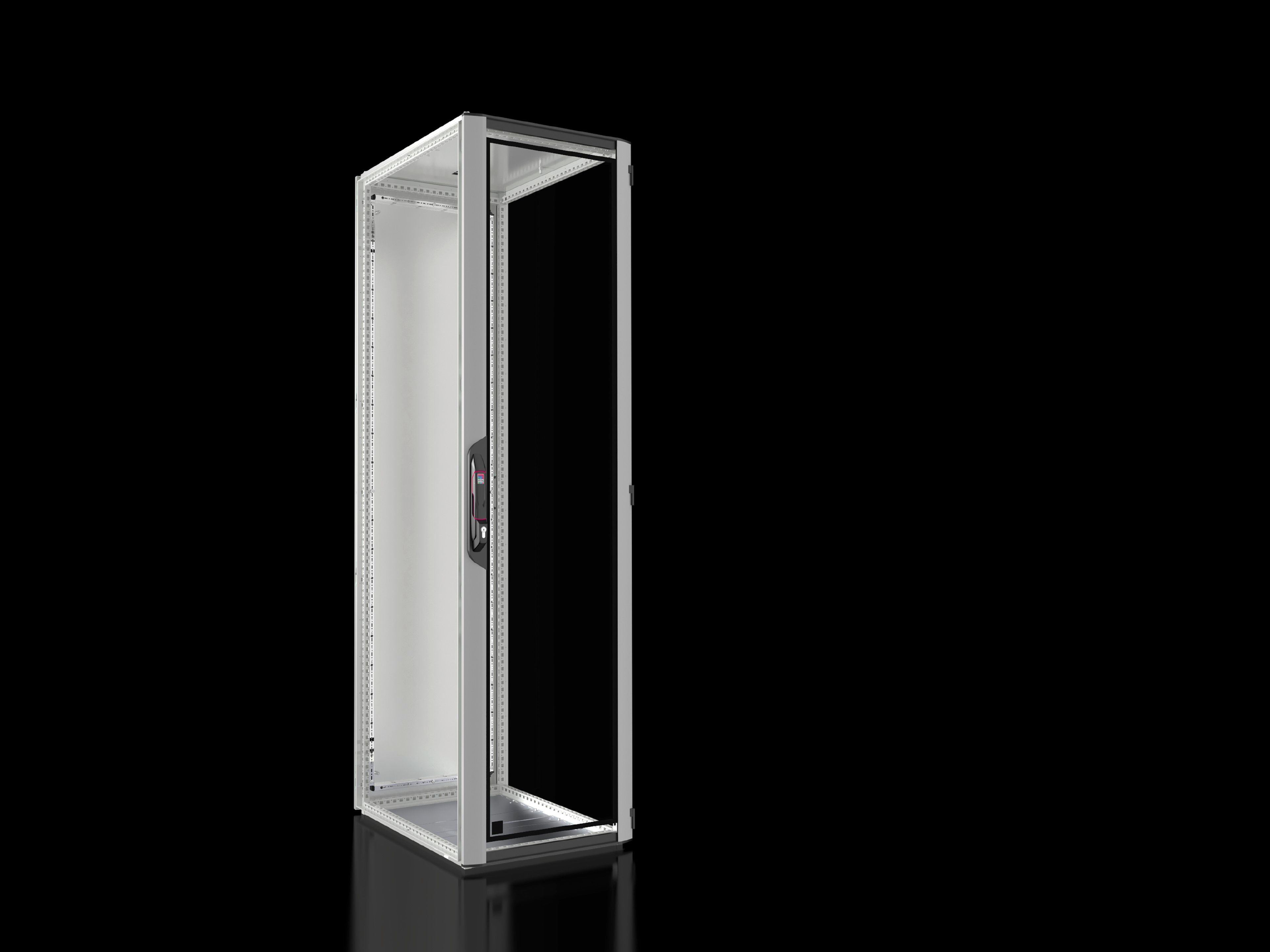

Rittal VX 5331.190 VX IT Enclosure - IP55
Part Number: 5331190
Quick Summary
Rittal VX 5331.190 is a climate-controlled IT enclosure for protecting sensitive hardware in industrial automation environments. End users often struggle with dusty, moisture-prone cabinets that interrupt service and threaten uptime. This VX IT enclosure offers IP55 protection and IK08 impact resistance, a glazed front for quick inspection, and a 47U layout to maximize rack capacity. Together with compatible base tray and gland plate options, it delivers scalable, compliant, and maintenance-friendly infrastructure for control panels and IT gear.
Product Information
Extended Description
5331190 Rittal: VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 2200 x 800 mm, 47 U, IP 55
Article number
VX 5331.190
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Sheet steel rear door, solid, one-piece, 130° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Roof plate, one-piece, solid | Base tray with gland plate, multi-piece, solid | Baying seal and sealing kit for gland plates (supplied loose) | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet
Dimensions
Width: 600 mm | Height: 2,200 mm | Depth: 800 mm
Units
47 U
Units
47 U
Roof design
one-piece, solid
Rear door design
Sheet steel door, solid, one-piece, 130° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
without
Base design
Base tray with gland plate, multi-piece, solid
Mounting angles position
without
Protection category to IEC 60 529
IP 55 only in conjunction with baying seal or screw-fastened side panels
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
86.5 kg
PCF per pack (cradle-to-gate)
213.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945609
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 2200 x 800 mm, 47 U, IP 55
IP55 protection with IK08 impact resistance ensures robust enclosure performance in dusty and moist factory floors, reducing maintenance calls and protecting critical equipment. This directly translates to fewer downtime events and lower total cost of ownership for industrial automation systems, data acquisition cabinets, and process control cabinets. The 47U interior capacity enables higher rack density, minimizing cabinet footprints and streamlining spare-part logistics across production lines. A glazed aluminium front door enables rapid visual checks without opening the cabinet, cutting service time during changeovers and improving operator responsiveness in automated environments. The base tray with gland plate and supplied gland kit simplifies cabling, sealing, and entry management, accelerating installation and future expansions. Durable sheet steel core with powder-coated rear surfaces offers long-term corrosion resistance while preserving enclosure aesthetics in demanding environments. Included 19" fasteners and modular mounting hardware support straightforward integration with existing 19" rack systems, even when interior installations are planned for later.
Get a Quick Quote for a Rittal 5331190
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5331190?
Enquire Now
FAQs
VX 5331.190 is designed as a 47U front-rack enclosure that ships with 19 inch mounting hardware for easy integration into standard 19" rack systems. While the unit is specified without a 482.6 mm interior installation, the included fasteners and gland plate support straightforward future interior mounting and expansion as requirements evolve on the shop floor or in retrofit projects.
IP55 protection means the enclosure is protected against limited dust intrusion and water jets from any direction. In the VX 5331.190, this rating is achieved in conjunction with baying seals or side panels, ensuring reliable operation in dusty industrial environments and damp areas typical of manufacturing and automation setups.
The unit is supplied without a 482.6 mm (19") interior installation, but it includes 19" fasteners and a gland plate kit to support interior mounting when needed. This design offers flexibility for immediate external protection while allowing interior 19" equipment to be added later as racks are expanded or reconfigured.
Common applications include process automation cabinets, control panels, and IT equipment enclosures in harsh manufacturing environments. The glazed front door allows quick visual inspection, while the IP55/IK08 protection and 47U capacity support dense rack layouts for PLCs, drivers, DCS components, and critical IT hardware in production floors and near-line installations.
The rugged construction and integrated gland plate simplify cable management and sealing, reducing downtime during maintenance and expansions. Higher uptime, easier servicing, and scalable rack capacity translate into lower total cost of ownership and faster deployment in new lines or retrofits, delivering a measurable return on investment for automation projects.
