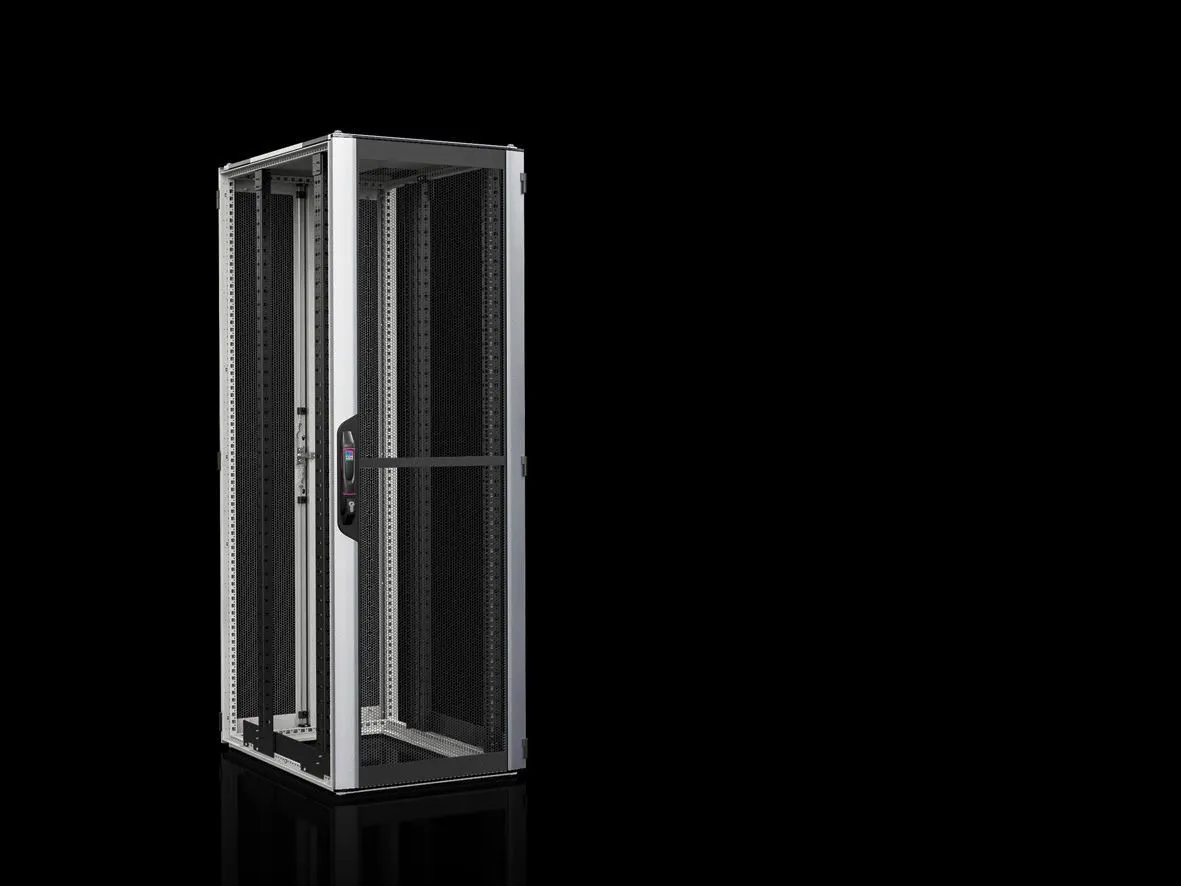

Rittal VX 5332.818 VX IT Enclosure - Dynamic 52U
Part Number: 5332818
Quick Summary
Rittal VX IT network/server enclosure is designed to house IT gear in data centers. Users struggle with hot spots, cramped cabling, and limited airflow in dense deployments. UL 2416 compliant static load rating and ventilated front and rear doors support reliability in demanding environments, while the powder-coated frame and anodised front doors extend service life. The enclosure integrates with standard 19-inch racks and supports dynamic mounting angles for flexible configurations. For procurement and maintenance teams, a single enclosure can simplify asset management, cabling strategies, and airflow planning, delivering space efficiency and energy-conscious operation.
Product Information
Extended Description
5332818 Rittal: VX IT network/server enclosure dynamic, WHD: 600 x 2450 x 1200 mm, 52 U, aluminium / sheet steel door, ventilated at the front, sheet steel door ventilated at the rear, vertically divided, 180° hinges front and rear
Article number
VX 5332.818
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Powder-coated | Interior installation: Spray-finished | Rear door and roof: Powder-coated | Front door: Aluminium, anodised, sheet steel powder coated
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated), vertically divided, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear
Dimensions
Width: 600 mm | Height: 2,450 mm | Depth: 1,200 mm
Units
52 U
Units
52 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 325 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
725 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and on depth stays at the bottom
Design
dynamic
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
Dynamic 482.6 mm (19") mounting angles in the VX IT
Base design
Open
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
18,000 N
Max. load capacity (static) per enclosure to UL 2416
15,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
101.9 kg
PCF per pack (cradle-to-gate)
251.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945616
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT network/server enclosure dynamic, WHD: 600 x 2450 x 1200 mm, 52 U, aluminium / sheet steel door, ventilated at the front, sheet steel door ventilated at the rear, vertically divided, 180° hinges front and rear
Dynamic 482.6 mm (19 inch) mounting angles in the VX IT enclosure deliver flexible, depth-safe mounting for 19” equipment. This design minimizes misalignment and vibration, extending component life and reducing maintenance intervals. It’s particularly beneficial in data centers and server rooms where upgrades happen regularly. Ventilated front and rear doors (approximately 85% perforated) enable improved airflow with passive cooling. The result is lower inlet temperatures, fewer hotspots, and reduced fan power, which translates to energy savings and longer hardware life. Suitable for dense compute clusters and storage arrays in IT rooms with variable heat loads. The 52 U inner height with width 600 mm and depth 1200 mm provides substantial mounting space and easy scalability. Free mounting space to 482.6 mm level front and rear (150 mm / 325 mm) allows cable management and accessory installation without sacrificing access. The 725 mm distance between levels supports diverse server heights. Material combination of sheet steel and aluminium with powder-coated frame and anodised front doors delivers durability in challenging environments. It supports heavy loads up to 18,000 N and up to 15,000 N static per UL 2416, ensuring the enclosure maintains alignment with heavier equipment. Comprehensive supply includes: enclosure frame with doors and roof plate, vented front/rear doors, hinges, lock handles, mounting angles, spacers, fasteners, and, cables. This reduces on-site procurement time, accelerates deployment, and lowers total cost of ownership (TCO) by simplifying installation and future migrations. Compliance and compatibility considerations: the unit is specified with ETIM 9 EC002499 and ECLASS 8.0 27180207 classifications; its 19” mounting and 482.6 mm level alignment integrate with standard rack systems and accessories.
Get a Quick Quote for a Rittal 5332818
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5332818?
Enquire Now
FAQs
VX 5332.818 uses dynamic 482.6 mm (19 inch) mounting angles designed for standard 19" equipment. With 52U of space and front/rear mounting support, it integrates seamlessly with common rack rails, spacers, and cable management accessories, enabling straightforward upgrades and flexible terminations in data centers and server rooms.
The enclosure is rated for up to 18,000 N load capacity, with a static per-enclosure limit of 15,000 N per UL 2416. This provides ample margin for dense server stacks, storage arrays, and power distribution hardware while preserving cabinet alignment and door integrity.
Yes. The front door is aluminium/sheet steel and vented (about 85% perforated), with a rear vented door as well, supporting effective airflow. Paired with 482.6 mm mounting and interior spacing, it facilitates passive cooling and reduces hot spots, contributing to lower fan speeds and energy usage in variable workload scenarios.
The enclosure supports industry-standard classifications such as ETIM 9 EC002499 and ECLASS 8.0 27180207. It also provides UL 2416-compliant static load capabilities for safe heavy equipment deployment. While specific CE IP ratings aren’t listed in this dataset, the product’s construction and certifications align with common European and North American IT cabinet requirements.
The package includes 482.6 mm (19") mounting angles, spacers (height 50 mm), 12 x 482.6 mm fasteners, 25 multi-tooth screws, and other hardware. These components support immediate commissioning, reduce on-site hunting for compatible parts, and shorten deployment time while ensuring the enclosure remains robust under heavy loads.
