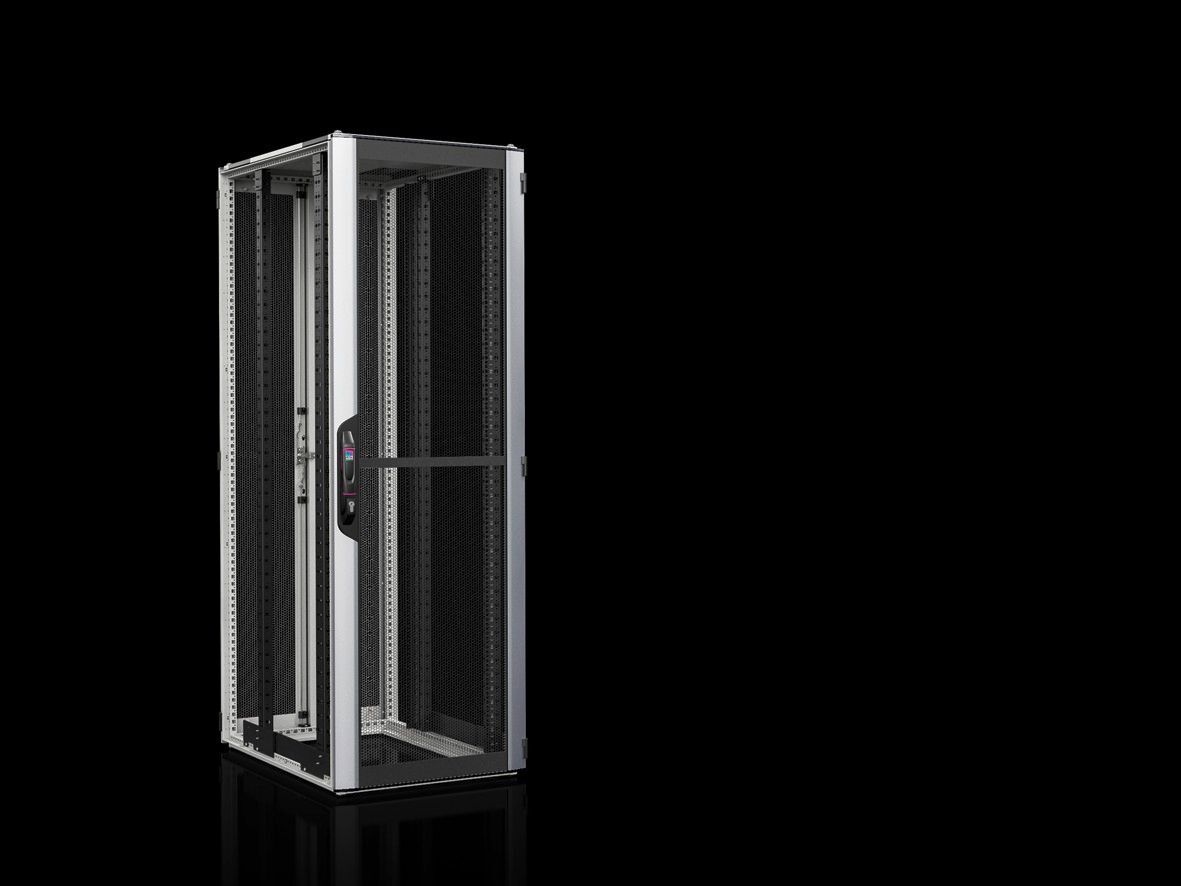

Rittal VX 5333.816 IT Enclosure - Dynamic Ventilated 52U
Part Number: 5333816
Quick Summary
The Rittal VX 5333.816 IT enclosure protects network equipment in data centers and IT rooms. Tight spaces, heat buildup, and complex cable routing often slow deployment and threaten uptime. Critical certifications to verify for equipment cabinets generally include CE conformity and appropriate IP ratings; consult the VX 5333.816 datasheet for confirmed values. With dynamic 482.6 mm (19") mounting rails and 52U capacity, it supports scalable IT infrastructure and helps tighten space planning and cooling efficiency in data center applications. Secondary considerations include 19" mounting compatibility, modular fan-ready roof, and practical access for service and expansion in challenging environments.
Product Information
Extended Description
5333816 Rittal: VX IT network/server enclosure dynamic, WHD: 800 x 2450 x 1200 mm, 52 U, aluminium / sheet steel door, ventilated at the front, sheet steel door ventilated at the rear, vertically divided, 180° hinges front and rear
Article number
VX 5333.816
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Powder-coated | Interior installation: Spray-finished | Rear door and roof: Powder-coated | Front door: Aluminium, anodised, sheet steel powder coated
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated), vertically divided, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Dimensions
Width: 800 mm | Height: 2,450 mm | Depth: 1,200 mm
Units
52 U
Units
52 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 325 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
725 mm
482.6 mm (19") attachment
on depth stays, screw-fastened at the top and bottom
Design
dynamic
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
Dynamic 482.6 mm (19") mounting angles in the VX IT
Base design
Open
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
18,000 N
Max. load capacity (static) per enclosure to UL 2416
15,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
121.7 kg
EAN
4028177945623
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT network/server enclosure dynamic, WHD: 800 x 2450 x 1200 mm, 52 U, aluminium / sheet steel door, ventilated at the front, sheet steel door ventilated at the rear, vertically divided, 180° hinges front and rear
Large 52U IT enclosure provides ample rack space, enabling consolidated equipment and streamlined cable management, which reduces deployment time and downtime risk in data center environments. The dynamic 482.6 mm (19") mounting rails offer front and rear positioning, increasing installation flexibility for mixed equipment such as servers, switches, and storage arrays while lowering total installation costs. Front and rear vented doors promote improved airflow and passive cooling, supporting higher thermal efficiency and energy savings across dense IT cabinets. A robust load capacity of up to 18,000 N (with UL 2416 static rating at 15,000 N) ensures long-term stability for high-density gear and future upgrades, minimizing rework and ensuring compliance with heavy-duty data center standards. Supplied components—mounting angles, spacers for roof fan mounting, and multiple fasteners—simplify on-site assembly and reduce vendor coordination efforts. The enclosure design also supports fan installation plates and side cable entries, which accelerates thermal management optimization during expansion projects and new deployments in data centers and network rooms.
Get a Quick Quote for a Rittal 5333816
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5333816?
Enquire Now
FAQs
Begin by aligning 482.6 mm (19") mounting rails front and rear to the enclosure frame. Use the supplied 12 x 482.6 mm fasteners and 25 multi-tooth screws to secure rails, then mount the enclosure onto the rack structure. Install spacers as needed for the roof fan plate and verify 150 mm front and 325 mm rear free mounting space for eventual cable management and airflow. The 180° hinges on both doors simplify installation in tight rooms and allow quick service access.
The enclosure is 800 mm wide, 2,450 mm high, and 1,200 mm deep, providing 52 U of mounting space. It uses 482.6 mm (19") mounting levels front and rear and is designed for dynamic rail positioning. The 52U capacity supports dense IT gear, while the maximum load capacity of 18,000 N ensures structural integrity for heavy configurations.
Yes. The front aluminium/sheet steel door and rear sheet steel door are vented (front door ≈85% perforated; rear door vented), with a roof plate prepared for fan mounting. The design supports side cable entry and a roof-mounted fan, enabling efficient passive and active cooling. This makes it ideal for servers, switches, and storage with heat dissipation requirements.
Rittal provides multiple downloads for VX 5333.816, including a printable PDF page, and language-specific installation instructions (CS/DE/EN; DE/EN/FR; ES; PL; RU). These resources cover assembly, wiring guidance, and safety notes, helping procurement and technicians verify install steps before on-site work.
The enclosure uses sheet steel and aluminium hardware, with a combined weight of 121.7 kg per pack. It features a powder-coated frame and spray-finished interior, along with 180° hinge doors. The unit is referenced with ETIM EC002499 and ECLASS 27180207 classifications, and UL 2416 load ratings are specified for static applications, supporting predictable performance and lower lifecycle maintenance costs.
