Rittal VX 5334.813 VX IT Enclosure - 52U Dynamic
Part Number: 5334813
Quick Summary
Rittal VX 5334.813 VX IT enclosure provides ventilated network/server housing for data centers and edge IT. Engineers struggle with space optimization, cooling, and cable routing in expanding IT racks. Key standards supporting reliable deployment include UL 2416 load criteria; ETIM 9 EC002499 and ECLASS 8.0 27180207 classifications aid procurement and integration. Designed for data centers and edge deployments, it delivers robust airflow, modular mounting, and scalable 52 U capacity. Leverage the VX IT enclosure to improve uptime, simplify installation, and meet evolving IT infrastructure requirements.
Product Information
Extended Description

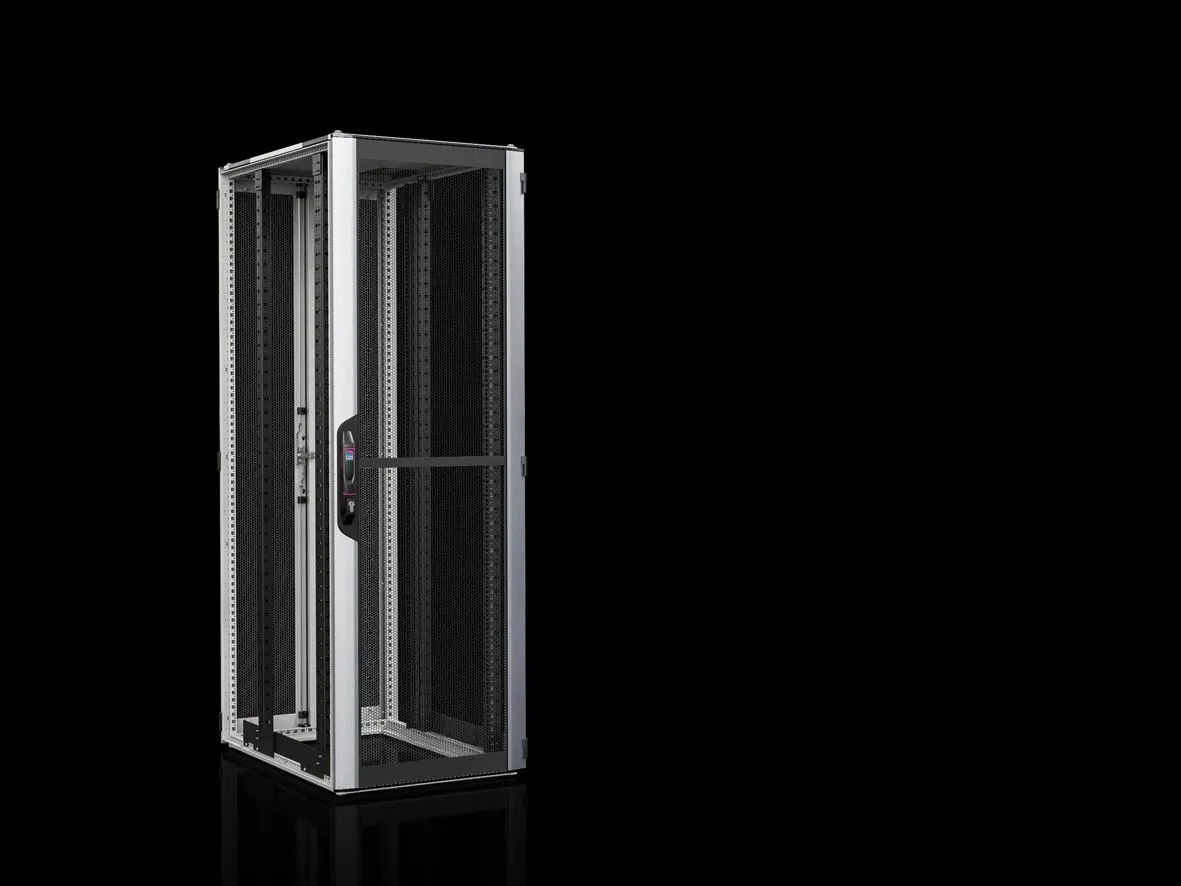

5334813 Rittal: VX IT network/server enclosure dynamic, WHD: 600 x 2450 x 1000 mm, 52 U, aluminium / sheet steel door, ventilated at the front, sheet steel door ventilated at the rear, vertically divided, 180° hinges front and rear
Article number
VX 5334.813
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Powder-coated | Interior installation: Spray-finished | Rear door and roof: Powder-coated | Front door: Aluminium, anodised, sheet steel powder coated
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated), vertically divided, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear
Dimensions
Width: 600 mm | Height: 2,450 mm | Depth: 1,000 mm
Units
52 U
Units
52 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 213 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
700 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
dynamic
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
Dynamic 482.6 mm (19") mounting angles in the VX IT
Base design
Open
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
18,000 N
Max. load capacity (static) per enclosure to UL 2416
15,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
96.8 kg
PCF per pack (cradle-to-gate)
238.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945630
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT network/server enclosure dynamic, WHD: 600 x 2450 x 1000 mm, 52 U, aluminium / sheet steel door, ventilated at the front, sheet steel door ventilated at the rear, vertically divided, 180° hinges front and rear
Feature: Front and rear ventilation with vented doors improves airflow and cooling efficiency. Business Impact: reduces thermal buildup, enables higher cabinet density, and lowers fan power; Application: data centers and edge IT environments. Feature: Dynamic 482.6 mm (19") mounting angles front and rear provide flexible mounting options. Business Impact: simplifies alignment, shortens installation time, and supports easy reconfiguration for changing equipment loads; Application: telecom rooms and retrofit installations. Feature: 52 U interior space with WHD 600 x 2450 x 1000 mm supports large servers and storage, enabling compliant 19" equipment layouts. Business Impact: maximizes rack capacity while maintaining serviceability; Application: enterprise data centers and edge computing nodes. Feature: High load capacity of 18,000 N dynamic (15,000 N static per UL 2416) ensures structural safety for heavy equipment. Business Impact: reduces risk of rack failure, supports high-demand equipment, and extends hardware life; Application: mission-critical IT deployments. Feature: Complete supply including front and rear doors, roof plate, mounting hardware, and spacers for passive cooling accelerates deployment. Business Impact: lowers field part counts, speeds integration, and supports efficient cooling strategies; Application: turnkey IT network installations.
Get a Quick Quote for a Rittal 5334813
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5334813?
Enquire Now
FAQs
To install the VX 5334.813, use the dynamic 482.6 mm (19-inch) mounting angles mounted top and bottom of the frame, and secure with the supplied 12 x 482.6 mm fasteners (conductive). Maintain the 700 mm level spacing between rows and use the 50 mm spacers to raise a cover plate above the roof fan cut-out for passive cooling. The front and rear doors hinge 180 degrees for flexible access during setup.
Key specs include a 52 U interior, dimensions 600 mm width x 2,450 mm height x 1,000 mm depth, vented front aluminium/sheet steel door and vented rear sheet steel door, 180° hinges on both doors, dynamic 482.6 mm (19") mounting angles, and a weight of 96.8 kg per pack. It supports up to 18,000 N dynamic load (15,000 N static per UL 2416).
Yes. The VX IT enclosure is designed for data centers and edge IT installations, offering front and rear ventilation, 52 U capacity, and flexible mounting options. Its modular design supports scalable rack configurations, efficient airflow management, and straightforward integration with standard 19-inch equipment commonly used in data centers and edge computing projects.
The enclosure aligns with UL 2416 load criteria for dynamic and static capacity, supporting safe installation of heavy IT equipment. It is cataloged with ETIM 9 EC002499 and ECLASS 8.0 27180207 classifications to facilitate interoperability and procurement workflows. Packaging uses an IPPC pallet, and the design supports CE-related regulatory expectations in typical IT environments.
Each pack contains 1 unit with a total weight of 96.8 kg. The packaging is an IPPC pallet arrangement designed for stable transport, and the unit includes all essential mounting angles, spacers, and fasteners necessary for installation, reducing field assembly time and ensuring consistent delivery quality.
