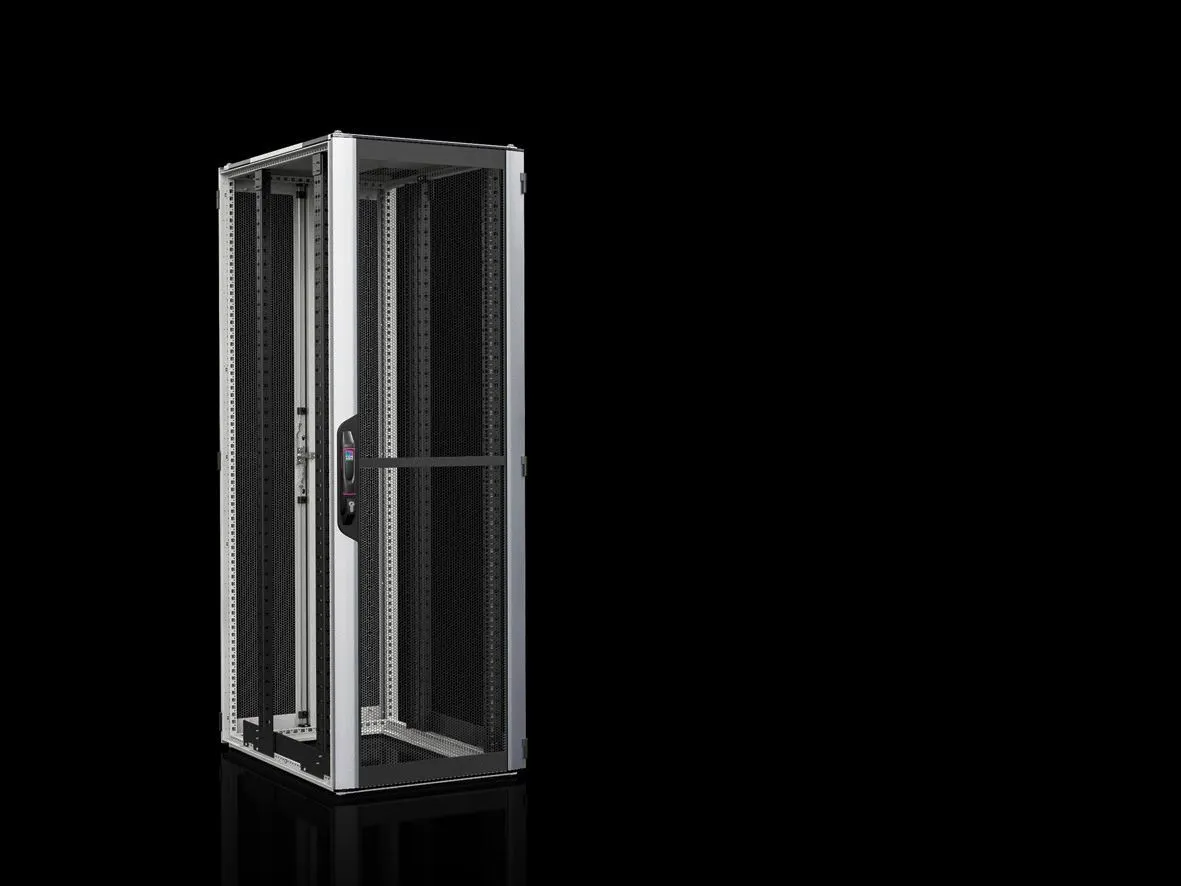

Rittal VX 5335.816 VX IT Network Enclosure - Dynamic 52U
Part Number: 5335816
Quick Summary
VX IT network/server enclosure dynamics provide a robust cabinet solution for housing and ventilating IT gear in data centers and industrial facilities. When space is tight and cooling is critical, cable management and front/rear access can become bottlenecks without a flexible mounting and door system. It offers UL 2416 compatibility and aligns with ETIM 7.0 EC011217 and ECLASS 8.0 27180207 to support interoperability and procurement standards. The 52U footprint, 800 mm width, and 2450 mm height deliver scalable IT storage while vented doors and 180° hinges simplify maintenance. Durable powder-coated frames, combined with a high-quality aluminium/sheet steel door mix, enable reliable operation and easier serviceability in mixed data center and manufacturing environments.
Product Information
Extended Description
5335816 Rittal: VX IT network/server enclosure dynamic, WHD: 800 x 2450 x 1000 mm, 52 U, aluminium / sheet steel door, ventilated at the front, sheet steel door ventilated at the rear, vertically divided, 180° hinges front and rear
Article number
VX 5335.816
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Powder-coated | Interior installation: Spray-finished | Rear door and roof: Powder-coated | Front door: Aluminium, anodised, sheet steel powder coated
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated), vertically divided, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Dimensions
Width: 800 mm | Height: 2,450 mm | Depth: 1,000 mm
Units
52 U
Units
52 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 213 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
700 mm
482.6 mm (19") attachment
on depth stays, screw-fastened at the top and bottom
Design
dynamic
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
Dynamic 482.6 mm (19") mounting angles in the VX IT
Base design
Open
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
18,000 N
Max. load capacity (static) per enclosure to UL 2416
15,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
116.1 kg
PCF per pack (cradle-to-gate)
286 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945647
ETIM 7.0
EC011217
ECLASS 8.0
27180207
Product description
VX IT network/server enclosure dynamic, WHD: 800 x 2450 x 1000 mm, 52 U, aluminium / sheet steel door, ventilated at the front, sheet steel door ventilated at the rear, vertically divided, 180° hinges front and rear
Feature: Dynamic 482.6 mm (19") mounting angles enable front and rear installation flexibility. Benefit: Simplifies integration of diverse 19" equipment while maintaining airflow and load distribution. Application: Data centers, network rooms, telecom cabinets. The VX enclosure supports rapid swaps and future expansion with minimal rework. Feature: Front and rear vented doors with approximately 85% perforation and a rear vented door. Benefit: Improves front-to-back cooling, reduces hotspots, and supports higher density configurations. Application: High-density servers and network gear in industrial facilities. Feature: Generous internal clearances and a 700 mm level-to-level distance with 52U total. Benefit: Maximizes usable mounting space for racks, cables, and cooling accessories while preserving serviceability. Application: IT racks, equipment racks, and PLC/automation panels. Feature: Passive cooling compatibility with spacers and a roof plate prepared for a fan mounting plate. Benefit: Enables passive or minimal-active cooling strategies to cut energy use and noise. Application: Enclosures requiring energy-efficient thermal management. Feature: Robust construction with sheet steel, aluminium doors, and powder-coated frame. Benefit: Enhances longevity, corrosion resistance, and ease of maintenance. Application: Environments with variable humidity and exposure to industrial conditions.
Get a Quick Quote for a Rittal 5335816
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5335816?
Enquire Now
FAQs
The enclosure uses dynamic 482.6 mm (19") mounting angles in the VX IT system, with front and rear mounting positions. This supports both new installations and upgrades, simplifies cable routing, and ensures stable load distribution for mixed IT and automation hardware.
Yes. With front and rear vented doors (~85% perforated), 800 mm width, 2,450 mm height, and 52U capacity, it accommodates dense server, network, and industrial control equipment while promoting effective front-to-back cooling.
The cabinet is designed for up to 18,000 N dynamic load and up to 15,000 N static load per UL 2416, providing robust support for heavy and tall equipment deployments in mixed environments.
The VX 5335.816 features a front aluminum/sheet steel vented door with 180° hinges and a rear sheet steel vented door, vertically divided, also with 180° hinges, enabling full access from both sides for installation and maintenance.
Supplied components include the enclosure frame with doors and roof plate, 482.6 mm mounting angles, spacers for passive cooling under the roof, 12 x 482.6 mm fasteners, 25 multi-tooth screws, and a set of height spacers to tailor clearance above fan cut-outs for improved cooling strategies.
