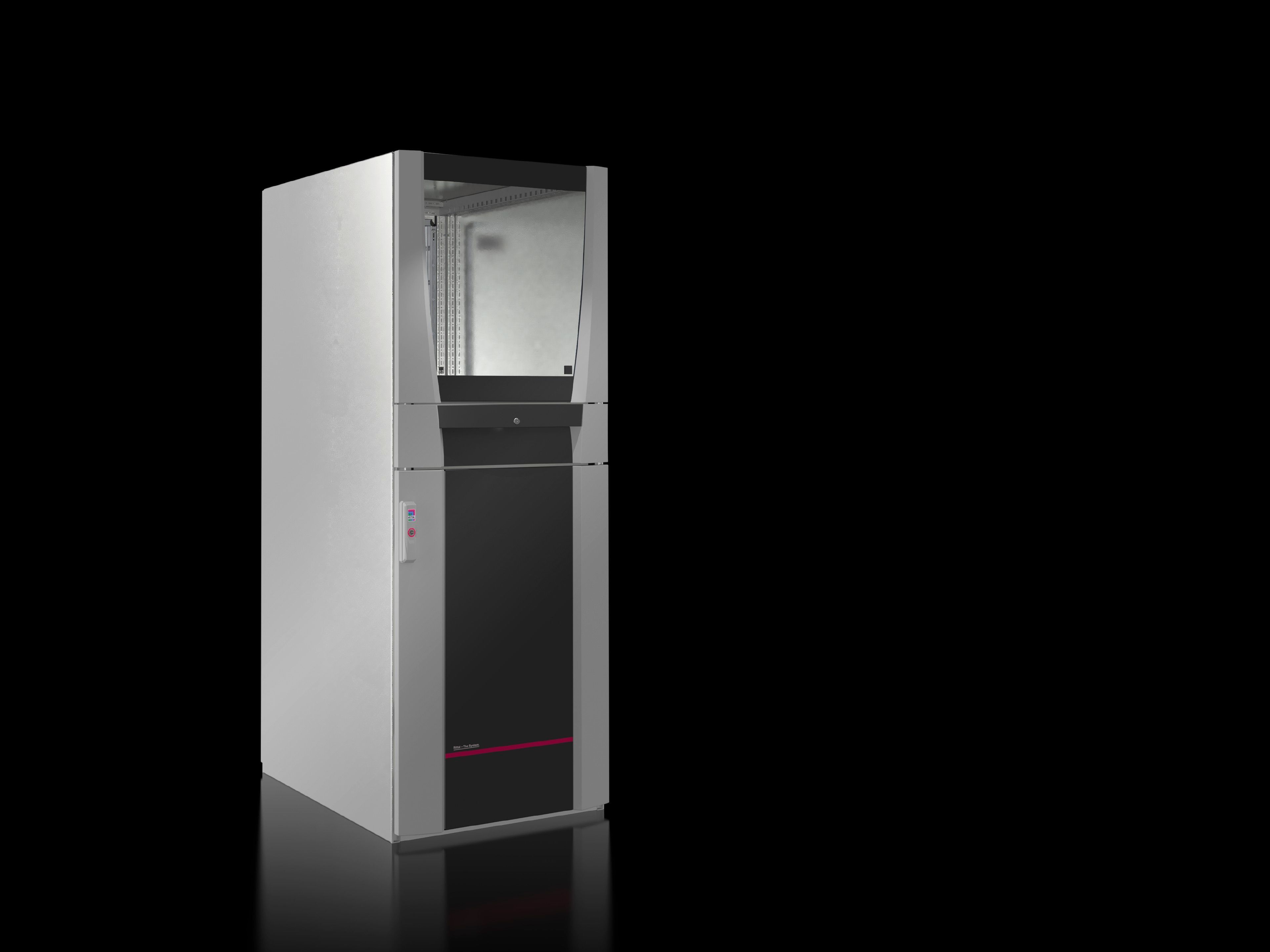

Rittal 5368050 PC Enclosure - IP55 & NEMA12 600x1600x836
Part Number: 5368050
Manufacturer
Rittal
Part number
5368050
Alt Part Number
PC 5368.050
Quick Summary
PC enclosure system from Rittal 5368050 secures monitors, PCs and keyboards in industrial HMI stations. In demanding factory environments, protecting sensitive electronics from humidity, dust and temperature fluctuations is essential to uptime and safety. This enclosure complies with IP55 protection, NEMA 12 cabinet standards and UL 50E Type 1, delivering regulatory alignment and dependable service life. Its robust sheet-steel body, dipcoat primed and powder-coated exterior in RAL 7035, with a glazed top door and integrated keyboard drawer, supports tidy wiring and simple maintenance. The included component shelf and mounting compartment simplify installation and future upgrades, while the ergonomic monitor panel improves operator efficiency without compromising security. Rittal's design language emphasizes reliability, standardization, and long-term cost savings in automation projects.
Product Information
Extended Description
5368050 Rittal: PC PC enclosure system, WHD: 600x1600x836 mm, sheet steel, with glazed door at the top, keyboard drawer, component shelf
Article number
PC 5368.050
Design
with glazed door at the top, keyboard drawer and component shelf
Product description
Secure accommodation of all PC components, from monitors, to PCs, to keyboards. For ultimate ease of operation in a modern design. Perfect protection from humidity and dirt, temperature fluctuations and unauthorised access.
Material
Enclosure, door, rear door, mounting compartment, supports: Sheet steel | Handles, decorative trim panels: Plastic | Door trim panels: Aluminium | Viewing window: Single-pane safety glass
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint
General colour
RAL 7035
Colour
Enclosure, door, decorative trim panels, supports: RAL 7035 | Handle: RAL 7015 | Monitor panel, door centre part: RAL 7015
Supply includes
Enclosure, door, rear door | Gland plates | Glazed door, top | Keyboard drawer | Component shelf
Dimensions
Width:Â 600 mm | Height:Â 1,600 mm | Depth:Â 836 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
Max. keyboard dimensions (WxHxD)
480 x 70 x 260 mm
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
111 kg
PCF per pack (cradle-to-gate)
422.9Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959446
ETIM 9
EC002502
ECLASS 8.0
27180501
Product description
PC PC enclosure system, WHD: 600x1600x836 mm, sheet steel, with glazed door at the top, keyboard drawer, component shelf
Feature → Business Impact → Application: Enclosure construction and finish use sheet steel with a dipcoat primer and powder-coated exterior in RAL 7035, delivering high durability and corrosion resistance in harsh factory environments; result is reduced maintenance costs and longer service life for automation cabinets. This supports dependable operation in control rooms and on the factory floor. Application: industrial enclosures that endure dust, humidity and temperature changes. Feature → Business Impact → Application: Integrated glazed door at the top, keyboard drawer and component shelf enable quick access and ergonomic workflow; impact is faster operator input, simplified maintenance, and cleaner cable management. Application: HMI stations and PC workstations in manufacturing lines. Feature → Business Impact → Application: IP55 protection and NEMA 12 compliance with UL 50E Type 1 ratings ensure regulatory alignment and equipment protection; impact is minimized risk of ingress, safer enclosures, and smoother compliance audits. Application: compliance-driven control panels and IT-integrated cabinets. Feature → Business Impact → Application: Includes gland plates and mounting components; impact is faster installation, modular upgrades and reproducible layouts across multiple lines. Application: scalable industrial deployments. Feature → Business Impact → Application: Max keyboard dimensions of 480 x 70 x 260 mm and a 600x1600x836 mm WHD footprint optimize space planning; impact is reliable fit with standard PC peripherals and efficient operator work zones. Application: standardized HMI and PC setups. Feature → Business Impact → Application: Weight of 111 kg per pack and a cradle-to-gate PCF of 422.9 kg CO2 eq (Cat B) support lifecycle planning and sustainability goals; impact is improved TCO calculations and greener automation projects. Application: sustainability-focused procurement and reporting.
Get a Quick Quote for a Rittal 5368050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5368050?
Enquire Now
FAQs
The enclosure measures 600x1600x836 mm and includes a max keyboard footprint of 480x70x260 mm, plus a keyboard drawer and component shelf. It supports monitors, PCs and keyboards with standard IT peripherals, and its mounting compartments accommodate common rack and panel layouts for streamlined integration.
It carries IP55 protection and NEMA 12 ratings, along with UL 50E Type 1 classification. These certifications confirm ingress protection against dust and water, suitable enclosure integrity for controlled environments, and compliance with electrical enclosure standards.
Yes. The sheet-steel enclosure is dipcoat primed and powder-coated outside for durability, with a robust design that guards against humidity, dust and temperature fluctuations typical of industrial facilities, helping maintain electronics reliability.
The glazed door at the top provides visual access while the keyboard drawer enhances ergonomic input, and the component shelf streamlines internal wiring and component access. These features reduce downtime and simplify routine maintenance in busy production environments.
The packing weight is 111 kg per unit, and the cradle-to-gate PCF is 422.9 kg CO2 eq (Cat B). This data supports life-cycle costing and sustainability reporting in procurement and regulatory submissions.
