Rittal 5386050 PC Enclosure System - IP55, NEMA 12
Part Number: 5386050
Manufacturer
Rittal
Part number
5386050
Alt Part Number
PC 5386.050
Quick Summary
Rittal 5386050 PC enclosure system securely houses PCs and peripherals for industrial control rooms. Operators face humidity, dirt ingress, and unauthorized access, which disrupt uptime and increase maintenance. This enclosure delivers IP55 protection, NEMA 12 suitability, and UL 50E Type 1 compatibility, providing rugged safety across harsh environments. With a glazed door at the top, integrated keyboard drawer, and a component shelf, it supports ergonomic, fast-operating workstations while protecting sensitive electronics. Its standardized color (RAL 7035) and robust sheet steel construction simplify plant-wide implementation, reduce spare-part variety, and enable compliant installations in automated lines.
Product Information
Extended Description

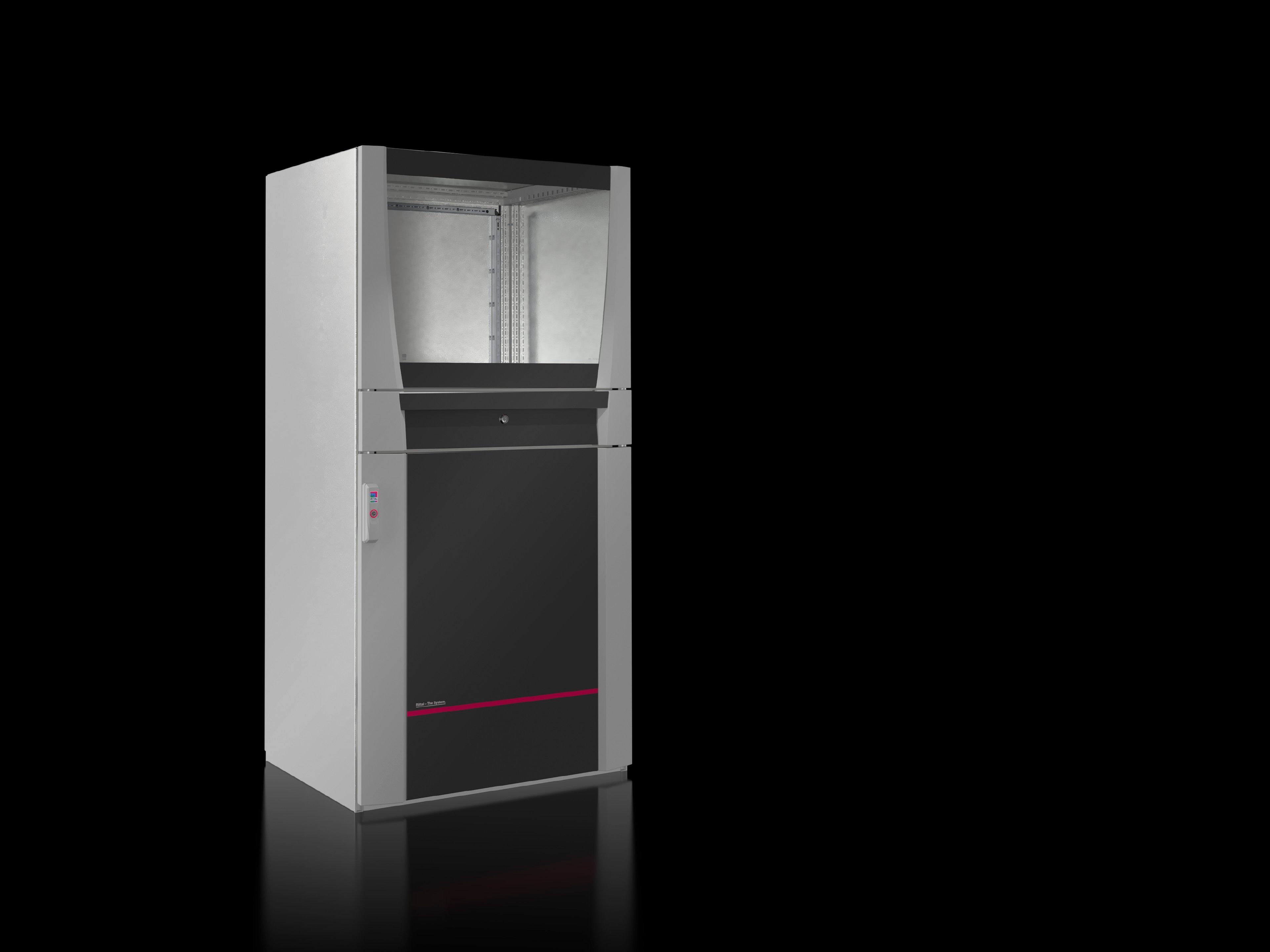

5386050 Rittal: PC PC enclosure system, WHD: 800x1600x600 mm, Sheet steel, with glazed door at the top, keyboard drawer, component shelf
Article number
PC 5386.050
Design
with glazed door at the top, keyboard drawer and component shelf
Product description
Secure accommodation of all PC components, from monitors, to PCs, to keyboards. For ultimate ease of operation in a modern design. Perfect protection from humidity and dirt, temperature fluctuations and unauthorised access.
Material
Enclosure, door, rear door, mounting compartment, supports: Sheet steel | Handles, decorative trim panels: Plastic | Door trim panels: Aluminium | Viewing window: Single-pane safety glass
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint
General colour
RAL 7035
Colour
Enclosure, door, decorative trim panels, supports: RAL 7035 | Handle: RAL 7015 | Monitor panel, door centre part: RAL 7015
Supply includes
Enclosure, door, rear door | Gland plates | Glazed door, top | Keyboard drawer | Component shelf
Dimensions
Width:Â 800 mm | Height:Â 1,600 mm | Depth:Â 636 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
Max. keyboard dimensions (WxHxD)
480 x 70 x 260 mm
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
117.6 kg
PCF per pack (cradle-to-gate)
448.1Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959477
ETIM 9
EC002502
ECLASS 8.0
27180501
Product description
PC PC enclosure system, WHD: 800x1600x600 mm, Sheet steel, with glazed door at the top, keyboard drawer, component shelf
Feature → Business Impact → Application: IP55 protection with NEMA 12 and UL 50E Type 1 compliance delivers reliable safeguarding of PC components in dusty, humid, and potentially tamper-prone environments, reducing unplanned downtime and extending equipment life in manufacturing and process automation. This translates to lower maintenance costs and higher line availability when deployed in control rooms and on factory floors. Feature → Business Impact → Application: Sheet steel construction with a textured powder-coated finish (RAL 7035) provides durable, corrosion-resistant enclosures that stand up to demanding industrial settings, enabling standardized plant aesthetics and easier corrosion management across multiple lines. Feature → Business Impact → Application: Glass-top glazed door, keyboard drawer, and component shelf streamline operator ergonomics and quick maintenance; the integrated workspace supports efficient HMIs, PC mounting, and rapid troubleshooting in high-throughput environments. Feature → Business Impact → Application: Generous internal layout (WHD 800x1600x600 mm) and included gland plates support flexible cable management and accessory mounting, reducing installation complexity and enabling rapid deployment of PC-based control systems on new lines or retrofits. Feature → Business Impact → Application: Weight of 117.6 kg per pack and a CO2e profile of 448.1 kg (Category B) reflect a robust, long-life solution with predictable maintenance needs and verifiable sustainability reporting, aiding procurement teams seeking greener automation. The combination of standard color, protective features, and included components minimizes custom sourcing, delivering faster ROI and consistent installation practices across plants.
Get a Quick Quote for a Rittal 5386050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5386050?
Enquire Now
FAQs
Plan for an 800x1600x600 mm footprint with 636 mm depth, account for cable entry via gland plates, and ensure mounting clearance. The unit weighs 117.6 kg per pack, so allocate appropriate handling equipment and secure anchoring. Use the glazed top door and keyboard drawer to optimize operator ergonomics during commissioning.
The enclosure accommodates a range of PC components, from monitors to PCs and keyboards, with a maximum keyboard footprint of 480x70x260 mm. Internal mounting compartments and shelves support flexible layout for HMIs, IPCs, and peripheral accessories while maintaining IP55/Dust protection.
Yes. It carries IP55 protection and NEMA 12 ratings, along with UL 50E Type 1 compliance, making it suitable for humid, dusty, and potentially tamper-prone industrial settings such as manufacturing floors and process control cabinets.
IP55 ensures dust and water spray protection, NEMA 12 addresses enclosure protection for indoor industrial use, and UL 50E Type 1 confirms electrical enclosure safety. Together, they enable compliant installation in regulated environments and support safer, longer-lasting automation infrastructure.
A robust, standardized enclosure reduces spare-part variety and simplifies maintenance schedules, improving uptime and reducing replacement costs. The 117.6 kg weight and 448.1 kg CO2e cradle-to-gate value reflect a durable asset with sustainable manufacturing credentials, enabling faster ROI through lower maintenance and downtime.
