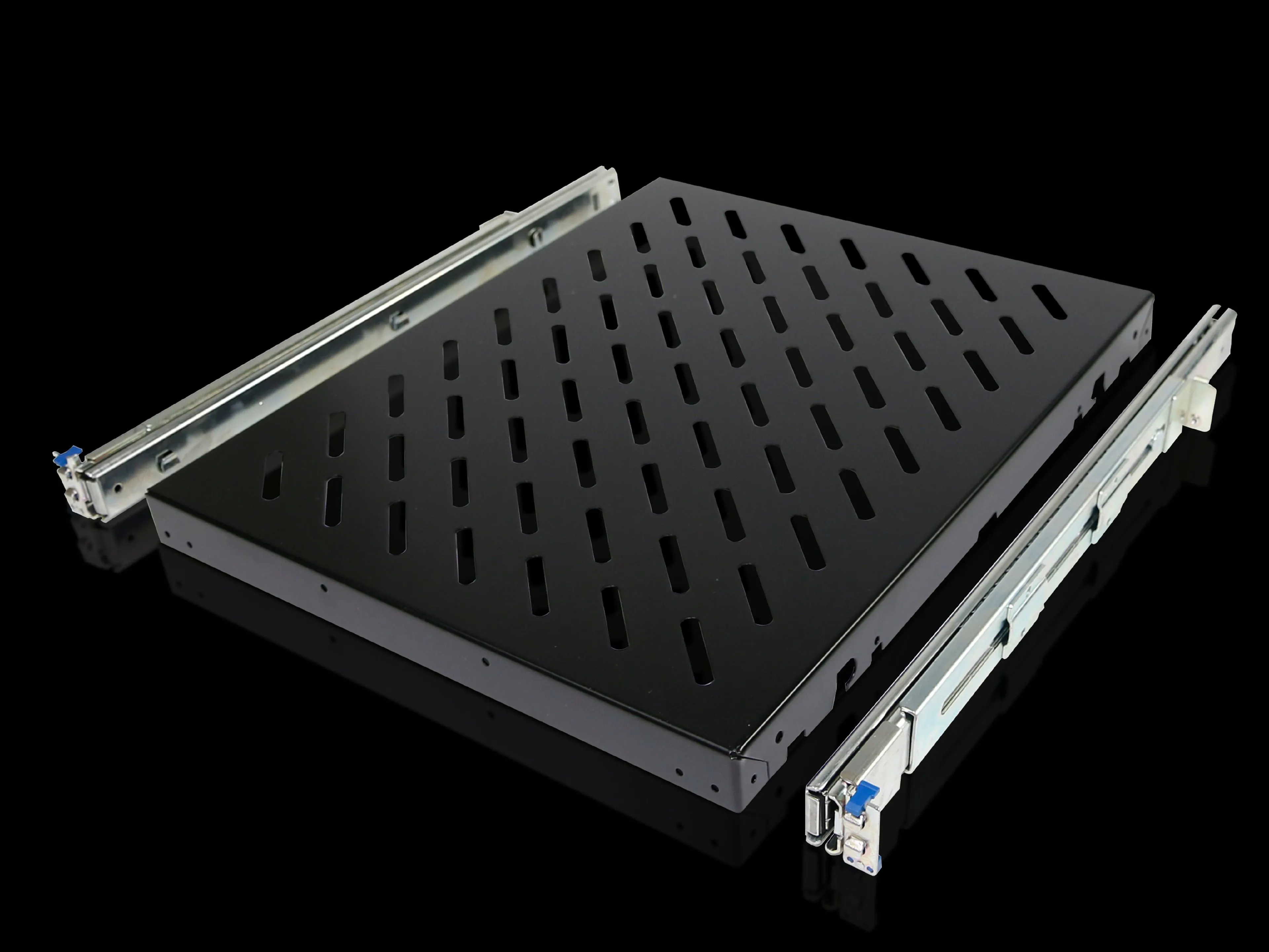

Rittal 5501675 DK Component shelf - 50 kg load
Part Number: 5501675
Quick Summary
Rittal DK Component shelf 5501675 is a pull-out, depth-variable mounting solution for 19-inch enclosure levels. Engineers often struggle with accessing back-row levels and aligning components inside crowded panels; this shelf enables front-access assembly, reducing maintenance strain. While explicit CE/SIL/IP certifications aren’t listed in the data, the product line follows Rittal standards and uses ETIM 7.0 EC002620 and ECLASS 8.0 27189261 classifications, with a robust sheet-steel construction and a RAL 9005 finish. This enclosure accessory delivers predictable support for VX IT, TS IT, TE, and TX CableNet systems, while offering ergonomic gains and streamlined procurement for industrial automation projects.
Product Information
Extended Description
5501675 Rittal: DK Component shelf, WHD: 419x1 Ux500 mm, 50 kg, distance between levels: 400-600 mm, Pull-out, RAL 9005
Article number
DK 5501.675
Product description
For mounting between two 482.6 mm (19”) mounting levels, on 482.6 mm (19”) mounting angles or 482.6 mm (19”) mounting frames.
Benefits
Tool-free, time-saving one-man assembly from the enclosure front
Applications
Depth-variable to adapt to individual distances between levels
Material
Sheet steel
Surface finish
Base: Spray-finished | Telescopic slides/installation kit: Zinc-plated
Colour
RAL 9005
Supply includes
Component shelf, slotted | Telescopic slide with mounting kit | Assembly parts
Load capacity
50 kg
Dimensions
Width: 419 mm | Depth: 500 mm
To fit
Enclosure type: VX IT | TS IT | TE | TX CableNet
Distance between levels
400 ‐ 600 mm
Packs of
1 pc(s).
Weight/pack
6.2 kg
PCF per pack (cradle-to-gate)
23.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177679115
ETIM 7.0
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WHD: 419x1 Ux500 mm, 50 kg, distance between levels: 400-600 mm, Pull-out, RAL 9005
Feature: Pull-out, front-access telescopic design. Business Impact: Enables tool-free, one-person installation and faster service from the enclosure front. Application: Ideal for routine maintenance and component swaps in dense 19" cabinets. Feature: Depth-variable level spacing (400–600 mm). Business Impact: Allows precise accommodation of varied equipment depths and cable management without reconfiguring mounting frames. Application: Suitable for mixed hardware layouts in VX IT and TS IT enclosures. Feature: Load capacity of 50 kg. Business Impact: Supports heavier devices, reducing the need for alternative, bulkier shelves and improving overall cabinet reliability. Application: Data and control components requiring solid mounting within standard 19" racks. Feature: Supplied with telescopic slide and mounting kit; assembly parts included. Business Impact: Simplifies installation, minimizes parts sourcing, and shortens project timelines. Application: Quick retrofit in field installations and factory floors. Feature: Material and finish (sheet steel, base spray finish, zinc-plated slides, RAL 9005). Business Impact: Delivers durable corrosion resistance and long service life in harsh environments. Application: Indoor industrial cabinet environments with consistent use and frequent door opening. Feature: Weight per pack and PCF data (6.2 kg per pack; 23.6 kg CO2 eq Cat B). Business Impact: Helps assess logistics, sustainability metrics, and cradle-to-gate emissions for procurement. Application: Preferred for eco-conscious projects and LCA documentation.
Get a Quick Quote for a Rittal 5501675
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5501675?
Enquire Now
FAQs
The DK 5501.675 component shelf is designed for 19-inch enclosures and fits VX IT, TS IT, TE, and TX CableNet frames. Its depth-variable design supports spacing between levels from 400 to 600 mm, enabling flexible integration within standard Rittal cabinets.
The pull-out telescopic slides allow front-access installation and service without interior enclosure rearrangement. This enables a one-person, tool-free operation, reducing maintenance time and minimizing enclosure openings during component swaps or inspections.
Key specs include a width of 419 mm, depth of 500 mm, and a load capacity of 50 kg. The distance between levels is adjustable from 400 to 600 mm. Each pack weighs 6.2 kg and includes the component shelf, telescopic slides with mounting kit, and installation parts.
The shipment includes the component shelf (slotted), a telescopic slide with mounting kit, and necessary assembly parts. The package is designed for straightforward field installation with minimal additional hardware required.
Yes. The product carries a cradle-to-gate PCF of 23.6 kg CO2 eq (Category B). The weight per pack is 6.2 kg, and the unit uses sheet steel with a zinc-plated telescopic slide, aligning with standard industrial procurement goals for durable, maintainable, and responsibly specified components.
