Rittal DK 5501.685 Component shelf - 50 kg load
Part Number: 5501685
Quick Summary
Rittal DK 5501.685 component shelf enables pull-out mounting between two 19-inch levels in VX IT, TS IT, TE and TX enclosures. This design minimizes maintenance downtime caused by fixed-shelf configurations and supports one-person operation from the enclosure front. While the data highlights ETIM 9 EC002620 and ECLASS 8.0 classifications, it does not list CE, IP or SIL marks; instead it references PCF category B for sustainability context. With a 50 kg load capacity and adjustable level spacing from 600 to 900 mm, the shelf accommodates diverse equipment and cable layouts. Its compatibility with 482.6 mm (19”) rails and included mounting hardware simplifies retrofits and project deployment, delivering faster commissioning and lower lifecycle costs.
Product Information
Extended Description
5501685 Rittal: DK Component shelf, WHD: 419x1 Ux700 mm, 50 kg, distance between levels: 600-900 mm, Pull-out, RAL 9005
Article number
DK 5501.685
Product description
For mounting between two 482.6 mm (19”) mounting levels, on 482.6 mm (19”) mounting angles or 482.6 mm (19”) mounting frames.
Benefits
Tool-free, time-saving one-man assembly from the enclosure front
Applications
Depth-variable to adapt to individual distances between levels
Material
Sheet steel
Surface finish
Base: Spray-finished | Telescopic slides/installation kit: Zinc-plated
Colour
RAL 9005
Supply includes

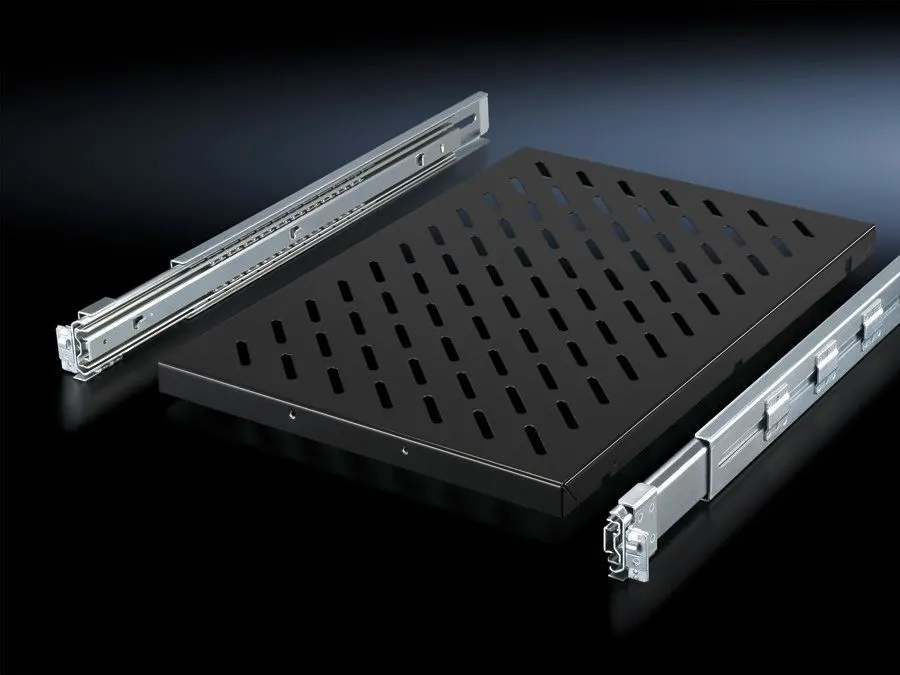

Component shelf, slotted | Telescopic slide with mounting kit | Assembly parts
Load capacity
50 kg
Dimensions
Width: 419 mm | Depth: 700 mm
To fit
Enclosure type: VX IT | TS IT | TE | TX CableNet
Distance between levels
600 ‐ 900 mm
Packs of
1 pc(s).
Weight/pack
8.5 kg
PCF per pack (cradle-to-gate)
32.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177679122
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WHD: 419x1 Ux700 mm, 50 kg, distance between levels: 600-900 mm, Pull-out, RAL 9005
Pull-out telescopic shelf with mounting kit reduces maintenance time by enabling tool-free, front-side access from the enclosure. This is particularly valuable in IT cabinets where panel swaps and cable reorganizations must be performed quickly without disassembly. Compatible with 482.6 mm (19”) mounting levels, it supports standard rails and frames for streamlined retrofits. The adjustable distance between levels, from 600 to 900 mm, provides depth-variable flexibility to match equipment height and cable layouts while improving airflow management. With a 50 kg load capacity, it supports common 19-inch equipment in compact footprints, maximizing enclosure real estate without sacrificing rigidity. The 419 x 700 mm footprint and RAL 9005 finish ensure a durable, professional enclosure appearance in industrial environments. The inclusion of slotted shelves and telescopic slides (zinc-plated) enhances corrosion resistance and long-term reliability. Tool-free assembly from the front reduces on-site labor and speeds commissioning, delivering tangible project savings.
Get a Quick Quote for a Rittal 5501685
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5501685?
Enquire Now
FAQs
The DK 5501.685 is designed for VX IT, TS IT, TE, and TX enclosures, using 482.6 mm (19") mounting levels or frames. It ships with a telescopic slide and mounting kit to ensure quick, secure installation without modification to existing rails.
The shelf is rated for a 50 kg load. It has a width of 419 mm and a depth of 700 mm (WHD 419x1 Ux700 mm), with a level-to-level spacing adjustable between 600 and 900 mm to suit varying equipment heights.
Each pack includes the component shelf (slotted), a telescopic slide with mounting kit, and necessary assembly parts. This enables straightforward, tool-free front installation and reliable alignment within the enclosure.
The data references ETIM 9 EC002620 and ECLASS 8.0 (27189261) classifications and notes a PCF category B sustainability rating. Traditional CE, IP, or SIL certifications are not listed in this data set; verify with supplier documentation for your compliance requirements.
The DK 5501.685 is designed to work with standard 19-inch mounting levels and frames and includes a telescopic slide with mounting kit. In most cases, you can reuse existing rails, but confirm compatibility with your enclosure model and rail type to ensure full fit and front-access operation.
