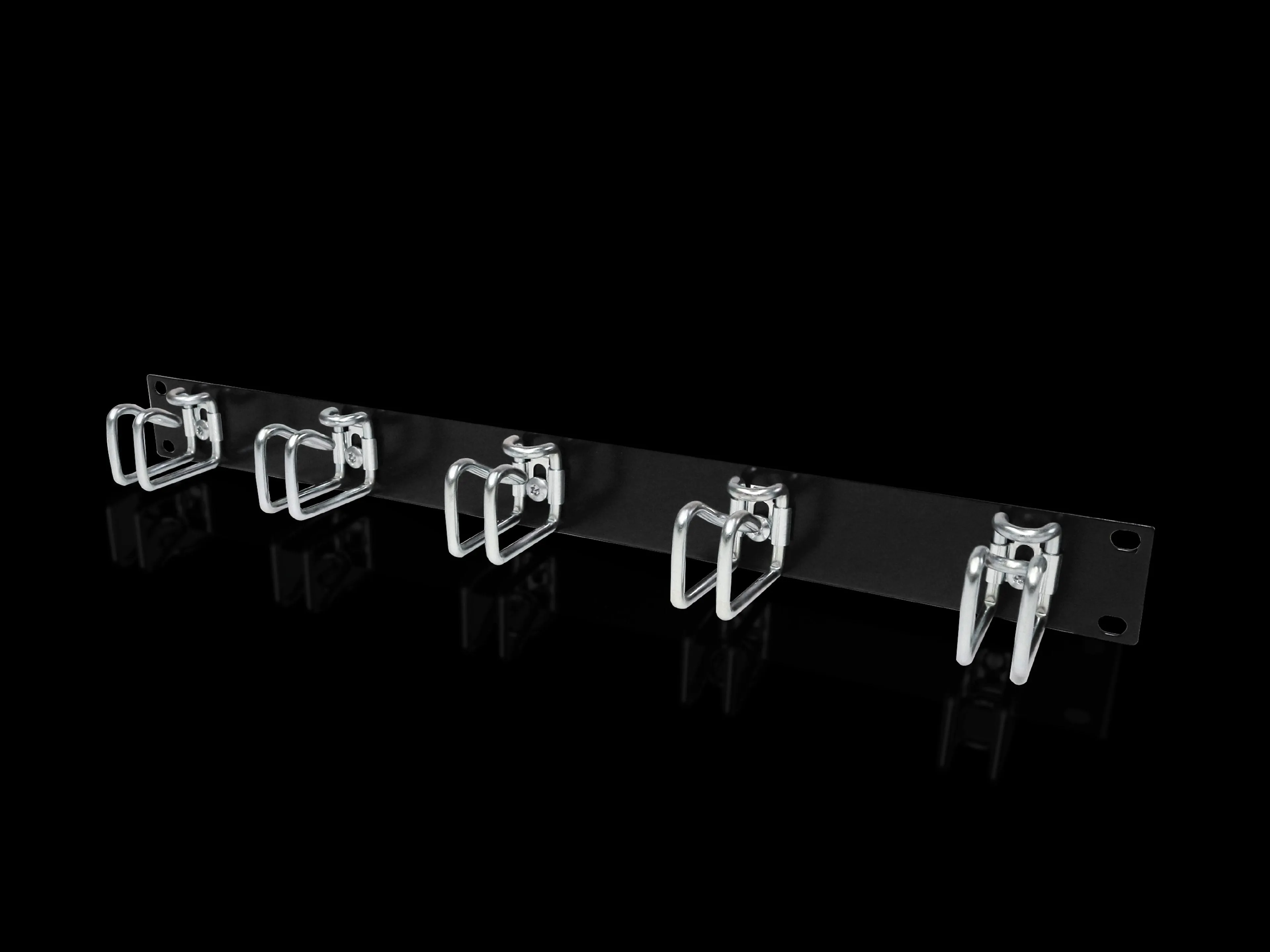

Rittal 5502.205 Cable management panel - 1U, 5 rings
Part Number: 5502205
Quick Summary
Cable management panel by Rittal organizes horizontal patch cables in 19-inch racks. The common pain is tangled cabling that slows maintenance and risks misrouting during upgrades. Key certifications in this class include CE marking for EU compliance, RoHS, and IP-rated protection for enclosures. For your project, a compact 1U solution with five cable rings reduces installation time and keeps cables accessible. The DK 5502.205 features sheet steel panel, steel rings, zinc-plated rings, sprayed panel finish, and a durable RAL 9005 color that fits industrial environments.
Product Information
Extended Description
5502205 Rittal: DK Cable management panel, 1 U, with steel rings
Article number
DK 5502.205
Product description
For horizontal management of the patch cables, with 5 cable shunting rings.
Material
Panel: Sheet steel | Ring: Steel
Surface finish
Panel: Spray-finished | Ring: Zinc-plated
Colour
RAL 9005
Note
The sizes given are external dimensions.
Dimensions
Width: 482.6 mm
Units
1 U
Ring dimensions
Ring depth: 55 mm | Ring height: 43 mm
Packs of
1 pc(s).
Weight/pack
0.763 kg
PCF per pack (cradle-to-gate)
2.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177679320
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable management panel, 1 U, with steel rings
Feature: 1 U panel height and 482.6 mm width fit standard 19-inch cabinets, enabling efficient space utilization. Business impact: maximized rack density and easier future expansion, reducing cabinet footprint and installation time. Application: data centers and industrial control rooms where tight cabling is a concern. Feature: five steel rings for cable organization and separation. Business impact: improved cable routing reduces bending stress and signal integrity issues, accelerating maintenance tasks. Application: patch cabling across server, network, and control cabinet patches. Feature: sprayed panel finish with zinc-plated rings and RAL 9005 coloring. Business impact: enhanced durability, corrosion resistance, and long-term reliability in harsh environments. Application: outdoor or dusty plant areas where enclosure aesthetics and protection matter. Feature: 1 U height with 55 mm ring depth and 43 mm ring height. Business impact: predictable cable fill and clear access for connectors, lowering risk during reconfigurations. Application: modular rack upgrades and scalable automation cabinets. Feature: PCF 2.9 kg CO2 eq (Cat B) indicates an environmentally conscious product footprint. Business impact: supports sustainability reporting and cost-conscious procurement decisions. Application: projects with cradle-to-gate environmental considerations.
Get a Quick Quote for a Rittal 5502205
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5502205?
Enquire Now
FAQs
To install, mount the 1U panel in the rack rail space, aligning with standard 19-inch mounting points. Use the panel’s 482.6 mm width to position it flush with adjacent equipment, then secure the unit and route patch cables through the five steel rings. Verify cable entry and exit clearances to maintain accessibility for maintenance and upgrades.
The panel uses sheet steel for the front with steel rings that are zinc-plated. The panel width is 482.6 mm, configured as 1U, with ring depth of 55 mm and ring height of 43 mm. It ships as 1 piece per pack and weighs 0.763 kg, making it a compact, robust addition to 19-inch cabinets.
Yes. The DK 5502.205 is explicitly designed for horizontal management of patch cables in 1U spaces and includes five rings to organize cables, improving access, reducing tangling, and facilitating future reconfigurations in control and automation cabinets.
Products in this category typically carry CE marking for EU compliance and RoHS conformity to restrict hazardous substances. While the data set provides EC and ECLASS references, verify with your procurement team or vendor for the exact certification scope on this particular unit and its applicability to your region.
Maintenance is typically minimal due to a steel construction with zinc-plated rings that resist corrosion, keeping cables orderly and reducing downtime during reconfigurations. ROI comes from faster cable rework, fewer misrouted connections, and improved cabinet airflow, contributing to longer component life and lower maintenance costs over time.
