Rittal 5502225 Cable Panel - 1U, 5 Bars
Part Number: 5502225
Quick Summary
Rittal 5502225 cable management panel enables horizontal patch cable routing in 1U enclosures. Without adaptable routing bars, modifying and expanding cabling can be time-consuming and error-prone. While the data does not specify CE, IP, or SIL markings, it aligns with ETIM EC002624 and ECLASS 27189265 classifications to support interoperability and procurement workflows. This combination helps reduce downtime while maintaining compliance in control cabinet installations. The 1U form factor and 482.6 mm width also support standard 19" rack installations, enabling scalable, modular configurations for growing automation needs.
Product Information
Extended Description

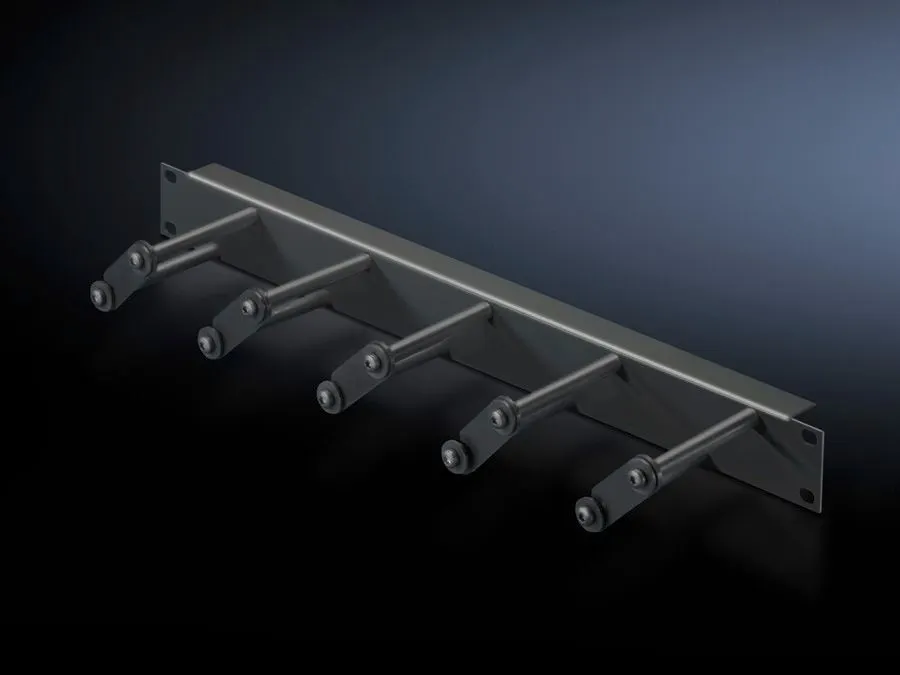

5502225 Rittal: DK Cable management panel, 1 U, with cable routing bars
Article number
DK 5502.225
Product description
For horizontal management of the patch cables with 5 cable routing bars. Opening the individual cable routing bars allows user-friendly modification and extension of the cabling.
Material
Panel: Sheet steel, spray finished | Cable routing bars: Plastic
Depth of bars
100 mm
Number bars per U
5
Dimensions
Width: 482.6 mm
Units
1 U
Packs of
1 pc(s).
Weight/pack
0.632 kg
PCF per pack (cradle-to-gate)
2.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177679337
ETIM 9
EC002624
ECLASS 8.0
27189265
Product description
DK Cable management panel, 1 U, with cable routing bars
Feature: 1 U height and 482.6 mm width enabling compact, standardized mounting in 19" racks. Benefit: Efficient use of cabinet space and straightforward integration with existing infrastructure. Application: Ideal for horizontal management of patch cables in control panels and automation cabinets. Feature: Five cable routing bars with 100 mm depth each. Benefit: Clear, organized pathways reduce misrouting and simplify future changes in high-density cable layouts. Application: Suitable for busy data/automation environments where frequent re-patching occurs. Feature: Bar openings allow selective modification of cabling by removing or opening individual bars. Benefit: Rapid reconfiguration with minimal disruption, cutting changeover times and maintenance windows. Application: Dynamic production lines and serviceable automation stations. Feature: Panel constructed from sheet steel with plastic routing bars. Benefit: Durable frame with lightweight, flexible routing components supports long service life and cost-effective replacements. Application: Harsh factory environments where robust construction is required. Feature: Weight per pack 0.632 kg and PCF 2.4 kg CO2 eq (Cat B). Benefit: Manageable shipping weight lowers logistics costs; environmental footprint is transparently recorded for sustainability reporting. Application: Green manufacturing programs and supplier compliance tracking.
Get a Quick Quote for a Rittal 5502225
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5502225?
Enquire Now
FAQs
The DK 5502.225 features a width of 482.6 mm (19 in), aligning with standard 19-inch rack dimensions. This enables straightforward mounting in common control cabinets and IT racks, supporting consistent enclosure alignment and easy retrofits in existing systems.
Key specs include a 1 U height, width of 482.6 mm, depth of cable routing bars at 100 mm, and five bars per U. The panel is made from sheet steel (frame) with plastic cable routing bars, weighing 0.632 kg per pack.
Yes. Its 1 U height and five 100 mm deep routing bars support organized horizontal management of patch cables, improving cable traceability, airflow, and maintenance access within automation cabinets and control panels.
The data lists ETIM 9 EC002624 and ECLASS 8.0 27189265 classifications for interoperability. CE, IP, or SIL markings are not specified in the provided data, so please verify in your procurement or with Rittal for any additional certifications required for your application.
With a lightweight 0.632 kg per pack and a cradle-to-gate PCF of 2.4 kg CO2 eq (Category B), the panel supports lower transport costs and clearer sustainability reporting. Its modular design also reduces downtime during cable reconfigurations, improving return on investment in dynamic automation environments.
