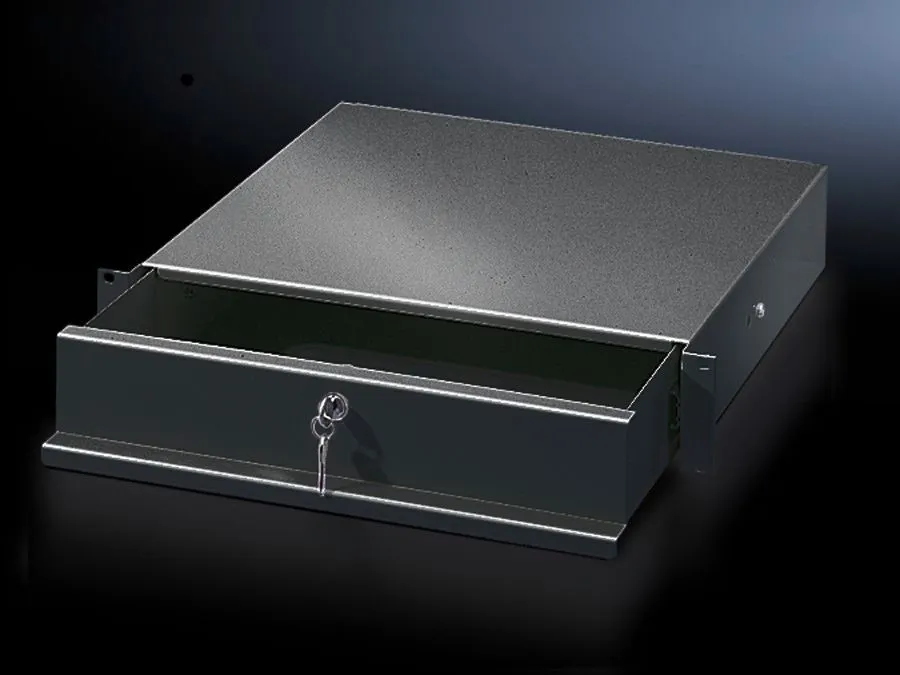

Rittal 5502325 DK Drawer - 3U, 482.6 mm, RAL 9005
Part Number: 5502325
Quick Summary
DK Drawer 5502325 from Rittal is a front-attachment drawer for 482.6 mm mounting levels in control cabinets. Engineers often struggle to keep manuals, assignment lists and small parts organized inside tight enclosures. Note: CE or IP certifications are not listed in the data; the product does comply with ETIM 7.0 EC002620 and ECLASS 8.0 27189261 classifications for cross-system compatibility. This solution supports faster setup, consistent documentation, and secure storage for small components, improving maintenance workflows. By consolidating manuals, lists and parts in a dedicated drawer, teams reduce search times during audits and routine servicing. The 482.6 mm attachment level aligns with standard rack widths, simplifying retrofit projects and spare part management.
Product Information
Extended Description
5502325 Rittal: DK Drawer, 3 U, For a 482.6 mm (19") attachment level, Installation depth: 427 mm, RAL 9005
Article number
DK 5502.325
Product description
For front attachment to mounting angles, 482.6 mm (19"). With cover and telescopic slides to accommodate assignment lists, operating manuals and small parts. The small version of the 2 U variant is also suitable for mounting inside a swing frame.
Material
Sheet steel
Colour
RALÂ 9005
Supply includes
Fully assembled | Security lock 12321
Clearance depth
419 mm
Clearance width
411 mm
Packs of
1 pc(s).
Weight/pack
8.19 kg
PCF per pack (cradle-to-gate)
31.2Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177679399
ETIM 7.0
EC002620
ECLASS 8.0
27189261
Product description
DK Drawer, 3 U, For a 482.6 mm (19") attachment level, Installation depth: 427 mm, RAL 9005
Feature → Business Impact → Application: Front attachment to mounting angles enables precise alignment at the 482.6 mm (19") attachment level, reducing misfit risks and simplifying integration in standard control cabinets; this translates to faster commissioning and fewer reworks in production lines. Feature → Business Impact → Application: The drawer includes a cover and telescopic slides to accommodate assignment lists, operating manuals and small parts, improving accessibility and reducing search time during maintenance or audits in busy facilities. Feature → Business Impact → Application: The 3 U height, installation depth of 427 mm, clearance depth of 419 mm and clearance width of 411 mm deliver a predictable footprint that fits neatly within existing 19" frames, enabling straightforward retrofits and consistent clearance. Feature → Business Impact → Application: Fully assembled with a security lock 12321 lowers installation time and enhances part protection, supporting compliance and reducing unauthorized access in sensitive environments. Feature → Business Impact → Application: With a weight of 8.19 kg per pack and PCF of 31.2 kg CO2 eq (Cat B), the solution supports efficient logistics and sustainability targets while keeping on-site handling manageable. Feature → Business Impact → Application: The small version of the 2U variant can be mounted inside a swing frame, offering flexibility for compact or evolving layouts and expanding installation options in modular factories.
Get a Quick Quote for a Rittal 5502325
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5502325?
Enquire Now
FAQs
The DK Drawer 5502325 is designed for a 482.6 mm (19") attachment level and 3U height, making it compatible with standard Rittal mounting frames and enclosure widths. It installs at a 427 mm installation depth and supports mounting on conventional angles. For swing-frame configurations, the small version of the 2U variant can be mounted inside a swing frame, enhancing flexibility.
Key dimensions include 3U height, 482.6 mm attachment width, installation depth 427 mm, clearance depth 419 mm, and clearance width 411 mm. The unit weighs 8.19 kg per pack, with a single pack per order. These measurements help calculate space, mounting clearances, and load distribution within standard Rittal enclosures. The PCF data also supports sustainability calculations for procurement.
This drawer is ideal for control cabinets, electrical panels and maintenance areas where assignment lists, manuals and small parts must be close at hand. The 482.6 mm attachment level and 19-inch compatibility enable easy integration with standard frames, while the included cover and telescopic slides keep items organized and protected during vibration or routine servicing.
Specific CE or IP certifications are not listed in the provided data for 5502325. The product uses ETIM 7.0 EC002620 and ECLASS 8.0 27189261 classifications, which support cross-system compatibility and standard product data. For regulatory compliance, verify local requirements and the enclosure's overall protection rating when integrating into your system.
Using the DK Drawer can reduce maintenance time by consolidating manuals, lists and small parts in one accessible location, speeding audits and repairs. The fully assembled design cuts on-site assembly time, while the security lock 12321 enhances part protection. Also, the 8.19 kg weight and 31.2 kg CO2 eq PCF per pack support efficient logistics and sustainability goals.
