Rittal 5502330 DK Gland Plate - ETIM EC002620
Part Number: 5502330
Quick Summary
Rittal 5502330 DK Gland Plate provides vented base coverage for TS IT and CableNet enclosures. It addresses common challenges with uncontrolled cold-air inflow and difficult below-base cable entry by offering a one-piece, rear-entry solution. The product aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications to streamline data management and procurement workflows. By concealing the base opening in one assembly, it supports reliable climate control while the rear brush strip simplifies cable management and future serviceability. Designed for 800x800 enclosures, it helps reduce energy use and maintenance costs across industrial installations, enabling tighter enclosure cooling and easier installation in tight spaces.
Product Information
Extended Description

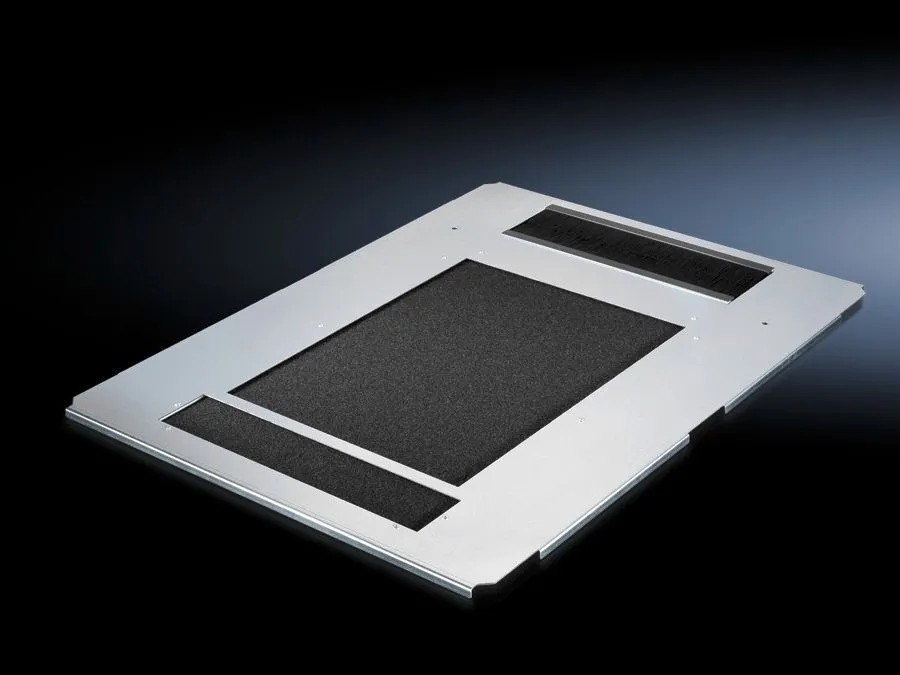

5502330 Rittal: DK Gland plate, one-piece, vented, with cable entry at the rear, incl. filter mat, for TS IT, CableNet, WxD: 800x800 mm
Article number
DK 5502.330
Product description
To completely cover the open base assembly in one piece. Perforated over the entire surface. This allows cold air to flow in from the base or base/plinth area. This ensures the inflow of cold air, particularly in enclosures with rack climate control. With a brush strip at the rear for user-friendly cable entry from below across the entire enclosure width. Integral guides permit simple accommodation of a filter mat, which is also readily replaced.
Material
Sheet steel | Brush strip: Plastic, UL 94-HB | Filter mat: Foamed plastic
Surface finish
Zinc-plated
Supply includes
Gland plate, one-piece, vented, with cable entry at the rear | Filter mat | Assembly parts
To fit
Enclosure type:Â TS IT | TX CableNet | Width:Â 800 mm | Depth:Â 800 mm
Packs of
1 pc(s).
Weight/pack
6.18 kg
Customs tariff number
73269098
EAN
4028177707818
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Gland plate, one-piece, vented, with cable entry at the rear, incl. filter mat, for TS IT, CableNet, WxD: 800x800 mm
Feature → Business Impact → Application: The gland plate is a one-piece, vented cover that conceals the base opening while allowing cold air to flow across the enclosure base. This reduces heat buildup in climate-controlled racks and lowers cooling fan load, improving energy efficiency in TS IT and CableNet systems. Application: ideal for 800x800 TS IT / CableNet enclosures where airflow is critical. Feature → Business Impact → Application: Material construction uses sheet steel with a zinc-plated finish and a rear brush strip to enable user-friendly cable entry from below across the full enclosure width. Impact: enhances durability in harsh industrial environments and protects against corrosion, supporting long service life and reduced replacement costs. Application: suitable for outdoor or dusty factory floors where enclosure integrity matters. Feature → Business Impact → Application: Perforated surface and included filter mat provide straightforward filtration and air distribution. Impact: maintains clean intake air, supports climate control, and simplifies maintenance by enabling easy filter mat replacement. Application: beneficial for rack climate control in TS IT and CableNet systems. Feature → Business Impact → Application: Filter mat and assembly parts are supplied, with weight per pack at 6.18 kg and a 1-piece pack. Impact: simplifies logistics and on-site handling, reducing assembly time and downtime during installation. Application: accelerates project timelines for modular enclosure builds. Feature → Business Impact → Application: To fit TS IT and TX CableNet systems with WxD 800x800, the gland plate ensures a precise, repeatable fit. Impact: minimizes customization needs, speeds up procurement, and supports standardized enclosure configurations. Application: common in industrial automation installations requiring consistent enclosure geometry.
Get a Quick Quote for a Rittal 5502330
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5502330?
Enquire Now
FAQs
The gland plate is designed to fit TS IT and TX CableNet enclosures with WxD dimensions of 800x800 mm. It installs as a single, vented cover at the base, featuring a rear cable entry and a rear brush strip for cable guidance. This alignment minimizes gaps and ensures consistent airflow across the enclosure width.
By providing a vented, one-piece base cover, it enables controlled cold-air inflow from the base area, improving airflow across the enclosure interior. The included filter mat helps maintain intake air quality, potentially reducing cooling load and fan energy, while the brush strip supports clean, efficient cable entry from below.
Yes. The package includes a filter mat and assembly parts, designed for straightforward replacement. Regularly inspecting the filter mat and brush strip helps maintain airflow performance and cable management. The zinc-plated steel surface also reduces corrosion risk in demanding environments, extending service life.
The product data references ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, supporting data standardization and procurement workflows. No explicit CE, SIL, or IP ratings are listed in the data provided; verify regional certification requirements per your project specifications and enclosure specifications.
The gland plate is supplied as a 1-piece pack with a weight of 6.18 kg. It fits 800x800 TS IT and CableNet enclosures and includes a gland plate, filter mat, and assembly parts. The product carries the EAN 4028177707818 and customs tariff number 73269098, aiding accurate import documentation.
