Rittal 5502350 Gland plate - vented with rear cable entry
Part Number: 5502350
Quick Summary
Rittal 5502350 gland plate provides a complete vented cover for open base assemblies in TS IT and CableNet enclosures. It addresses the common challenge of managing cold air flow and cable entry from below without compromising enclosure integrity. Certification notes: The data does not explicitly list CE, SIL or IP ratings for this gland plate; please confirm with your supplier for regulatory compliance. The design includes a rear cable entry, perforated surface for airflow, and a replaceable filter mat, delivering straightforward maintenance and reduced servicing downtime. In practical terms, this accessory supports efficient rack climate control, simplifies installation, and aligns with ETIM/ECLASS classifications to streamline procurement across industrial projects.
Product Information
Extended Description

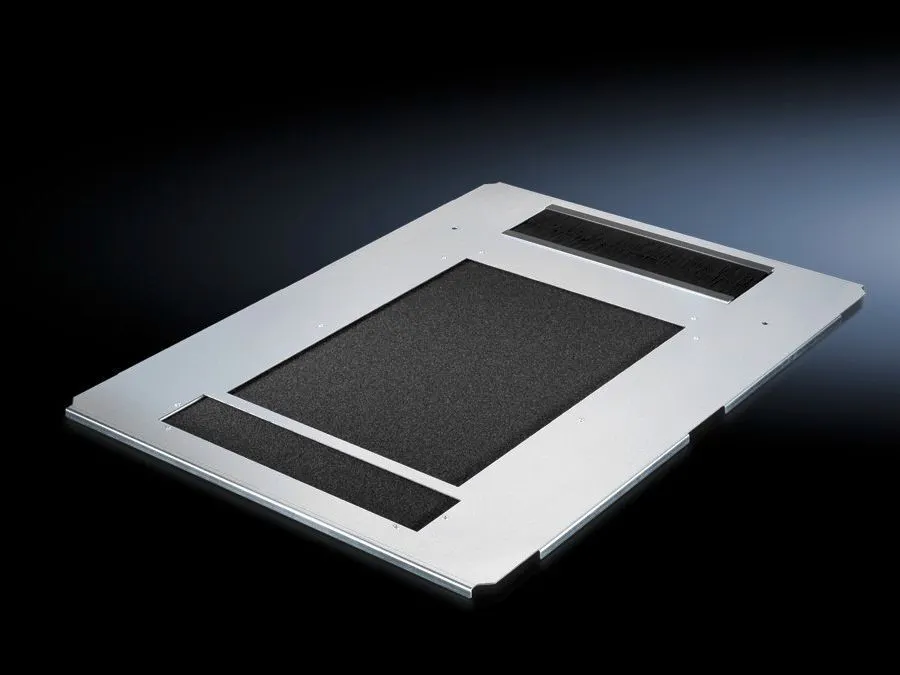

5502350 Rittal: DK Gland plate, one-piece, vented, with cable entry at the rear, incl. filter mat, for TS IT, CableNet, WxD: 800x1000 mm
Article number
DK 5502.350
Product description
To completely cover the open base assembly in one piece. Perforated over the entire surface. This allows cold air to flow in from the base or base/plinth area. This ensures the inflow of cold air, particularly in enclosures with rack climate control. With a brush strip at the rear for user-friendly cable entry from below across the entire enclosure width. Integral guides permit simple accommodation of a filter mat, which is also readily replaced.
Material
Sheet steel | Brush strip: Plastic, UL 94-HB | Filter mat: Foamed plastic
Surface finish
Zinc-plated
Supply includes
Gland plate, one-piece, vented, with cable entry at the rear | Filter mat | Assembly parts
To fit
Enclosure type: TS IT | TX CableNet | Width: 800 mm | Depth: 1,000 mm
Packs of
1 pc(s).
Weight/pack
7.46 kg
Customs tariff number
73269098
EAN
4028177707832
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Gland plate, one-piece, vented, with cable entry at the rear, incl. filter mat, for TS IT, CableNet, WxD: 800x1000 mm
Feature: The gland plate is vented across its entire surface, enabling unobstructed airflow into the base area. Business Impact: This helps maintain uniform enclosure temperatures, reduces thermal stress on components, and supports rack climate control strategies in IT-ready industrial spaces. Application: Ideal for TS IT and CableNet enclosures where open-base configurations require controlled cooling and minimal obstruction to intake air. Feature: Rear cable entry with a rear brush strip. Business Impact: Facilitates clean, below-the-base cable routing and reduces required bending radii, lowering installation time and risk of damage. Application: Particularly beneficial when cables must enter from below without compromising a neat, accessible base area. Feature: Perforated surface with integral filter mat guides. Business Impact: Allows simple placement and replacement of a filter mat, extending enclosure life and maintaining airflow performance. Application: Ensures easy maintenance in cleanroom-adjacent or dust-prone environments. Feature: Durable material and finish. Business Impact: Sheet steel construction with zinc-plated finish provides corrosion resistance and long service life in harsh environments. Application: Suitable for industrial plants, manufacturing lines, and outdoor or damp locations when paired with appropriate enclosure hardware. Feature: Comprehensive supply and fitment specs. Business Impact: With a single-pack solution (1 pc), weight 7.46 kg, and compatibility with 800 mm width and 1,000 mm depth enclosures, installation is simplified and logistics are improved. Application: Streamlines procurement for TS IT and CableNet projects. Additional note: Although formal CE/SIL/IP certifications are not listed in the data, this gland plate integrates with standard enclosure ecosystems and ETIM/ECLASS classifications to minimize integration risk when sourced from a single supplier.
Get a Quick Quote for a Rittal 5502350
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5502350?
Enquire Now
FAQs
The gland plate is designed to fit TS IT and CableNet enclosures with an 800 mm width and 1,000 mm depth. It installs as a single-piece, vented cover that completely seals the base opening, while providing rear cable entry and a replaceable filter mat to maintain airflow and cable organization from below.
Verify WxD compatibility (800 x 1000 mm), weight per pack (7.46 kg), material (sheet steel; brush strip plastic; filter mat foamed plastic), and that the enclosure type matches TS IT or CableNet. Also confirm the exact article/part number DK 5502.350 and EAN 4028177707832 for procurement accuracy.
Yes. The vented, one-piece design supports airflow into the base area, aiding rack climate control essential for CableNet configurations. The rear-entry cable path and filter mat compatibility help maintain consistent temperatures and airflow in installations requiring below-base cable routing.
The provided data lists ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, but does not explicitly state CE, SIL or IP ratings. For strict regulatory compliance, verify CE/SIL/IP certifications with the supplier or through your internal compliance team before deployment in regulated environments.
The included filter mat is replaceable, simplifying routine maintenance and sustaining airflow performance. The single-piece, vented design reduces potential base gaps and installation complexity, leading to lower downtime, easier serviceability, and a clearer path to consistent enclosure performance in daily operations.
