Rittal VX 5502.503 Base Mount - Depth 1200 mm
Part Number: 5502503
Quick Summary
Rittal VX 5502.503 Base Mount provides a robust base for gland plate modules inside TS and TX frames. Engineers often struggle with misalignment and retrofit challenges when expanding enclosure interiors. While explicit CE or IP certifications are not listed in the data, verify conformity with your regional standards before deployment to ensure compliant installations. The VX 5502.503 is designed for compatibility with the TS 8, TS IT, and TX CableNet frames, enabling predictable alignment and straightforward installation. This base mount adds value by enabling quick VX and VX IT integration within existing frames and by delivering reliable gland plate support, reducing retrofit risk and supporting lower lifecycle costs.
Product Information
Extended Description
5502503 Rittal: Base mount for TS/TX, depth 1200 mm, for gland plate module VX
Article number
VX 5502.503
Benefits
The installation rail allows simple integration of the base modules VX/VX IT within the frame of the TS8, TS IT and TX series, as an alternative to the previous TS base modules
Material
Sheet steel
Surface finish
Spray-finished
General colour
RAL 7035
Colour
RAL 7035
Supply includes

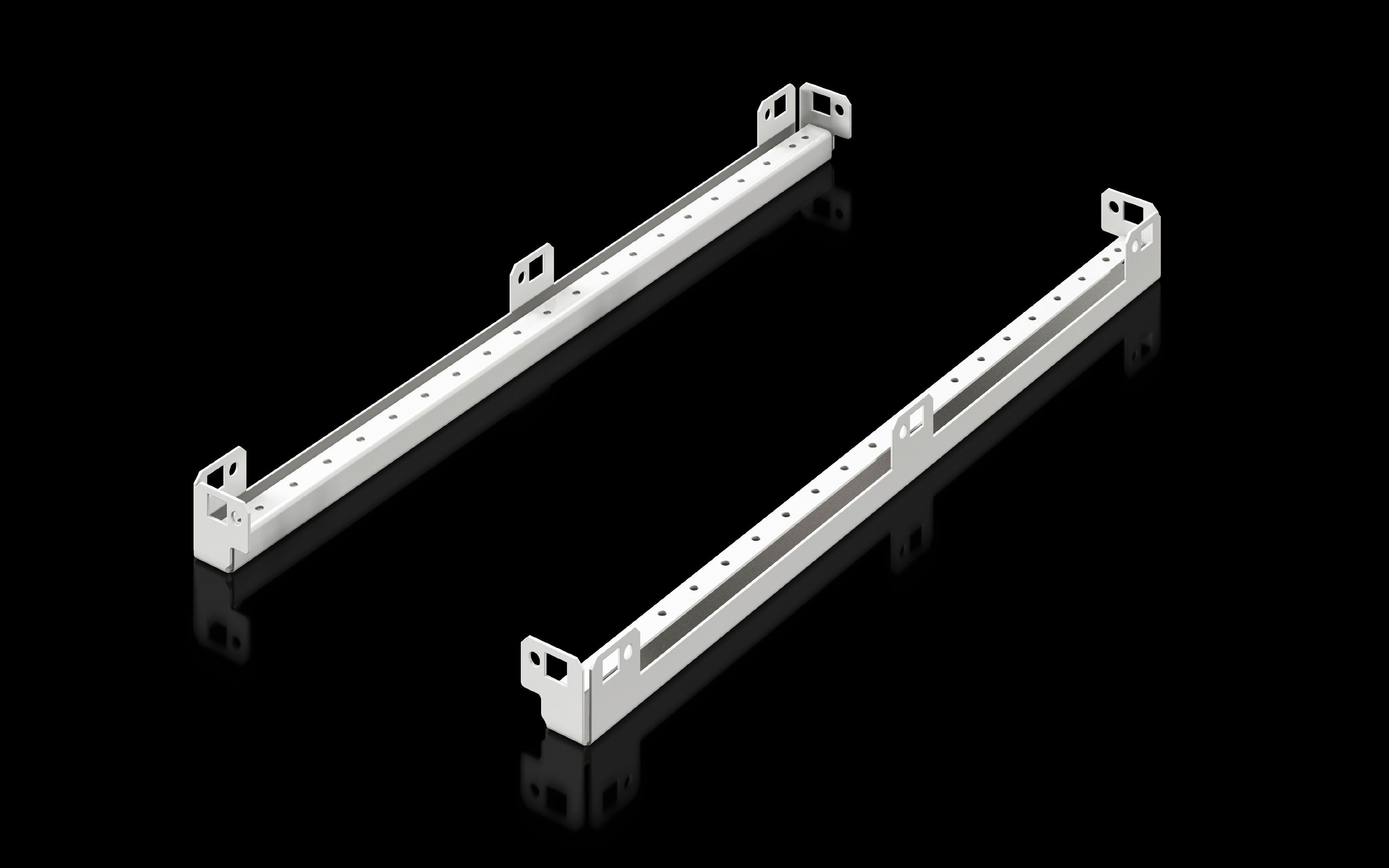

2 mounting rails including assembly parts.
To fit
Enclosure type:Â TS 8 | TS IT | TX CableNet | TX Colocation Rack | Depth:Â = 1,200 mm
Packs of
2 pc(s).
Customs tariff number
73269098
Product description
Base mount for TS/TX, depth 1200 mm, for gland plate module VX
Installation rails enable simple integration of VX and VX IT base modules within TS 8, TS IT, and TX frames, delivering faster assembly and consistent gland plate alignment in demanding environments. This translates to reduced on-site labor time, fewer reworks, and improved project predictability for data centers and industrial rooms. The depth of 1200 mm accommodates standard enclosure interiors, supporting VX gland plate configurations without compromising accessibility or cable routing. Sheet steel construction with a spray-finished surface provides durable wear resistance in active enclosures, while the RAL 7035 color ensures consistent appearance and easy identification during maintenance. Supplying two mounting rails with assembly parts reduces procurement steps and accelerates installation, preserving schedule integrity. Compatibility covers TS 8, TS IT, TX CableNet, and TX Colocation Rack families, offering flexible deployment across multiple enclosure families without custom fabrication. Pack quantity of two ensures ready availability for retrofit or new builds, minimizing downtime and inventory complexity.
Get a Quick Quote for a Rittal 5502503
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5502503?
Enquire Now
FAQs
To install the VX 5502.503, align the two mounting rails with the enclosure frame, secure them using the provided assembly parts, and attach the gland plate VX module to the rails. Ensure the frame is level and the depth specification matches your enclosure interior. This process minimizes misalignment and shortens commissioning time in data centers and industrial environments.
This base mount is designed to fit TS 8, TS IT, TX CableNet, and TX Colocation Rack enclosure families. The 1200 mm depth supports VX gland plate modules in standard TS and TX configurations, allowing consistent installation across multiple enclosure platforms without custom fabrication.
The provided datasheet excerpt does not specify CE, SIL, or IP ratings for this base mount. For regulatory compliance, verify CE conformity and any applicable IP or SIL requirements with your supplier or procurement team before deployment, especially in restricted or hazardous environments.
The supply includes two mounting rails plus assembly parts needed for installation. This packaging reduces extra ordering steps and ensures you have the essential hardware on hand for immediate mounting within TS 8, TS IT, or TX enclosure frames.
Using the VX 5502.503 base mount provides faster, repeatable gland plate installation, improved alignment, and easier VX/VX IT integration within existing frames. This leads to shorter project lead times, reduced field labor, and lower lifecycle costs due to streamlined maintenance and easier future reconfigurations.
