Rittal 5502540 Gland Plate Set - TS IT, 600x1000 mm
Part Number: 5502540
Quick Summary
Rittal gland plate set DK 5502.540 provides concealed base openings for TS IT enclosures. This solution streamlines cable management and helps tailor gland modules to varying workloads without deskilling your installation team. Although explicit CE or IP ratings aren't listed in the data, the product aligns with ETIM EC002620 and ECLASS 27189261 for interoperability. This gland plate set is designed to fit TS IT enclosures with 600 mm width and 1000 mm depth, delivering reliable grounding and concealment. In practice, installers benefit from included assembly parts and the potential equalisation features that simplify commissioning and ongoing maintenance. The compact 5.936 kg weight per pack and modular design also ease logistics on site.
Product Information
Extended Description

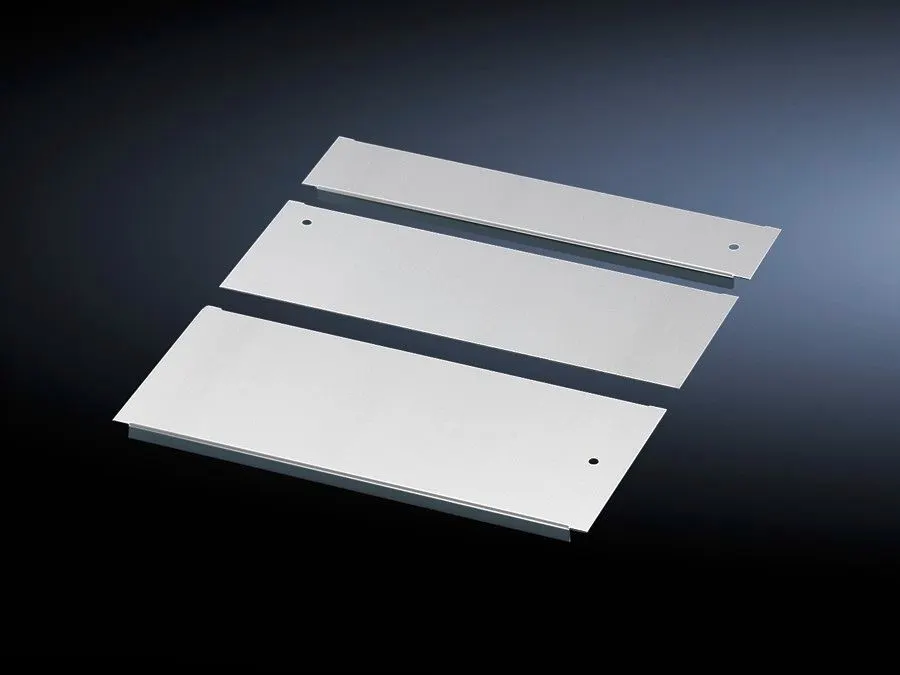

5502540 Rittal: DK Gland plate Set, WxD: 600x1000 mm, For TS IT, solid, multi-piece
Article number
DK 5502.540
Design
Gland plate, solid, with sliding panel, multi-piece
Product description
Potential equalisation is provided via assembly components and earthing points. Gland plate set: To conceal the entire base opening. Gland plate modules: Select suitable modules depending on the application.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type: TS IT | Width: 600 mm | Depth: 1,000 mm
Packs of
1 pc(s).
Weight/pack
5.936 kg
Customs tariff number
73269098
EAN
4028177682481
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Gland plate Set, WxD: 600x1000 mm, For TS IT, solid, multi-piece
Feature: Potential equalisation is provided via assembly components and earthing points. Business Impact: Ensures reliable grounding across cabinet interfaces, reducing risk of transient voltages and improving overall safety in control systems. Application: TS IT enclosures with multiple gland entries. Feature: Gland plate set conceals the entire base opening. Business Impact: Improves enclosure aesthetics and protects internal components from dust and moisture. Application: Industrial environments with dusty or harsh conditions. Feature: Gland plate modules are solid, multi-piece with sliding panel. Business Impact: Allows rapid reconfiguration of gland positions without replacing the plate, saving installation time and reducing costs. Application: Projects with evolving cable management needs. Feature: Material is sheet steel with a zinc-plated surface. Business Impact: Delivers durable, corrosion-resistant protection suitable for demanding environments. Application: Electrical cabinets in manufacturing or process environments. Feature: Supply includes assembly parts. Business Impact: Simplifies procurement and on-site installation, reducing vendor coordination. Application: New installations or upgrades needing quick readiness. Feature: Dimensions WxD 600x1000 mm; weight per pack 5.936 kg; packs of 1. Business Impact: Clear fit guidance and predictable logistics support, minimizing site planning issues. Application: TS IT enclosure fits and project scoping.
Get a Quick Quote for a Rittal 5502540
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5502540?
Enquire Now
FAQs
The DK 5502.540 is designed for Rittal TS IT enclosures with a width of 600 mm and a depth of 1,000 mm. It is a solid, multi-piece gland plate featuring a sliding panel and includes assembly parts. Each pack contains one gland plate set, weighing approximately 5.936 kg, enabling straightforward on-site installation and predictable logistics.
The set provides potential equalisation through built-in earthing points and assembly components, which enhances grounding reliability. It conceals the base opening to improve dust control and placement of glands, while the sliding panel allows quick reconfiguration of gland positions. This supports cleaner cabling routes and safer electrical cabinets in industrial environments.
Ideal for industrial automation cabinets, manufacturing lines, and process control installations using TS IT enclosures. The 600x1000 mm footprint suits medium-to-large enclosures, and the modular, multi-piece design accommodates evolving gland needs, enabling efficient cabinet upgrades without full plate replacement, reducing downtime and upgrade costs.
The provided data lists ETIM 9 EC002620 and ECLASS 8.0 27189261, with the EAN 4028177682481. Explicit CE or IP ratings are not stated here, so confirm regulatory compliance with your procurement team and local standards. The zinc-plated sheet steel construction supports standard industrial safety and grounding practices.
Modular gland modules enable swapping glands without replacing the entire base plate, reducing maintenance time. Assembly parts are included to streamline procurement, and the 1-piece-per-pack packaging simplifies service logistics. Overall, faster commissioning, fewer rework steps, and reduced downtime contribute to tangible ROI over the cabinet lifecycle.
