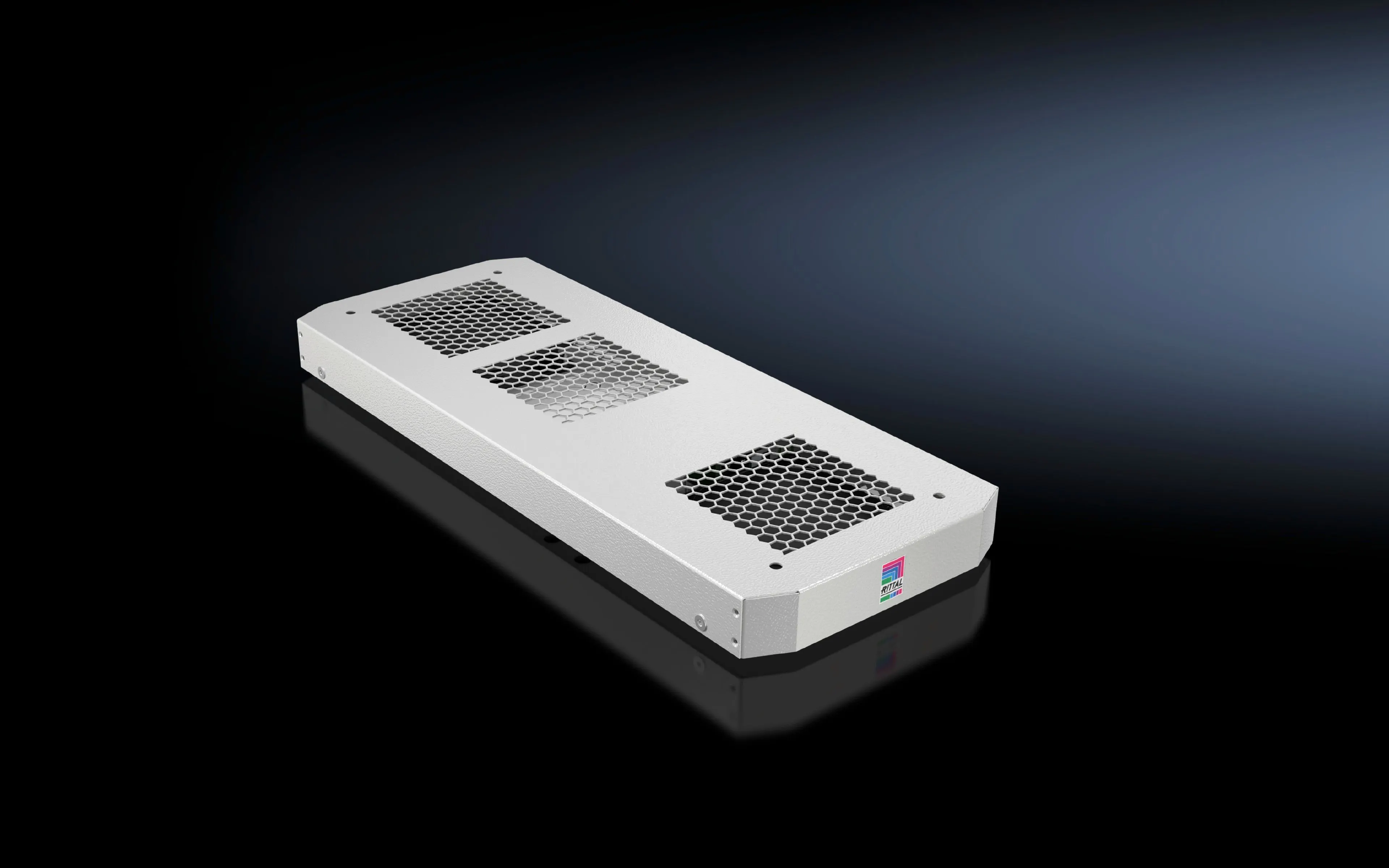

Rittal 5503010 Fan Module - 280 m³/h for VX IT IP20
Part Number: 5503010
Quick Summary
Rittal 5503010 Fan Module is a speed-controlled ventilation unit designed for active cooling inside VX IT enclosure systems. In IT cabinets, engineers often struggle to balance cooling performance with energy use and space constraints. Its IP20 protection rating and a universal 100–240 V supply help ensure reliable, worldwide installations, while operating temperatures from 5 °C to 55 °C broaden application scope. The module ships fully wired for connection and includes easy-to-install accessories, reducing commissioning time. By delivering precise airflow (280 m³/h) and low power draw (about 21.5 W), it lowers total cost of ownership and supports scalable cooling in compact industrial environments.
Product Information
Extended Description
5503010 Rittal: SK Fan module 100-240 V, 50-60 Hz, speed-controlled, (2 fans, max. 3 fans) 280 m³/h, for VX IT, WxHxD: 550x42x220 mm, RAL 7035
Article number
SK 5503.010
Design
Without roof plate
Product description
For active ventilation. The unit may optionally be extended with additional fans.
Benefits
Simple connection system with C13 IEC 320 socket
Material
Sheet steel, spray-finished
Colour
RAL 7035
Supply includes
1 fan unit | 2 fans | Fully wired ready for connection | Assembly parts | Installation and Short User's Guide
Air throughput (at operating point)
280 m³/h
Rated operating voltage
100 V - 240 V, 1~, 50 Hz/60 Hz
Rated current max.
At 50 Hz: 0.39 A | At 60 Hz: 0.36 A
Dimensions
Width: 550 mm | Height: 42 mm | Depth: 220 mm
IP protection category to IEC 60 529
IP 20
Speed
100 %
Pre-fuse
Miniature circuit-breaker/fuse: 10 A
Installation options
In VX IT with W x D (mm): 600 x 600 / 600 x 800 / 600 x 1000 / 600 x 1200 / 800 x 600
Note
Reduction in the specified air throughput to 280 m³/h at 25 Pa counterpressure
Noise level (at operating point)
46 dB(A)
To fit
Enclosure type: VX IT | TS IT | TX CableNet
Operating temperature range
5 °C...55 °C
Power consumption
21.5 W
Weight/pack
2.8 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177966253
ETIM 7.0
EC000320
ECLASS 8.0
27180716
Product description
SK Fan module 100-240 V, 50-60 Hz, speed-controlled, (2 fans, max. 3 fans) 280 m³/h, for VX IT, WxHxD: 550x42x220 mm, RAL 7035
Feature: Speed-controlled active ventilation. Benefit: Precisely modulated airflow reduces energy consumption while maintaining optimal IT equipment temperatures. Application: VX IT enclosures in data centers or industrial control rooms where cooling demand fluctuates. Feature: Simple C13 connection and fully wired installation. Benefit: Shorter commissioning times and fewer wiring errors, enabling faster deployment across multiple racks. Application: Quick upgrades or retrofits in existing VX IT systems. Feature: 280 m³/h air throughput with 46 dB(A) sound level. Benefit: Effective cooling with minimal acoustic impact, preserving operator comfort and equipment reliability. Application: Dense IT cabinets and equipment racks where noise is a concern. Feature: Low power consumption (21.5 W) and pre-fuse protection (10 A). Benefit: Lower operating costs and safer startup, supporting reliable 24/7 operation. Application: Continuous cooling in industrial environments with stringent energy targets. Feature: Compact dimensions (550 x 42 x 220 mm), IP20 protection, and 2–3 fan configurations. Benefit: Flexible installation inside VX IT enclosures of varying sizes with robust enclosure protection. Application: Space-constrained installations requiring scalable airflow. Feature: Broad compatibility (100–240 V, 50/60 Hz) and installation options for VX IT sizes. Benefit: Global applicability and straightforward integration into existing IT infrastructure. Application: Worldwide deployments across diverse control panels and enclosures.
Get a Quick Quote for a Rittal 5503010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5503010?
Enquire Now
FAQs
Yes, the SK 5503.010 is designed for VX IT enclosures and supports installation across multiple VX IT sizes. It measures 550 mm in width, 42 mm in height, and 220 mm in depth, matching standard VX IT mounting footprints. Install options include configurations for 600 x 600 mm to 800 x 600 mm enclosures, allowing flexible integration within compact cabinet layouts.
The fan module delivers 280 m³/h of air throughput at the operating point and maintains a sound level of 46 dB(A). These specifications enable effective cooling for IT equipment while minimizing acoustic impact in office-adjacent or noise-sensitive environments. The unit operates at 100–240 V, 50/60 Hz, with speed control to match cooling demand.
The SK 5503.010 is rated for 2 fans, with the option to extend to 3 fans for higher airflow. This scalability supports varying IT heat loads across VX IT enclosures, enabling targeted cooling for dense equipment configurations. The increased fan count raises airflow capacity while maintaining manageable power consumption and noise levels for balanced performance.
The SK 5503.010 carries an IP20 protection rating, offering protection against solid intrusion while immersed in normal indoor environments. This rating is suitable for typical IT cabinet environments and helps ensure reliable operation in controlled industrial settings. The unit is designed for 100–240 V operation and complies with the enclosure and electrical standards commonly used in VX IT installations.
Installation is streamlined by a simple connection system and fully wired configuration, reducing commissioning time and wiring errors. With a modest power draw of 21.5 W and a fixed pre-fuse of 10 A, running costs are predictable. The combination of scalable airflow, IP20 protection, and compatibility with VX IT enclosures supports a favorable return on investment in cooling efficiency and TCO reduction.
