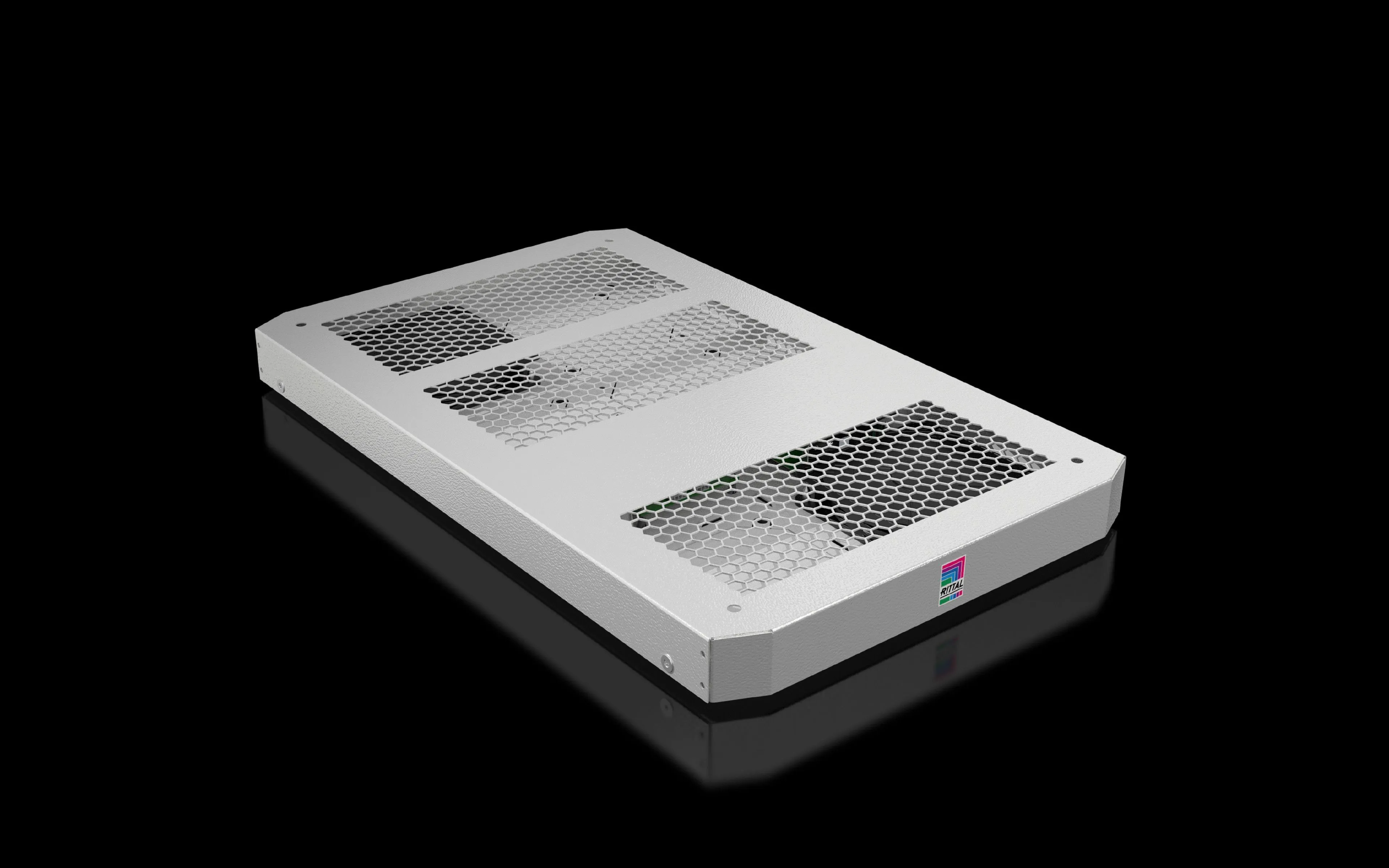

Rittal 5503020 SK Fan module - IP20, 280 m³/h
Part Number: 5503020
Quick Summary
Rittal SK Fan module 5503020 provides active ventilation for VX IT enclosures in industrial cabinets. This solution helps prevent heat buildup that can compromise electronics and shorten component life, especially in dense IT and automation environments. The design features CE-compliant electrical safety and IP 20 protection, delivering reliable operation across European facilities. With 100-240 V input and speed-controlled operation, it reduces energy usage while maintaining consistent cooling, supporting longer equipment life and higher uptime for automation systems. For integrators and maintenance teams, this unit offers straightforward installation, proven reliability, and scalable cooling for growing cabinet heat loads.
Product Information
Extended Description
5503020 Rittal: SK Fan module 100-240 V, 50-60 Hz, speed-controlled, (2 fans, max. 6 fans) 280 m³/h, for VX IT, WxHxD: 550x42x340 mm, RAL 7035
Article number
SK 5503.020
Design
Without roof plate
Product description
For active ventilation. The unit may optionally be extended with additional fans.
Benefits
Simple connection system with C13 IEC 320 socket
Material
Sheet steel, spray-finished
Colour
RAL 7035
Supply includes
1 fan unit | 2 fans | Fully wired ready for connection | Assembly parts | Installation and Short User's Guide
Air throughput (at operating point)
280 m³/h
Rated operating voltage
100 V - 240 V, 1~, 50 Hz/60 Hz
Rated current max.
At 50 Hz: 0.7 A | At 60 Hz: 0.69 A
Dimensions
Width: 550 mm | Height: 42 mm | Depth: 340 mm
IP protection category to IEC 60 529
IP 20
Speed
100 %
Pre-fuse
Miniature circuit-breaker/fuse: 10 A
Installation options
In VX IT with W x D (mm): 800 x 800 / 800 x 1000 / 800 x 1200
Note
Reduction in the specified air throughput to 280 m³/h at 25 Pa counterpressure
Noise level (at operating point)
46 dB(A)
To fit
Enclosure type: VX IT | TS IT
Operating temperature range
5 °C...55 °C
Power consumption
42.5 W
Weight/pack
3.8 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177966246
ETIM 9
EC000320
ECLASS 8.0
27180716
Product description
SK Fan module 100-240 V, 50-60 Hz, speed-controlled, (2 fans, max. 6 fans) 280 m³/h, for VX IT, WxHxD: 550x42x340 mm, RAL 7035
The SK Fan module delivers active ventilation with speed control, enabling energy-efficient cooling that adapts to changing thermal conditions in VX IT enclosures. This directly translates to improved reliability of sensitive electronics and longer service intervals in industrial automation. Its simple C13 IEC 320 connection minimizes commissioning time and reduces wiring errors during installation, which lowers total cost of ownership. The design supports expansion from two to up to six fans, providing scalable airflow of 280 m³/h at the operating point, with a documented performance at 25 Pa that helps engineers predict real-world cooling in demanding cabinets. Dimensions of 550 x 42 x 340 mm and IP 20 protection ensure rugged compatibility with VX IT and TS IT enclosures, while a 10 A pre-fuse protects downstream components, aligning with standard plant electrical practices. The unit operates from 5 °C to 55 °C and consumes 42.5 W, balancing thermal effectiveness with energy efficiency. Weighting at 3.8 kg and a complete package including mounting parts and installation guide support quick deployment in existing systems. Overall, the SK Fan module harmonizes with Rittal enclosure ecosystems, offering reliable, compliant, and cost-conscious cooling for industrial cabinets and data center cabinets alike.
Get a Quick Quote for a Rittal 5503020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5503020?
Enquire Now
FAQs
Yes. The SK 5503.020 is designed for VX IT enclosures and supports installation within the VX IT footprint options (800 x 800, 800 x 1000, 800 x 1200). It ships as a ready-to-wire solution with mounting and assembly parts included, and uses a C13 IEC 320 socket for simple, reliable connections.
The unit provides 280 m³/h of air throughput at the operating point, with a note that throughput reduces under 25 Pa counterpressure. The noise level is specified at 46 dB(A), enabling predictable acoustic performance in cabinet environments and plant rooms.
The SK Fan module operates from 100–240 V, 50/60 Hz, with a maximum current of 0.7 A at 50 Hz (0.69 A at 60 Hz) and a power draw of 42.5 W. It comes fully wired for quick connection and includes a 10 A pre-fuse for protection in standard electrical installations.
Yes. The design supports configurations from two up to six fans, allowing scalable airflow to meet higher thermal loads in VX IT enclosures. This makes it suitable for growing IT/cabinet cooling needs without replacing the entire module.
The SK Fan module is compatible with VX IT and TS IT enclosure families, offering 550 x 42 x 340 mm dimensions, IP 20 protection, and a plug-and-play connection system. It ships with installation parts and a short user guide, enabling faster deployment and easier maintenance in industrial automation settings.
