Rittal TX 5541.245 Colocation Server Rack - 52U
Part Number: 5541245
Quick Summary
Rittal TX 5541.245 Colocation server rack delivers scalable IT enclosure for large data centers and colocated deployments. Engineers often face deployment delays, cable chaos, and cooling challenges when repurposing legacy cabinets. While this TX Colocation rack uses vented sheet steel doors front and rear and a 800x2450x1200 mm footprint to support 52U of equipment, it helps streamline installation and airflow management. In typical data-center projects, CE compliance and IP-rated protection are standard expectations for safety and reliability, and standard enclosure norms guide these requirements in practice. By combining a robust enclosure frame with built‑in cable entry across the full depth and a rear 150 mm cable tray, operators gain faster racking, easier serviceability, and reduced downtime.
Product Information
Extended Description
5541245 Rittal: TX Colocation server rack, WxHxD: 800x2450x1200 mm, 52 U, vented sheet steel door at the front, vented sheet steel door at the rear, vertically divided, 130° hinges front and rear
Article number
TX 5541.245
Design
Standard
Material
Sheet steel
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Doors and roof: Dipcoat-primed, powder-coated | Perforated Door, Sheet Steel
General colour
RAL 7035
Colour
Enclosure frame and roof: RAL 7035 | Door: RAL 7035 | Handle and hinges: RAL 9005
Supply includes
Enclosure frame with doors and roof plate | Sheet steel front door, vented, 130° hinges | Rear door made of sheet steel, divided, vented, 130° hinges | Lock, front and rear: Comfort handle VX with numerical code | Roof plate with cable entry across the full enclosure depth, left and right | Divider panel, fitted to the left-hand side of the enclosure | 150 mm cable tray, fitted to the rear, right-hand side of the enclosure | 10 x captive nuts with screws (enclosed) | Grounding accessories (supplied loose) | Mounting angles, 482.6 mm (19") | Air baffle plate | Baying kit (supplied loose)
Dimensions
Width: 800 mm | Height: 2,450 mm | Depth: 1,200 mm
Units
52 U
Distance between levels as delivered
745 mm
Distance between mounting levels min
115 mm
Distance between mounting levels max
341 mm
482.6 mm (19") attachment
800 mm-wide enclosure mounted on cross-members
Design
Standard
Roof design

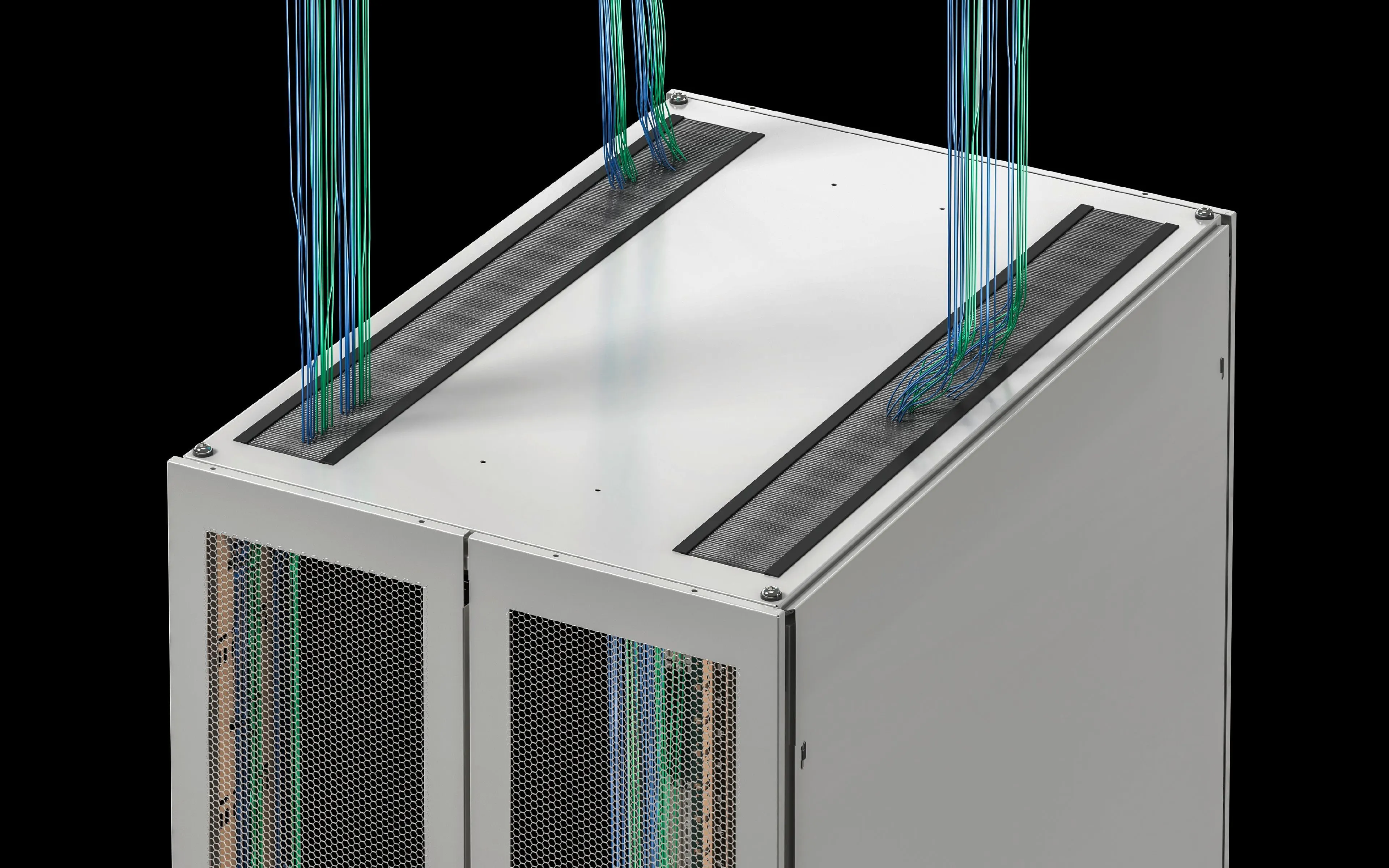

Roof plate with cable entry across the full enclosure depth, left and right
Design doors
Vented doors
Rear door design
Sheet steel door, vented
Front door design
Sheet steel door, vented
Base design
Open
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Packs of
1 pc(s).
Customs tariff number
94032080
EAN
4028177971622
ETIM 9
EC002499
Product description
TX Colocation server rack, WxHxD: 800x2450x1200 mm, 52 U, vented sheet steel door at the front, vented sheet steel door at the rear, vertically divided, 130° hinges front and rear
The TX 5541.245 offers a comprehensive feature set that translates into tangible business benefits. 52U capacity along with 482.6 mm (19 inch) mounting rails front and rear enables high‑density installations, supporting a wide range of servers, storage, and networking gear with predictable rack spacing and simplified expansion. The roof plate includes full-depth cable entry on both sides, while a 150 mm rear cable tray and a divider panel streamline cabling and airflow, reducing installation time and post‑deployment maintenance. Sheet steel construction with a dipcoat-primed exterior and powder-coated doors ensures durable, long‑lasting performance in data centers and edge facilities, while the vented front and rear doors improve cooling efficiency and EMI management. A robust load rating of 15,000 N underlines suitability for heavy equipment and bayed configurations, and grounding accessories plus a baying kit support scalable deployments across multi‑rack estates. Together these elements reduce risk during commissioning, enable faster fault isolation, and deliver a lower total cost of ownership for IT infrastructure projects.
Get a Quick Quote for a Rittal 5541245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5541245?
Enquire Now
FAQs
Yes. The TX 5541.245 uses standard 19-inch mounting rails with a 482.6 mm (19") attachment, designed to accommodate typical network, storage, and server equipment. The enclosure supports 52 U of equipment and provides consistent rail spacing to simplify installation and future upgrades. When planning, verify the rail type and mounting depth of each device to ensure clearance with the door swing and roof cable entry.
Key mounting specifications include a 52 U footprint within an 800 mm wide by 2,450 mm high by 1,200 mm deep enclosure. Distance between mounting levels delivered is 745 mm, with a minimum mounting level spacing of 115 mm and a maximum of 341 mm. These dimensions enable flexible rack layouts for multiple blade servers, switches, and storage enclosures while preserving airflow paths and service access.
Ideal for large data centers and colocation facilities, the TX 5541.245 supports dense IT deployments requiring reliable airflow and accessible cabling. It is well-suited for network racks, blade/server installations, telecom equipment, and edge computing boxes operating in moderated industrial environments. Its 52U capacity, vented doors, and roof cable entry simplify multi‑rack configurations and quick consolidation of IT infrastructure.
The enclosure includes vented front and rear doors, a roof plate with full-depth cable entry, a 150 mm rear cable tray, and a divider panel to keep cabling organized. Grounding accessories and a baying kit improve EMI control and multi-rack scalability. These features reduce installation time, improve cooling effectiveness, and ease ongoing maintenance by providing predictable cable routing and accessible service points.
The TX 5541.245 uses sheet-steel construction with a dipcoat-primed exterior and powder-coated doors, delivering durable protection suitable for data-center atmospheres. While the datasheet highlights standard enclosure robustness and mounting compatibility, confirm exact CE marking, IP rating, or other certifications with the official documentation for your regulatory needs. In practice, the cabinet’s sturdy build, grounding options, and modular cabling features support compliance and reliable operation in modern IT environments.
