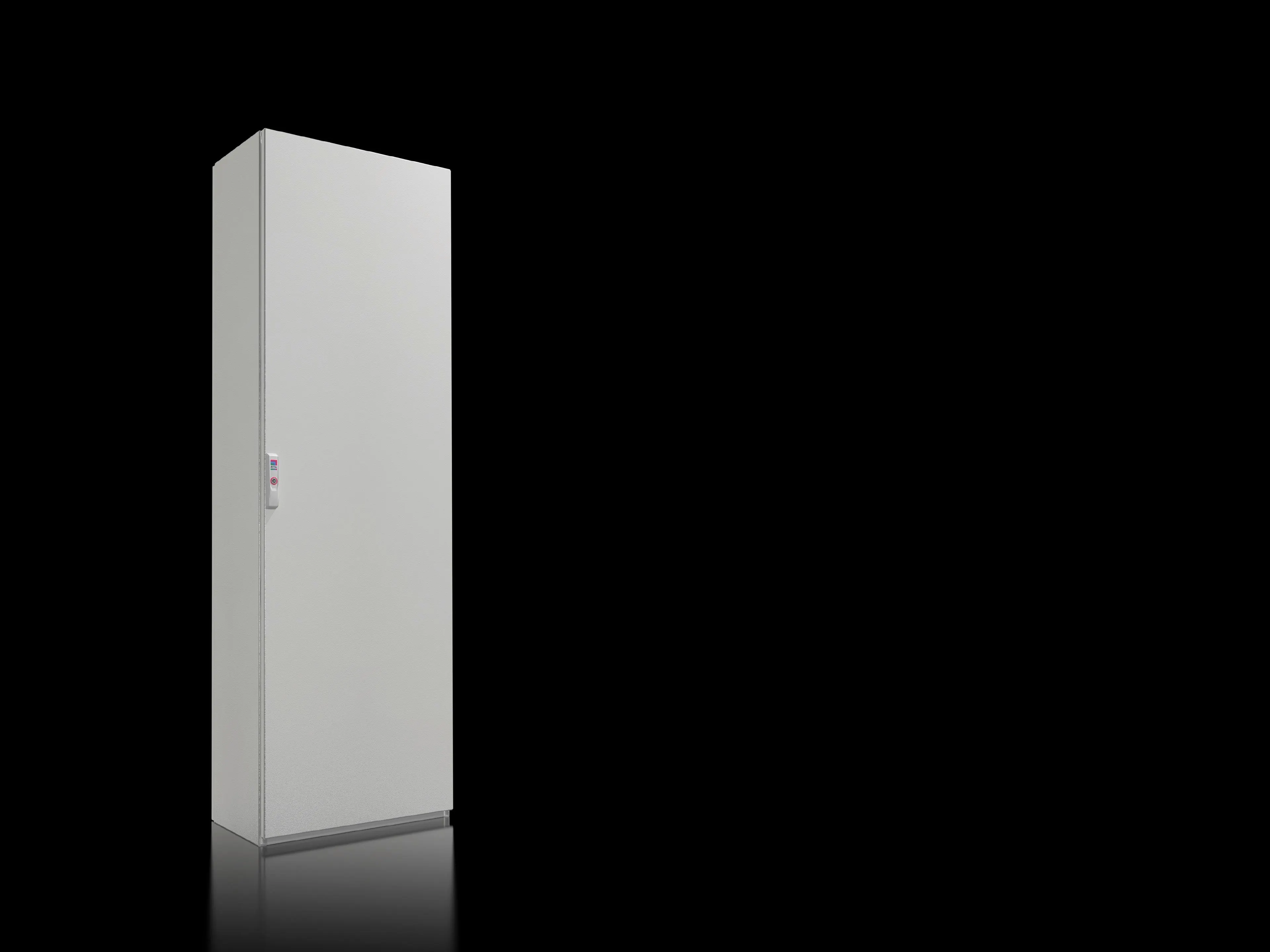

Rittal SE 5820.600 Enclosure - IP55/NEMA12, IK10
Part Number: 5820600
Manufacturer
Rittal
Part number
5820600
Alt Part Number
SE 5820.600
Quick Summary
Rittal SE 5820.600 Enclosure protects electrical and control gear in demanding industrial environments. Many users struggle to keep wiring organized and cabinets accessible while meeting IP, NEMA, and IK requirements. It delivers IP55 and NEMA 12 protection, IK10 impact resistance, and UL 50E Type 1 compliance, supporting safe, code-compliant installations. For manufacturers seeking scalable protection, the VX SE system is compatible with VX25 accessories, offering modularity and faster deployment. In addition, the sturdy sheet steel construction with powder-coated exterior minimizes maintenance and downtime.
Product Information
Extended Description
5820600 Rittal: VX SE Free-standing enclosure system, WHD: 600x1800x300 mm, Sheet Steel, with mounting plate, single door at the front
Article number
SE 5820.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 600 mm | Height: 1,800 mm | Depth: 300 mm
Dimensions mounting plate (W x H)
499 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
97 kg
PCF per pack (cradle-to-gate)
369.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959248
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE Free-standing enclosure system, WHD: 600x1800x300 mm, Sheet Steel, with mounting plate, single door at the front
Two integral mounting levels and a mounting plate deliver structured gear layout; business impact is faster wiring, improved serviceability, and better heat dissipation by reducing cable clutter; application spans automated lines, panel rooms, and distributed control cabinets. Roof and sides from a single piece with a roll-formed frame simplify assembly and seal integrity, boosting enclosure rigidity and reducing perforation risks; application where long-term protection and reduced maintenance matter. System compatibility with VX25 accessories makes future upgrades straightforward, lowering total cost of ownership and enabling quick changeouts; application for expanding control architectures or retrofit projects. Protection ratings IP55, NEMA 12, and IK10, plus UL 50E Type 1 compliance, give confidence in harsh environments, dust and impact resistance; this supports safety-sensitive applications in manufacturing and process industries. Sturdy sheet steel construction with dip coat primer and powder-coated exterior, plus zinc-plated mounting plate and gland plates, provides corrosion resistance and long service life; application in humid or corrosive environments reduces replacement cycles. Includes: one door, detachable rear panel, two punched rails (18 x 39 mm), mounting plate, gland plates, and robust locking mechanism; compatibility with VX SE system simplifies installation and spare-part standardisation across sites.
Get a Quick Quote for a Rittal 5820600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5820600?
Enquire Now
FAQs
The SE 5820.600 is designed as a VX SE free-standing enclosure with built-in mounting rails and a mounting plate, enabling straightforward VX25 accessory integration. This compatibility supports modular upgrades, simplifies retrofits, and reduces field wiring changes, helping maintenance teams adapt quickly to evolving control architectures without replacing the entire cabinet.
Constructed from sheet steel with a 1.5 mm enclosure wall (2.0 mm for the door) and a 1.5 mm rear panel, the unit offers IP55 protection, NEMA 12 rating, and IK10 impact resistance. The finish combines dip coat primer with powder coating on the exterior, delivering durable corrosion resistance suitable for harsh industrial environments.
Yes. With IP55 ingress protection, NEMA 12 enclosure rating, IK10 impact resistance, and UL 50E Type 1 compatibility, the SE 5820.600 is designed for demanding environments. It excels in dust-prone and clean-harsh industrial settings, facilitating safe operation of control gear while meeting regulatory expectations.
Key certifications include IP55 (IEC 60529), NEMA 12, IK10, and UL 50E Type 1, confirming protection against dust and water ingress, mechanical impact resistance, and compliance for electrical enclosures in commercial and industrial facilities. These standards reduce compliance risk and support safe installation across manufacturing, process, and automation environments.
The detachable rear panel, single-piece roof and sides, and modular VX SE compatibility simplify maintenance and future upgrades, reducing downtime during service and expansion. Durable powder-coated finishes and robust steel construction extend cabinet life, lowering replacement costs and total cost of ownership over the enclosure’s lifecycle.
