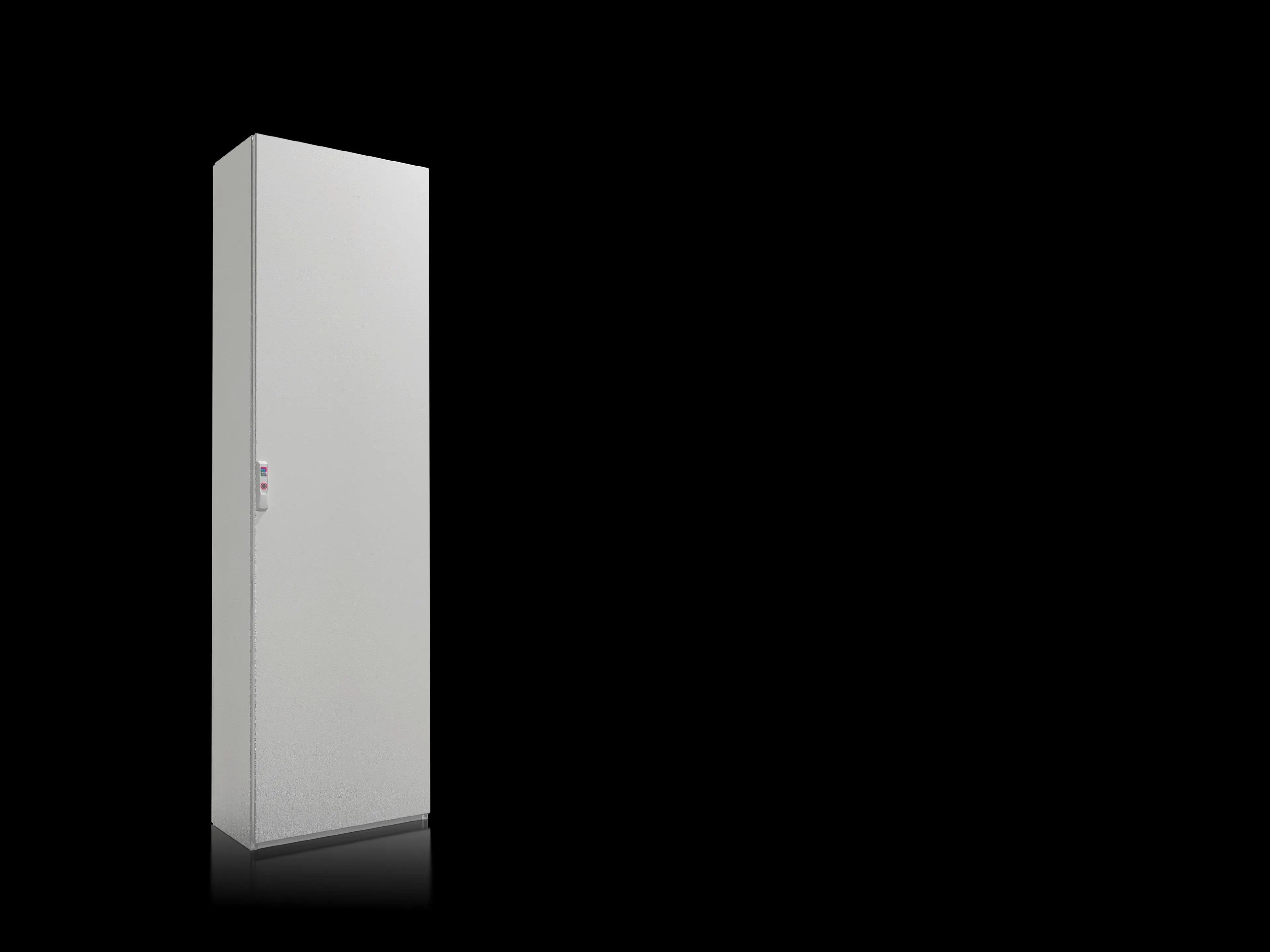

Rittal 5821600 Free-standing Enclosure - IP55
Part Number: 5821600
Manufacturer
Rittal
Part number
5821600
Alt Part Number
SE 5821.600
Quick Summary
Rittal 5821600 Free-standing Enclosure protects control panels in harsh industrial environments. Engineers often struggle with setup speed, accessory compatibility, and mounting rigidity when configuring cabinet systems. This enclosure delivers IP55 protection, IK10 impact resistance, and NEMA 12 compatibility, plus UL 50E Type 1 rating for reliable installations across commercial and process environments. By design, it integrates with VX25 accessories and features a mounting plate, enabling fast configuration and scalable layouts. The result is reduced field labor, shorter installation times, and lower lifecycle costs, while maintaining robust protection and easy service access for ongoing maintenance and future expansion.
Product Information
Extended Description
5821600 Rittal: VX SE Free-standing enclosure system, WHD: 600x2000x300 mm, Sheet Steel, with mounting plate, single door at the front
Article number
SE 5821.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 300 mm
Dimensions mounting plate (W x H)
499 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
104 kg
PCF per pack (cradle-to-gate)
396.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959255
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE Free-standing enclosure system, WHD: 600x2000x300 mm, Sheet Steel, with mounting plate, single door at the front
Feature: Free-standing VX SE enclosure system, WHD 600x2000x300 mm, sheet steel with mounting plate and a single front door. Business Impact: Provides a rigid, shielded platform with factory-installed mounting points, accelerating panel installation and wiring. Application: Ideal for industrial control cabinets in manufacturing and process plants. Feature: Two integral mounting levels, detachable rear panel and gland plates. Business Impact: Flexible internal layout and wiring routing, improving service access and future reconfiguration. Application: Equipment control panels requiring easy upgrades and modularity. Feature: Roof and sides formed from a single piece with a roll-formed frame. Business Impact: Fewer seam points, enhanced structural integrity, and improved ingress protection. Application: Environments where dust and moisture control is critical. Feature: VX SE compatibility with VX25 accessories. Business Impact: Scalable configuration options and standardized parts reduce procurement complexity. Application: Systems engineering teams implementing modular control cabinets. Feature: Material and finish – sheet steel construction, powder-coated exterior, zinc-plated mounting/gland plates. Business Impact: Superior corrosion resistance and predictable long-term performance. Application: Long-life cabinets in controlled or semi-exposed environments. Feature: Dimensions and weight – 600x2000x300 mm; 1 door; weight 104 kg; color RAL 7035. Business Impact: Clear footprint for planning and safe handling during installation. Application: New installs in factory floors and plant rooms with space constraints.
Get a Quick Quote for a Rittal 5821600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5821600?
Enquire Now
FAQs
Yes. The VX SE free-standing enclosure is designed to be system-compatible with VX25 accessories, enabling quick field upgrades and scalable configurations without replacing the cabinet.
It features IP55 protection, NEMA 12 compatibility, IK10 impact resistance, and UL 50E Type 1. The enclosure dimensions are 600 mm (W) x 2000 mm (H) x 300 mm (D), with a single front door.
The SE 5821.600 is rated IP55 and NEMA 12, with UL Type 1 and IK10. It is not rated for hazardous or explosive atmospheres; for such applications, consult explosion-protected enclosures that meet applicable ATEX/IECEx standards.
Key certifications include IP55 protection (IEC 60529), NEMA 12, IK10 impact resistance, and UL 50E Type 1. The enclosure is finished in RAL 7035 with zinc-plated mounting components, supporting CE-compliant industrial use.
The rugged sheet steel construction, powder-coated exterior, and modular VX SE / VX25 compatibility reduce maintenance cycles and downtime. With a detachable rear panel and durable mounting rails, wiring changes are simplified, delivering lower lifecycle costs and faster project ROI.
