Rittal SE 5823.600 Enclosure System VX SE-compatible - IP55
Part Number: 5823600
Manufacturer
Rittal
Part number
5823600
Alt Part Number
SE 5823.600
Quick Summary
Rittal SE 5823.600 Enclosure System is a free-standing sheet steel enclosure for robust control panel installations. Engineers often wrestle with VX25 accessory integration and rear-panel access in wide enclosures, which can slow project timelines. With IP55 and NEMA 12 protection, IK10 impact resistance, and UL 50E Type 1 compatibility, it aligns with stringent industry safety and performance standards. Designed for scalable configurations, the system enables faster assembly, simpler maintenance, and optimized space in factory automation applications, improving overall uptime and reducing total cost of ownership.
Product Information
Extended Description

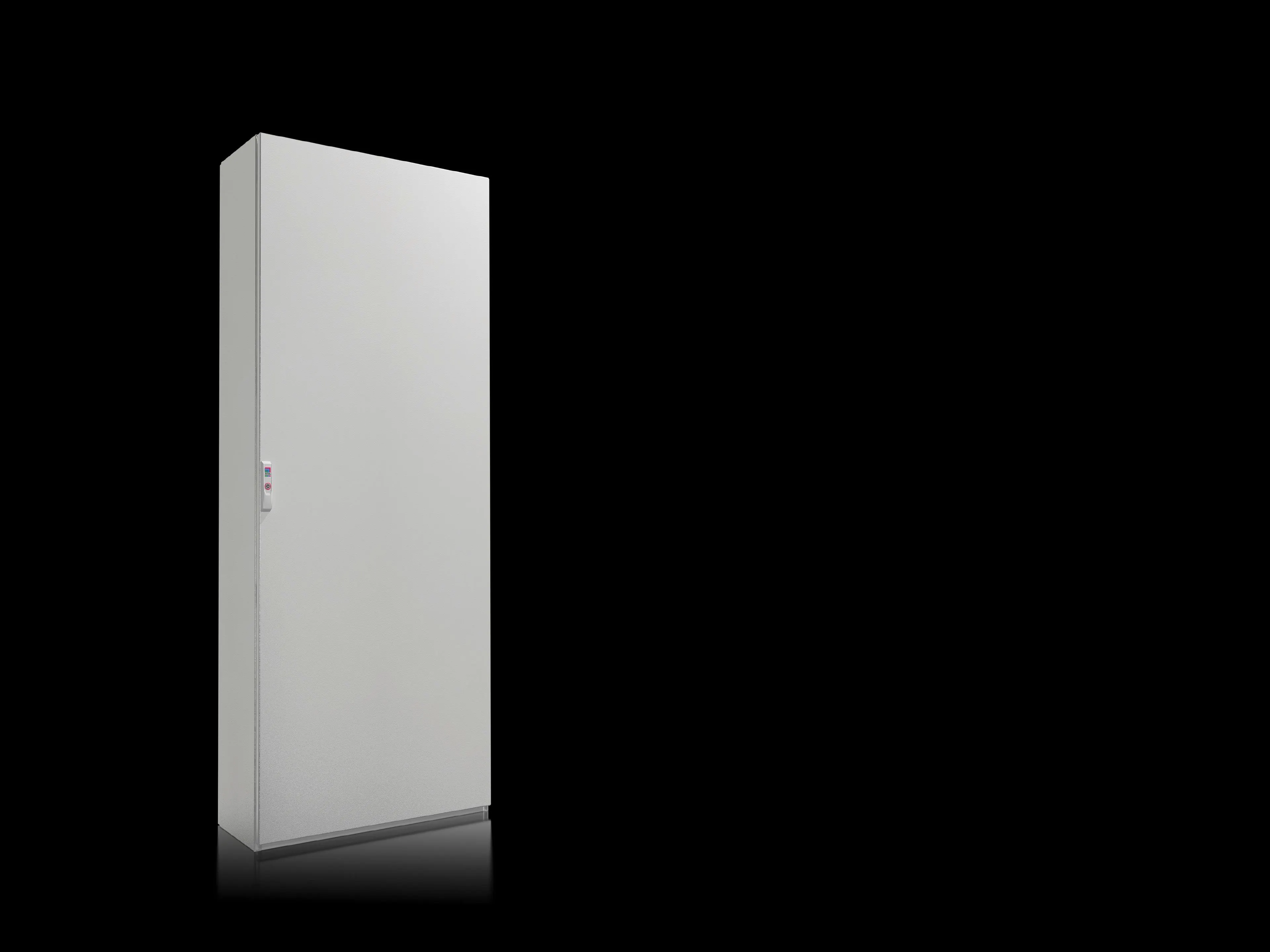

5823600 Rittal: VX SE free-standing enclosure system, WHD: 800x2000x300 mm, sheet steel, with mounting plate, single door at the front
Article number
SE 5823.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 300 mm
Dimensions mounting plate (W x H)
699 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
129 kg
PCF per pack (cradle-to-gate)
491.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959279
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE free-standing enclosure system, WHD: 800x2000x300 mm, sheet steel, with mounting plate, single door at the front
Feature VX SE compatibility and mounting plate integration → Business Impact Accelerates installation and simplifies future upgrades by enabling seamless VX25 accessory integration and precise mounting across wide enclosures. Application Ideal for machine control cabinets in automated lines where quick reconfiguration is required. Feature IP55, NEMA 12, and IK10 protection → Business Impact Provides robust environmental sealing and vandal-resistance, reducing downtime and service calls in dusty or humid factory floors. Application Suitable for harsh manufacturing environments where reliable enclosure integrity is critical. Feature WHD 800x2000x300 mm and mounting plate 699x1,896 mm → Business Impact Supports high-density control layouts and generous internal clearance, improving wiring efficiency and airflow. Application Large-scale automation panels and process control cabinets. Feature 2 punched rails 18x39 mm and rear panel, detachable → Business Impact Enables flexible internal mounting and easy rear access for wiring or retrofit work, cutting install time. Application Electrical cabinet assemblies and panel wiring in evolving systems. Feature Heavy-duty sheet steel construction (1.5–2.0 mm) and powder-coated finish → Business Impact Delivers long-term durability with low maintenance, reducing life-cycle costs. Application Industrial environments with exposure to impacts and corrosion risks. Feature Supplied components (door(s), gland plates, mounting hardware) → Business Impact Minimizes accessory sourcing and simplifies procurement, lowering project risk. Application Rapid deployment in configured enclosures with minimal field assembly.
Get a Quick Quote for a Rittal 5823600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5823600?
Enquire Now
FAQs
The SE 5823.600 uses a mounting plate measuring 699 mm x 1,896 mm with two punched rails (18 x 39 mm) and a detachable rear panel. This setup supports VX SE accessory compatibility, enabling straightforward module insertion, reconfiguration, and secure wiring in large, multicomponent control cabinets.
The enclosure features IP55 protection, NEMA 12 rating, and IK10 impact resistance. It is constructed from sheet steel with a 1.5 mm enclosure shell, 2.0 mm door, and 1.5 mm rear panel, with a powder-coated exterior for durability in industrial settings.
Yes. With IP55 dust and water ingress protection, IK10 impact resistance, and a robust powder-coated finish, the SE 5823.600 is well-suited for production floors, outdoors where sheltered, and other demanding environments requiring reliable enclosure integrity.
The enclosure complies with IP55 and NEMA 12 protection, UL 50E Type 1, ETIM EC000261, and ECLASS 27180101. It supports safe electrical installations in regulated settings and aligns with common industrial procurement classifications.
The heavy-gauge sheet steel construction combined with a primed, powder-coated exterior reduces maintenance needs and repaint cycles. A detachable rear panel and gland plates simplify retrofits, while VX SE compatibility minimizes future refurbishment costs by accommodating evolving control architectures.
