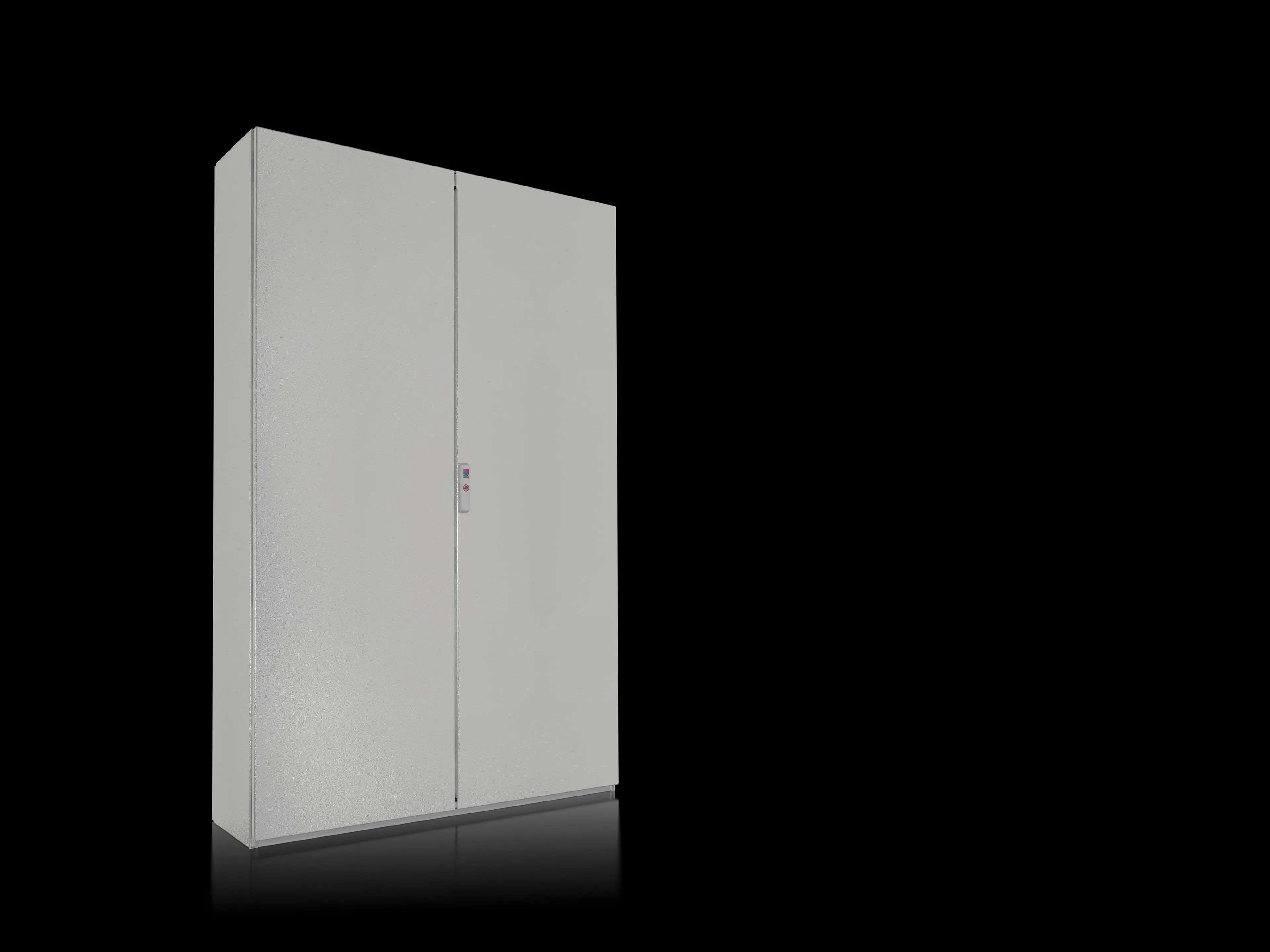

Rittal SE 5824.600 Free-standing Enclosure - IP55
Part Number: 5824600
Manufacturer
Rittal
Part number
5824600
Alt Part Number
SE 5824.600
Quick Summary
Rittal SE 5824.600 Free-standing enclosure protects control cabinets in harsh industrial environments. It addresses the challenge of mounting complex drives and switchgear behind a robust, IP-rated shell. With IP55 protection, NEMA 12 compatibility, and UL 50E Type 1 readiness, the enclosure supports global compliance and operating reliability. This VX SE system integrates smoothly with VX25 accessories, offering scalable configuration, faster installation, and lower total cost of ownership for high-mix, mid-volume production lines.
Product Information
Extended Description
5824600 Rittal: VX SE free-standing enclosure system, WHD: 1200x1800x300 mm, sheet steel, with mounting plate, two doors at the front
Article number
SE 5824.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 1,200 mm | Height: 1,800 mm | Depth: 300 mm
Dimensions mounting plate (W x H)
1,099 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Lock
Number of locks: 2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
169 kg
PCF per pack (cradle-to-gate)
643.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959286
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE free-standing enclosure system, WHD: 1200x1800x300 mm, sheet steel, with mounting plate, two doors at the front
Feature → Business Impact → Application: The VX SE free-standing design uses a roll-formed frame with roof and sides in one piece, delivering superior rigidity and fasterassembly while reducing panel misalignment. This translates to shorter project lead times and fewer on-site adjustments when wiring and mounting field devices in large control cabinets for packaging and process lines. Feature → Business Impact → Application: IP55, NEMA 12, and UL 50E Type 1 ratings provide robust environmental protection for electronics in dusty or humid factory floors, improving uptime and reducing risk of costly faults in conveyors, motors, and automation panels. Feature → Business Impact → Application: Supplied mounting plate, gland plates, rear panel (detachable), two punched rails, and hinge options enable flexible layouts and easier cable management, cutting commissioning time and supporting rapid configuration changes in pilot lines or custom machinery. Feature → Business Impact → Application: Powder-coated exterior (RAL 7035) with zinc-plated mounting components extends service life in corrosive or wash-down environments, lowering maintenance cycles and total cost of ownership for long-running production cells. Feature → Business Impact → Application: VX25 accessory compatibility and a two-door arrangement allow scalable growth, larger enclosure widths, and streamlined retrofits in evolving automation architectures across automotive, food & beverage, and heavy industry.
Get a Quick Quote for a Rittal 5824600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5824600?
Enquire Now
FAQs
Yes, the SE 5824.600 is system-compatible with VX25 accessories. It includes a mounting plate sized 1099 mm by 1696 mm, plus two punched rails, enabling flexible internal layouts and easy integration of controllers and power devices.
The enclosure uses sheet steel construction with a 1.5 mm enclosure shell and a 2.0 mm door, plus a detachable 1.5 mm rear panel. It carries IP55 protection, NEMA 12 suitability, IK10 impact resistance, and UL 50E Type 1 compliance, with powder-coated external finish.
IP55 and NEMA 12 provide protection in many indoor and sheltered environments, but for full outdoor exposure additional weather-protection measures are recommended. The unit is best suited for factory floors, sheltered wash-down areas, and protected process lines.
Key certifications include IP55 (IEC 60529), NEMA 12, IK10, and UL 50E Type 1. The product also aligns with ETIM EC000261 and ECLASS 27180101, supporting procurement classification and interoperability across global supply chains.
The powder-coated exterior and zinc-plated mounting hardware resist corrosion, reducing maintenance intervals. Two-door access, detachable rear panel, and VX25 compatibility shorten service and upgrade cycles, delivering lower total cost of ownership and faster return on investment in automated production environments.
