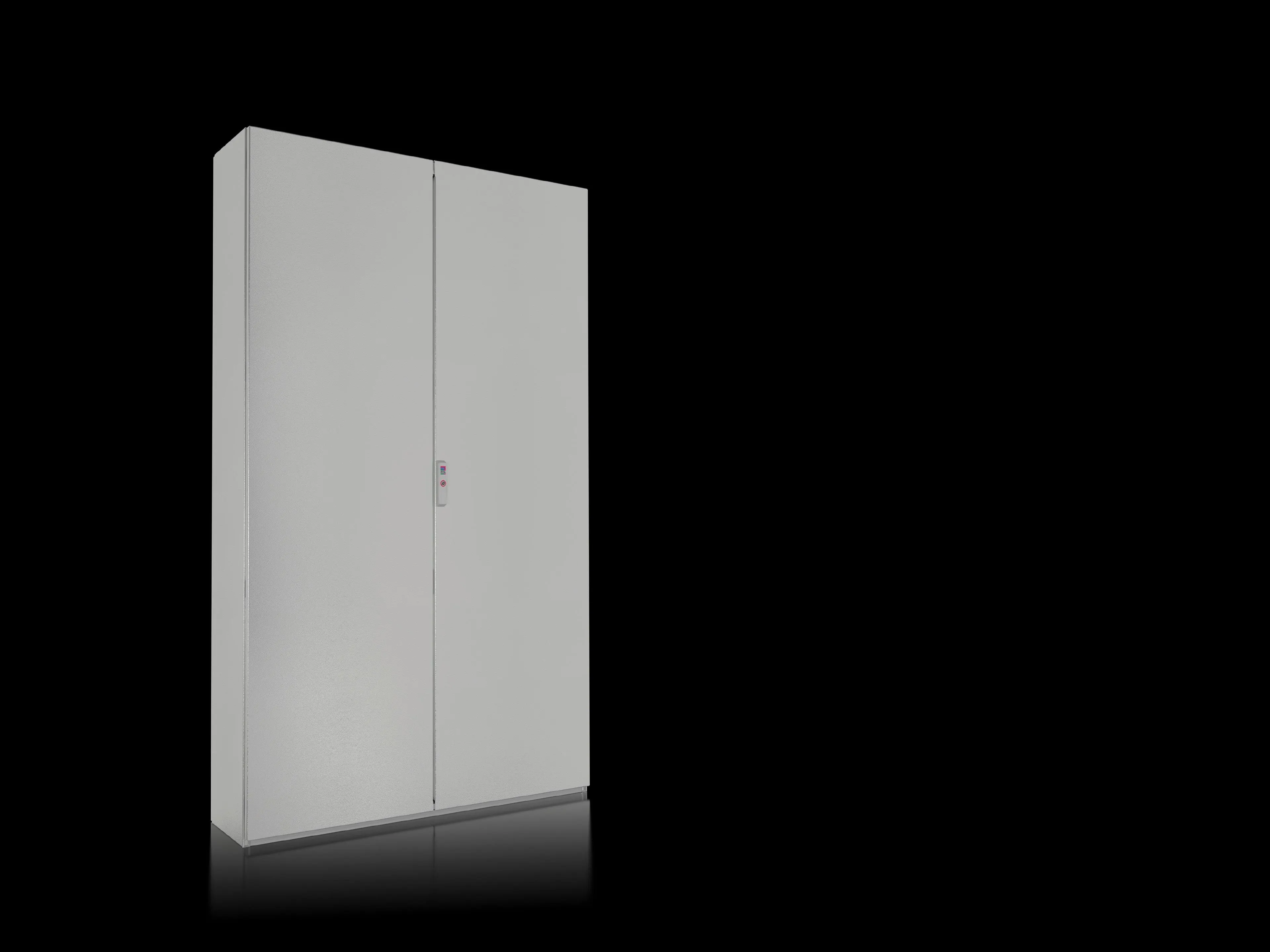

Rittal SE 5825.600 Enclosure System - IP55
Part Number: 5825600
Manufacturer
Rittal
Part number
5825600
Alt Part Number
SE 5825.600
Quick Summary
Rittal SE 5825.600 enclosure system is a rugged, free-standing sheet-steel enclosure designed for industrial control gear. It minimizes installation time and wiring complexity by combining roof and side panels with a detachable rear panel and two front doors. This enclosure carries IP55, NEMA 12, IK10 and UL 50E Type 1 certifications, supporting safe operation in harsh factories, warehouses and process lines. With VX25 accessory compatibility, you gain scalable configurations and faster service, delivering lower total cost of ownership and easier maintenance.
Product Information
Extended Description
5825600 Rittal: VX SE free-standing enclosure system, WHD: 1200x2000x300 mm, sheet steel, with mounting plate, two doors at the front
Article number
SE 5825.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 1,200 mm | Height: 2,000 mm | Depth: 300 mm
Dimensions mounting plate (W x H)
1,099 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
185 kg
PCF per pack (cradle-to-gate)
704.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959293
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE free-standing enclosure system, WHD: 1200x2000x300 mm, sheet steel, with mounting plate, two doors at the front
Rugged sheet-steel construction provides reliable protection in demanding environments, reducing downtime and maintenance costs. With IP55, NEMA 12 and IK10 ratings, it shields equipment from dust, water ingress and mechanical shocks. Integrated roof and side panels plus a roll-formed frame streamline assembly, cutting installation time on complex enclosures and simplifying field upgrades. Mounting plate and two punched rails (18x39 mm) support fast, secure mounting of devices and accessories, while the detachable rear panel enables easy cable management and service access. VX25 compatibility means you can configure with accessory families for future-proofing, and two front doors offer flexible access with the option to swap hinges to the opposite side. Powder-coated exterior and zinc-plated gland plates deliver corrosion resistance and durable interfaces in damp or outdoor environments. Dimensions 1200x2000x300 mm and weight 185 kg per pack assist in planning and logistics, while cradle-to-gate PCF of 704.9 kg CO2 eq (Cat B) supports sustainability goals.
Get a Quick Quote for a Rittal 5825600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5825600?
Enquire Now
FAQs
SE 5825.600 includes a mounting plate and two punched rails (18x39 mm) for secure device mounting, and ships with a detachable rear panel for easy cable management. VX25 compatibility enables seamless integration with a broad range of VX25 accessories, allowing incremental configuration upgrades without replacing the enclosure.
The enclosure uses sheet steel with front and rear panels ranging from 1.5 to 2.0 mm, coated with a dip-primed, powder-coated exterior. It achieves IP55 protection, NEMA 12 ambient protection, IK10 impact resistance, and UL 50E Type 1 compliance, making it suitable for harsh industrial environments.
Yes, with IP55 and a powder-coated exterior, the SE 5825.600 is appropriate for damp and outdoor-adjacent installations where dust and water ingress must be controlled. Installation considerations include ensuring appropriate ventilation and wiring access through gland plates, with two front doors for easy servicing and customizable hinge orientation.
SE 5825.600 is certified to IP55 and NEMA 12, rated IK10 for impact, UL 50E Type 1 for electrical assemblies, and uses ETIM EC000261/ECLASS 27180101 classifications, supporting compliance in global installations and procurement documentation.
The enclosure reduces maintenance intervals through robust corrosion resistance and durable fasteners, while VX25 compatibility enables future-proofed configurations without new enclosures. With the included mounting plate, rails, and detachable rear panel, installation and upgrades are faster, lowering labor costs and lifecycle downtime for control panels.
