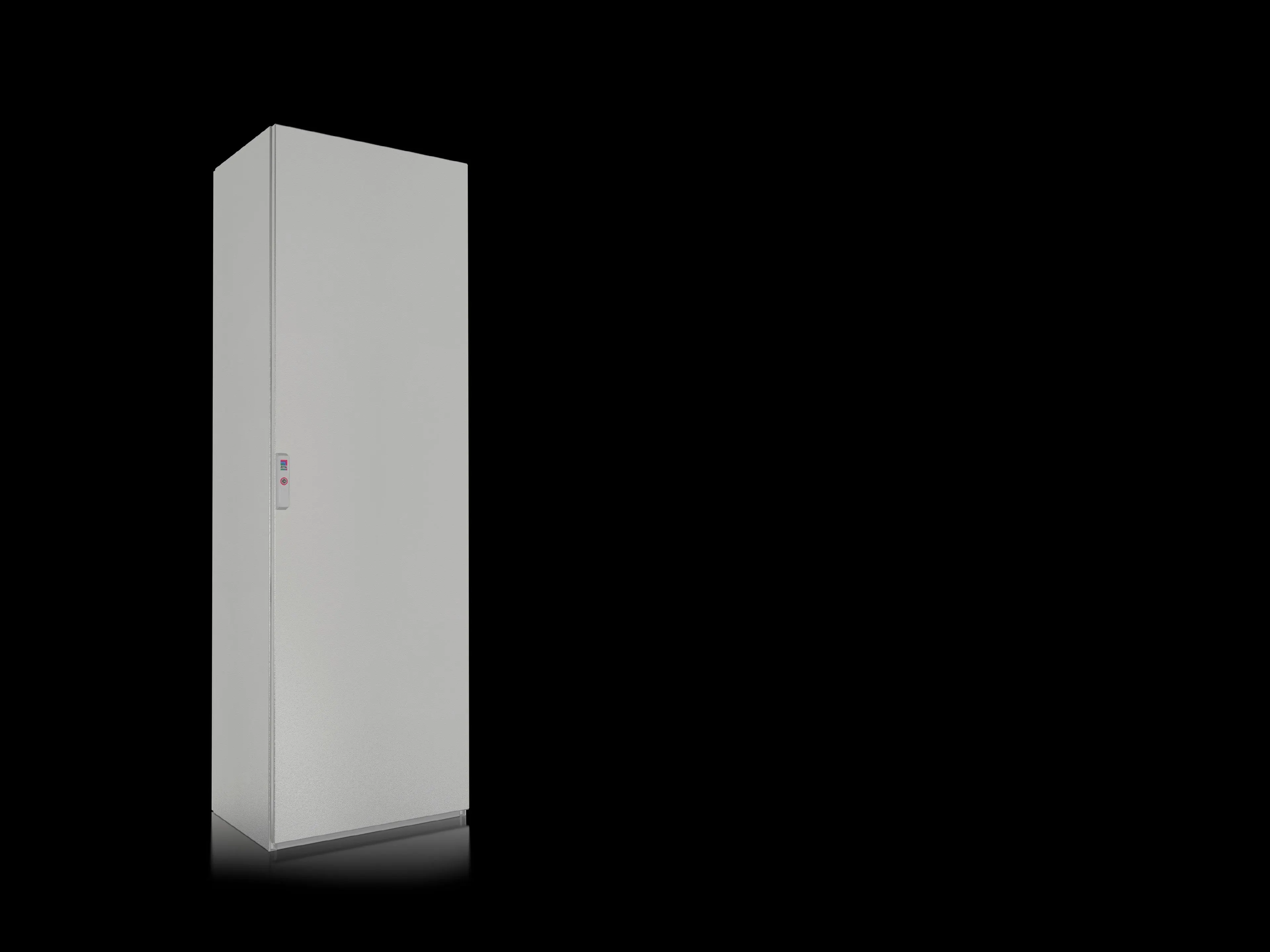

Rittal 5830600 Free-standing Enclosure - IP55
Part Number: 5830600
Manufacturer
Rittal
Part number
5830600
Alt Part Number
SE 5830.600
Quick Summary
Rittal 5830600 free-standing enclosure protects electrical gear in control panels and machine rooms. Engineers often grapple with assembly complexity and misalignment, but VX SE streamlines fitment with a single-piece roof and sides. It delivers IP55 protection, IK10 impact resistance, and NEMA 12/UL 50E Type 1 compatibility for diverse regulatory needs. With VX25 accessory compatibility and a robust sheet-steel build, it supports scalable automation while reducing lifecycle costs. The enclosure ships with a mounting plate, rear panel, gland plates, and locking hardware, improving installation reliability and reducing rework. In demanding environments, the combination of IP55, IK10, and corrosion-resistant finishes helps protect critical assets and uptime.
Product Information
Extended Description
5830600 Rittal: VX SE free-standing enclosure system, WHD: 600x1800x400 mm, sheet steel, with mounting plate, single door at the front
Article number
SE 5830.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 600 mm | Height: 1,800 mm | Depth: 400 mm
Dimensions mounting plate (W x H)
499 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
97.4 kg
PCF per pack (cradle-to-gate)
371.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959156
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE free-standing enclosure system, WHD: 600x1800x400 mm, sheet steel, with mounting plate, single door at the front
Feature VX SE free-standing enclosure system with VX25 compatibility and a single-piece roof and sides → Business Impact Reduces field installation time and minimizes misalignment gaps, enabling faster commissioning and fewer service calls → Application Large automation cabinets and control enclosures in manufacturing lines. Feature Sheet-steel construction with dipcoat-primed, powder-coated exterior in RAL 7035 and zinc-plated mounting/gland plates → Business Impact Extends service life in aggressive environments and reduces maintenance costs through durable finishes and corrosion resistance → Application Environments such as conveyors, packaging lines, and process automation where uptime matters. Feature Protection ratings IP55, IK10, NEMA 12, UL 50E Type 1 → Business Impact Provides regulatory compliance certainty and robust protection against dust, moisture, and impacts → Application Systems requiring class-leading enclosure protection for electrical and electronic hardware. Feature Internal mounting options: mounting plate (499x1696 mm), two punched rails 18x39 mm, detachable rear panel, and gland plates → Business Impact Flexible device placement, tidy wiring, and straightforward future reconfigurations → Application DIN-rail devices, power distributors, and control modules in evolving control cabinets. Feature Front-door design with 3 mm double-bit lock and adjustable door orientation (R/H hinge) → Business Impact Enhances security and serviceability while enabling simple changes in installation orientation → Application Panel builds where access control and maintenance efficiency are priorities. Feature Weight and sustainability context: 97.4 kg per pack with PCF of 371.1 kg CO2 eq (Cat B) → Business Impact Indicates a robust, long-life cabinet with transparent environmental footprint for procurement decisions → Application Green procurement and lifecycle cost assessments in capital projects.
Get a Quick Quote for a Rittal 5830600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5830600?
Enquire Now
FAQs
Begin with a level foundation, swap the door hinge if needed, install the mounting plate (499x1696 mm), fit gland plates, mount internal gear on two 18x39 mm rails, and connect wiring through the detachable rear panel. VX25 compatibility enables scalable configurations and streamlined cable management.
The enclosure provides IP55 protection against dust and water jets, IK10 impact resistance for physical shocks, and NEMA 12 compatibility. The body uses sheet steel with dipcoat-primed and powder-coated exterior, with zinc-plated mounting plates and gland plates to resist corrosion in factory floors.
Yes, it is rated for Type 1 installations under UL 50E, with a single front door and a 3 mm double-bit lock. The enclosure’s dimensions, mounting plate, and detachable rear panel are designed to meet standard electrical cabinet requirements in commercial and industrial environments.
Two mounting levels and a detachable rear panel enable flexible layout. The included mounting plate (499x1696 mm) supports a range of equipment, with two punched rails 18x39 mm for DIN-rail components and gland plates for cable entry. This arrangement reduces wiring errors and simplifies future reconfigurations.
Packs include one enclosure weighing 97.4 kg, indicating a sturdy, vibration-resistant cabinet. The product carries a PCF of 371.1 kg CO2 equivalent (Category B), reflecting a cradle-to-gate estimate. While heavy, the long service life and reduced maintenance costs offer a favorable ROI for critical control applications.
