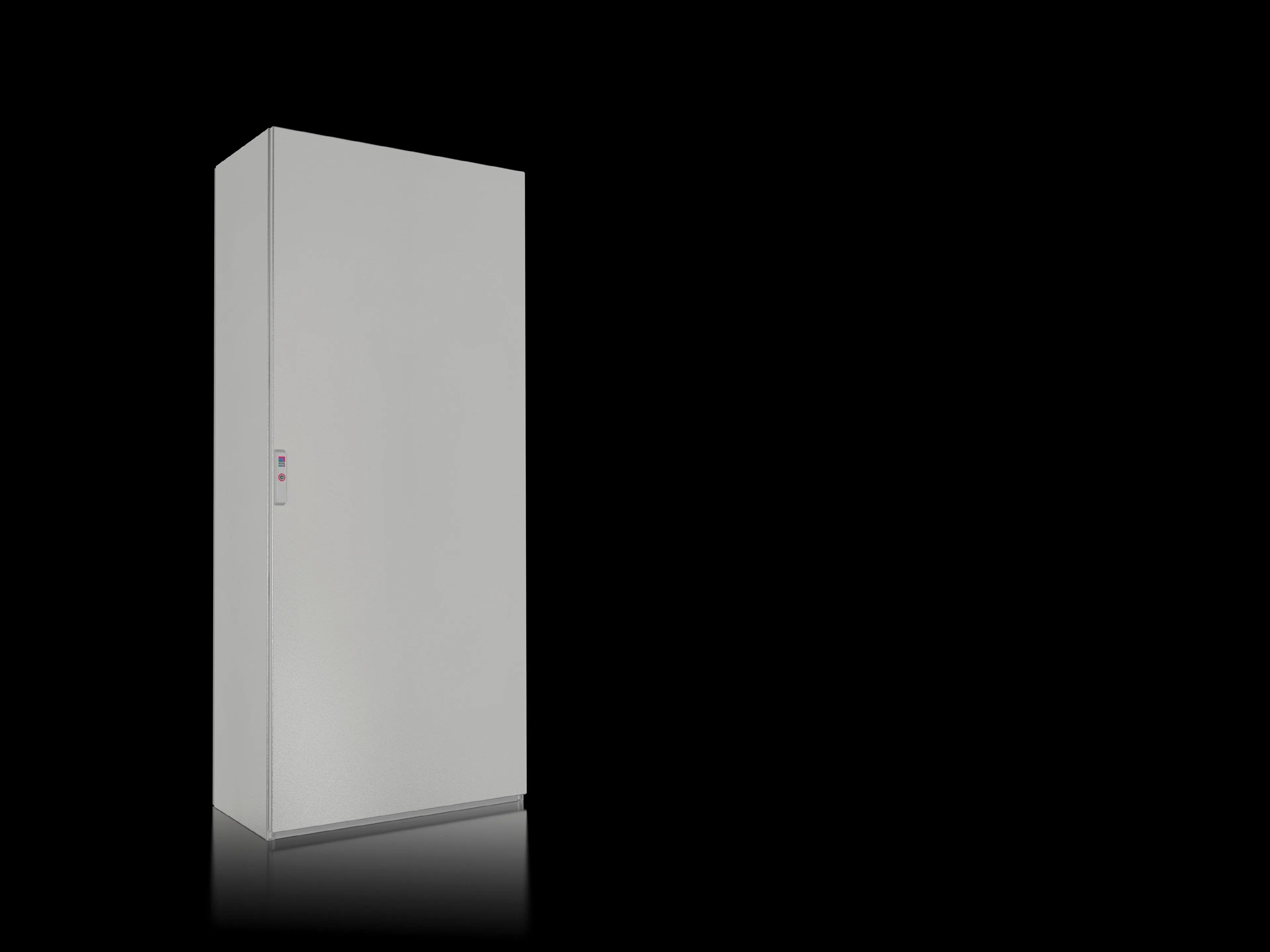

Rittal SE 5831.600 Free-standing Enclosure - IP55
Part Number: 5831600
Manufacturer
Rittal
Part number
5831600
Alt Part Number
SE 5831.600
Quick Summary
Rittal SE 5831.600 free-standing enclosure protects electrical panels in industrial control cabinets. Integrating varied equipment and mounting systems often slows projects and inflates costs, but this system streamlines configuration with a single-piece side panel design and VX25 accessory compatibility. It delivers IP55 protection, IK10 impact resistance, and NEMA 12/UL Type 1 compliance to perform reliably in harsh environments. By standardizing enclosure platforms and enabling straightforward mounting, it reduces field labor and spare-part complexity. This VX SE solution also supports scalable configurations, improving serviceability and lifecycle management while aligning with lean manufacturing and compliance workflows. This translates to faster commissioning, reduced changeover time, and predictable maintenance planning for critical process lines.
Product Information
Extended Description
5831600 Rittal: VX SE free-standing enclosure system, WHD: 800x1800x400 mm, sheet steel, with mounting plate, single door at the front
Article number
SE 5831.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 800 mm | Height: 1,800 mm | Depth: 400 mm
Dimensions mounting plate (W x H)
699 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
117 kg
PCF per pack (cradle-to-gate)
445.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959125
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE free-standing enclosure system, WHD: 800x1800x400 mm, sheet steel, with mounting plate, single door at the front
VX SE free-standing enclosure features a rigid sheet-steel chassis with two integral mounting levels, a screw-fastened rear panel, and a front door. This configuration accelerates wiring, reduces field modifications, and lowers commissioning time while minimizing risk of wiring errors. The system’s compatibility with VX25 accessories enables scalable configurations and future-proof expandsions, which translates into lower total cost of ownership as plants grow or reconfigure. With a single-piece roof and sides, the enclosure achieves improved rigidity and reduced ingress paths, boosting durability in dusty or humid environments used in automation cabinets. Dimensions WHD 800x1800x400 mm, mounting plate 699x1696 mm, and integrated rails standardize layout and streamline cable management. Protection ratings IP55 / NEMA 12 and IK10, plus UL Type 1, support global compliance for regulated industries. The included rear panel, lock, gland plates, and two punched rails simplify installation and service, while the weight (117 kg per pack) informs crane or forklift planning. PCF 445.8 kg CO2 eq (Cat B) provides sustainability metrics for responsible procurement. Overall, the VX SE system offers efficient maintenance, predictable sourcing, and a proven path to compliant, scalable automation enclosures.
Get a Quick Quote for a Rittal 5831600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5831600?
Enquire Now
FAQs
Yes. The SE 5831.600 is designed for VX25 accessory compatibility, enabling scalable configurations as your system grows. The enclosure ships with a door that can be swapped to the opposite side, supporting flexible installation layouts and simplifying retrofits in existing control panels.
The enclosure offers IP55 protection and NEMA 12 ratings, with IK10 impact resistance, and UL Type 1 for electrical assemblies. These ratings certify suitability for dusty or damp environments and provide compliance in global automation settings.
It is ideal for free-standing control panels in automation cabinets, process automation, and industrial automation deployments where robust protection, scalable mounting, and easy maintenance are priorities. Its dimensions and mounting plate compatibility support standard rack configurations in manufacturing lines.
Plan for a 800x1800x400 mm footprint with a 699x1696 mm mounting plate, two 18x39 mm punched rails, and a detachable rear panel. The enclosure weighs 117 kg per pack, so arrange crane or forklift access, and note the door hinge is user-reconfigurable for left or right mounting during installation.
Its standardized footprint, VX25 compatibility, and simple maintenance reduce field labor, spare parts, and commissioning time. Durable powder-coated finish and high protection ratings minimize downtime in harsh environments, contributing to lower lifecycle costs and more predictable procurement for regulated industries.
