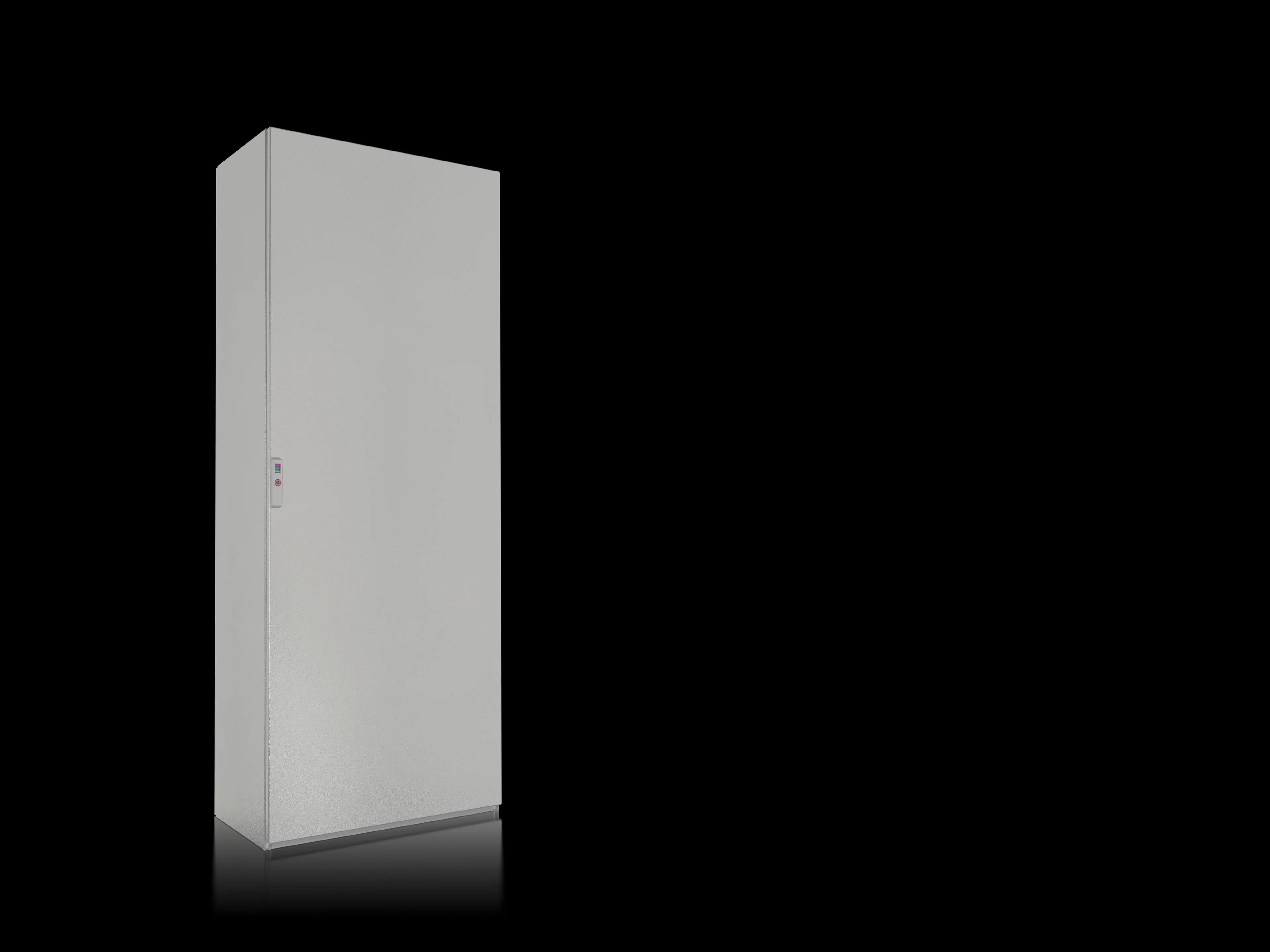

Rittal 5832600 Free-standing Enclosure - IP55
Part Number: 5832600
Manufacturer
Rittal
Part number
5832600
Alt Part Number
SE 5832.600
Quick Summary
Rittal 5832600 Free-standing Enclosure provides robust protection for industrial control panels in harsh environments. Engineers often face lengthy installation times and limited configurability; this enclosure addresses that by offering a single-piece roof and sides, plus VX25 accessory compatibility to streamline wiring and expansion. The system carries IP55 protection for dependable operation in demanding settings, NEMA 12 rating for dust and moisture resistance, and IK10 impact resistance to withstand rough handling. With a powder-coated surface and zinc-plated mounting plate, it delivers long-term durability while simplifying maintenance. This combination supports faster project delivery, reduced lifecycle costs, and scalable configurations for growing automation needs.
Product Information
Extended Description
5832600 Rittal: VX SE free-standing enclosure system, WHD: 800x2000x400 mm, sheet steel, with mounting plate, single door at the front
Article number
SE 5832.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 400 mm
Dimensions mounting plate (W x H)
699 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
128 kg
PCF per pack (cradle-to-gate)
487.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959200
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE free-standing enclosure system, WHD: 800x2000x400 mm, sheet steel, with mounting plate, single door at the front
Feature → Business Impact → Application: VX SE free-standing enclosure design reduces field fabrication and install time, enabling faster project start-ups and lower on-site risk. The sturdy sheet steel body and textured powder coating ensure long-term corrosion resistance in manufacturing floors and outdoor-adjacent areas, cutting maintenance costs and downtime. Application: process lines and industrial controls where reliability matters long-term. Feature → Business Impact → Application: System-compatible with VX25 accessories allows modular upgrades without replacing the enclosure, delivering scalable control cabinets as automation evolves. Benefit: minimizes spare-part inventory and accelerates changeouts during plant upgrades. Application: OEMs and system integrators planning phased control-system revamps. Feature → Business Impact → Application: Large footprint WHD 800x2000x400 mm and two integral mounting levels support high-density electronics and power distribution inside a single enclosure, reducing cabinet count and optimizing floor space. Application: switchgear and PLC/PC-based control panels in packaging, metals processing, and water treatment plants. Feature → Business Impact → Application: IP55, NEMA 12, and IK10 certifications provide robust protection against dust, water ingress, and mechanical impact, helping meet stringent industry standards with less risk of non-compliance. Application: hazardous or dusty environments such as CNC machining, material handling, and robotics cells. Feature → Business Impact → Application: Front-door access and removable rear panel facilitate convenient wiring access and serviceability, lowering maintenance time and improving uptime. Application: routine diagnostics, cable routing, and periodic inspections in centralized control rooms and on the shop floor. Feature → Business Impact → Application: Color and finish (RAL 7035, dipcoat-primed with powder coating) deliver a professional appearance and enhanced scratch resistance, reducing repaint cycles in busy facilities. Application: automotive assembly lines and food-and-beverage processing where hygiene and aesthetics matter.
Get a Quick Quote for a Rittal 5832600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5832600?
Enquire Now
FAQs
The VX SE free-standing enclosure is designed to work with VX25 accessories, enabling plug-and-play configuration for mounting rails, gland plates, and access panels. This compatibility reduces modification time, minimizes wiring errors, and supports future expansion without replacing the enclosure.
SE 5832.600 provides IP55 protection, NEMA 12 compliance, and IK10 impact resistance, along with UL 50E Type 1 suitability. These certifications ensure dust and water ingress protection, electrical safety, and mechanical durability in demanding industrial settings.
The enclosure measures 800 mm wide, 2,000 mm high, and 400 mm deep, with a mounting plate size of 699 x 1,896 mm. It includes two integral mounting levels and a single front door, with a rear panel that can be detached for accessible wiring.
Yes, the enclosure is specified for Type 1 rating under UL 50E, indicating suitability for indoor electrical control cabinet installations. It complements environments requiring standard electrical safety and enclosure protection in North American markets.
Key factors include the powder-coated exterior for corrosion resistance, zinc-plated mounting plate, and the ability to swap hinge side without major rework. The large internal volume accommodates high-density electronics, reducing cabinet count and enabling faster commissioning and easier maintenance.
