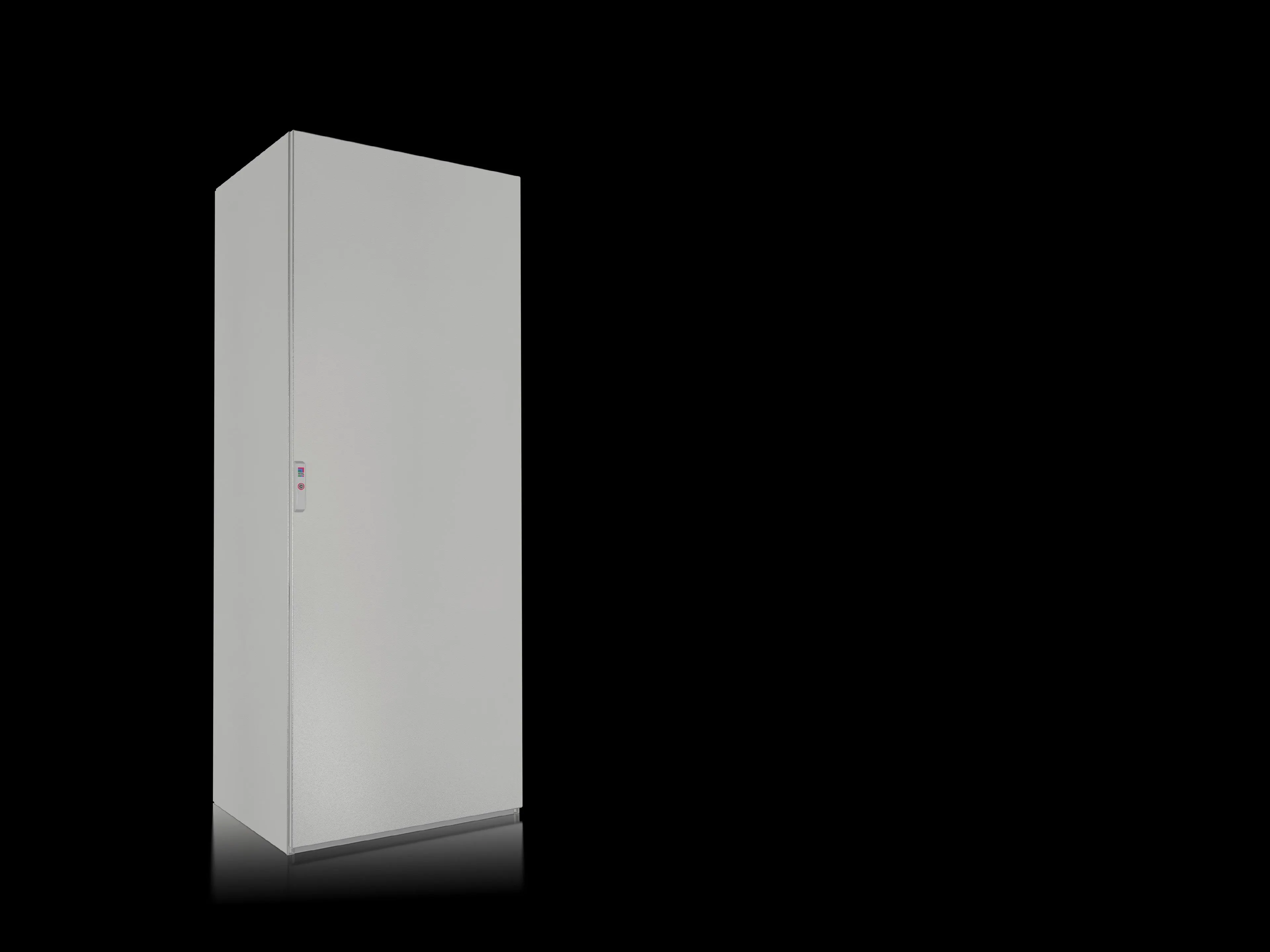

Rittal 5834600 Free-standing enclosure - IP55
Part Number: 5834600
Manufacturer
Rittal
Part number
5834600
Alt Part Number
SE 5834.600
Quick Summary
Rittal 5834600 free-standing enclosure protects electrical equipment in industrial control panels. Engineers often contend with installation complexity and sealing gaps on wide enclosures, so a robust, single-piece roof and side design can simplify assembly. Key protections include IP55, IK10 impact resistance, NEMA 12 compatibility, and UL Type 1 listing, delivering reliable performance in demanding facilities. VX SE compatibility and easy VX25 accessory integration enable scalable configurations, reducing rework and long-term costs. This enclosure supports efficient procurement and maintenance, while delivering proven reliability for growing automation projects.
Product Information
Extended Description
5834600 Rittal: VX SE free-standing enclosure system, WHD: 800x2000x600 mm, sheet steel, with mounting plate, single door at the front
Article number
SE 5834.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 600 mm
Dimensions mounting plate (W x H)
699 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
142 kg
PCF per pack (cradle-to-gate)
541 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959224
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE free-standing enclosure system, WHD: 800x2000x600 mm, sheet steel, with mounting plate, single door at the front
Feature: VX SE free-standing enclosure system with WHD 800x2000x600 mm and a one-piece roof and side construction. Business Impact: Improves structural integrity, reduces installation steps, and accelerates commissioning for large control panels. Application: Ideal for machine builders and panel shops upgrading from modular or welded enclosures. Feature: Sheet steel construction with a 1.5 mm enclosure, 2.0 mm door, 1.5 mm rear panel, 3.0 mm mounting plate. Business Impact: Delivers durable protection against impact and wear in factory environments, supporting long service life and predictable maintenance. Application: Enclosures housing power and control electronics in harsh plants. Feature: Powder-coated exterior in RAL 7035 with zinc-plated mounting and gland plates. Business Impact: Improves corrosion resistance and aesthetic consistency while simplifying lifecycle upkeep. Application: Outdoor or semi-enclosed industrial spaces requiring robust finish and easy cleaning. Feature: Integrated mounting plate, two punched rails, detachable rear panel, and single front door. Business Impact: Streamlines internal mounting and cable management, enabling fast reconfiguration and service. Application: Rack-and-panel configurations for variable automation layouts. Feature: VX SE system compatibility and VX25 accessory readiness. Business Impact: Enables scalable, future-proof installations with modular upgrades, reducing retrofit costs. Application: Large-scale manufacturing lines and multi-team projects seeking standardized enclosures. Feature: Protection and compliance: IP55, NEMA 12, IK10, UL Type 1. Business Impact: Ensures regulatory compliance and protection against dust, water ingress, and impact, minimizing downtime. Application: Regulated or harsh environments like process, packaging, and general automation.
Get a Quick Quote for a Rittal 5834600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5834600?
Enquire Now
FAQs
The 5834600 is designed to be VX SE compatible, with a mounting plate and enclosure dimensions that align with VX25 accessories. This enables modular expansion and reconfiguration without replacing the entire cabinet, allowing teams to scale control architectures as processes evolve while maintaining consistent protection levels and fit.
The enclosure provides IP55 protection, NEMA 12 suitability, and IK10 impact resistance, along with UL Type 1 listing. IP55 ensures dust and water spray resistance, NEMA 12 suits indoor harsh environments, IK10 indicates robust impact protection, and UL Type 1 confirms suitability for general indoor electrical equipment—titting essential industrial environments.
Supply includes the enclosure, solid top and sides, front door, mounting plate, gland plates, rear panel (detachable), two punched rails, and a lock. The rear panel is detachable, and the hinge arrangement for the right/left door can be swapped, offering installation flexibility to accommodate room layouts and servicing access.
Yes. Built from sheet steel with a powder-coated exterior and zinc-plated mounting components, it is designed for demanding environments. It supports a fixed base/stand and provides mounting rails and a mounting plate for internal equipment. The 800x2000x600 mm footprint and integrated mounting options simplify installation in constrained spaces.
Each pack weighs 142 kg, reflecting its heavy-duty construction. Plan for appropriate lifting equipment and verified site access during delivery. The packaging is designed to protect the enclosure during transport, but on-site handling should account for the unit’s mass to ensure safe installation and avoid damage.
