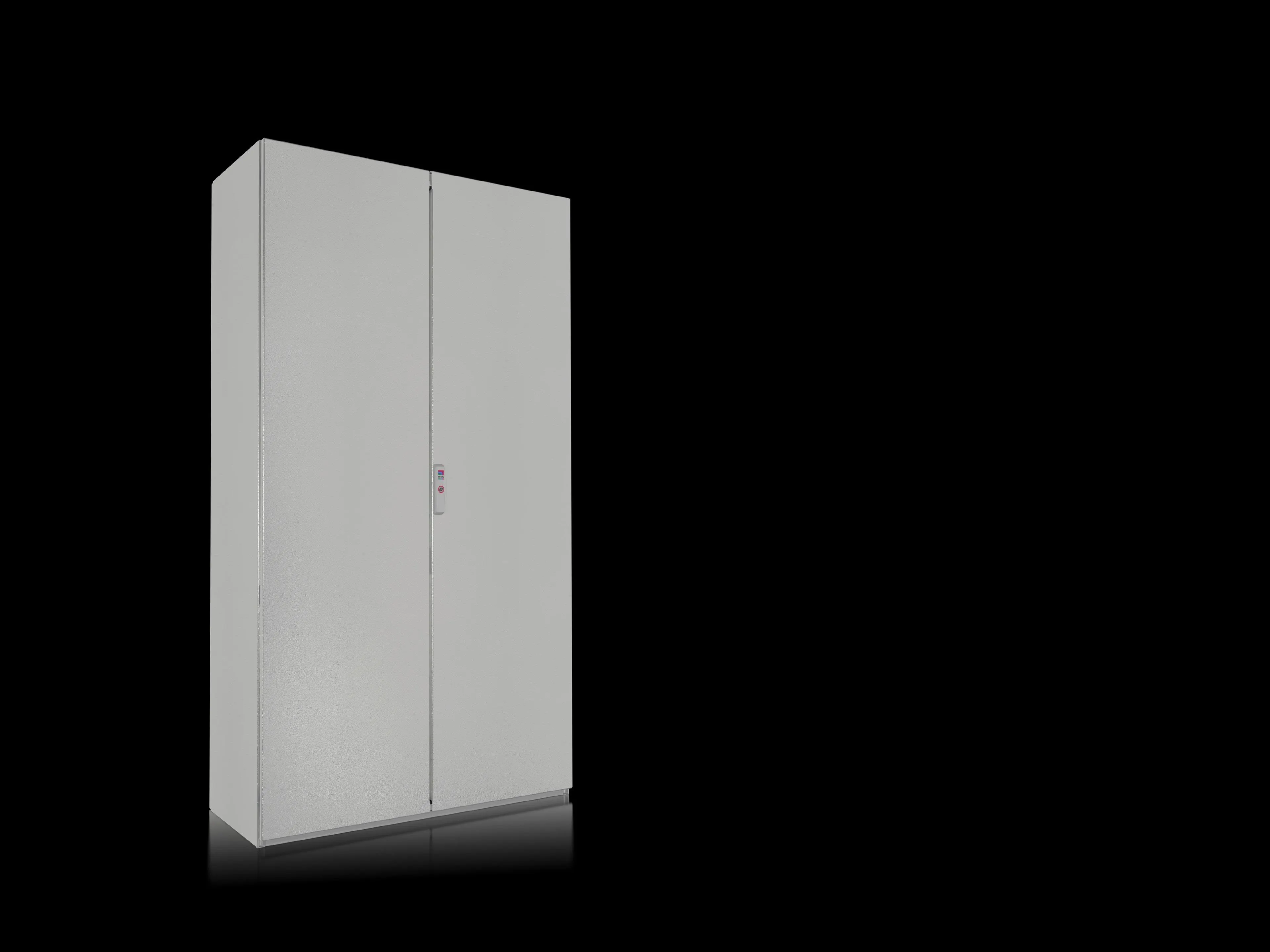

Rittal SE 5840.600 Enclosure - IP55
Part Number: 5840600
Manufacturer
Rittal
Part number
5840600
Alt Part Number
SE 5840.600
Quick Summary
Rittal SE 5840.600 enclosure is a free-standing sheet-steel housing ideal for robust control cabinets in manufacturing and automation lines. It addresses common pain points around access, wiring, and future retrofits by offering a ready-to-configure platform with front-access doors and a mounting plate. The enclosure carries IP55 protection, NEMA 12 construction, and IK10 impact resistance, with UL Type 1 readiness, providing confidence for diverse installation contexts. By aligning with VX SE system architecture and VX25 accessories, it delivers scalable infrastructure, reduces installation time, and simplifies maintenance planning for panel builders and automation engineers alike.
Product Information
Extended Description
5840600 Rittal: VX SE free-standing enclosure system, WHD: 1000x1800x400 mm, sheet steel, with mounting plate, two doors at the front
Article number
SE 5840.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 1,000 mm | Height: 1,800 mm | Depth: 400 mm
Dimensions mounting plate (W x H)
899 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
144 kg
PCF per pack (cradle-to-gate)
548.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959149
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE free-standing enclosure system, WHD: 1000x1800x400 mm, sheet steel, with mounting plate, two doors at the front
Two front doors, a detachable rear panel, and a solid mounting plate enable easier cable routing, faster wiring, and flexible retrofitting in demanding environments. This feature reduces commissioning time and minimizes access-related downtime for machine builders deploying control panels in tight spaces. The design supports scalable configurations while maintaining robust protection, which translates to lower lifecycle costs and smoother expansion of automation capabilities in production lines. The large 1000 mm width improves stage layout for power distribution and controller clustering, enabling more efficient space utilization in compact control rooms and on crowded shop floors.
Get a Quick Quote for a Rittal 5840600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5840600?
Enquire Now
FAQs
To install, mount the 899x1696 mm mounting plate inside the 1000x1800x400 mm enclosure, align with the two front doors, and secure with the included rear panel. Use the two punched rails (18x39 mm) to mount components and adapt with VX25 accessories as needed. Swapping door orientation is supported to fit your layout.
The enclosure uses sheet steel construction with varied thicknesses: 1.5 mm for the enclosure and rear panel, 2.0 mm for the door, and 3.0 mm for the mounting plate. It delivers IP55 protection, NEMA 12 compatibility, and IK10 impact resistance, with a powder-coated exterior and zinc-plated gland plates for long-term durability.
Yes. With IP55 dust and water ingress protection, NEMA 12 robustness, and IK10 impact resistance, the SE 5840.600 is well-suited for manufacturing floors, automotive lines, and other demanding settings where reliable environmental protection and durable construction are required.
The enclosure meets IEC protections (IP55) and NEMA 12 requirements, supports UL Type 1 interior applications, and offers IK10 impact resistance. The combination supports compliant panel builds for industrial automation and ensures safer, standardized installations across diverse facilities.
The rugged sheet-steel construction and powder-coated finish minimize corrosion and wear, reducing maintenance costs. VX SE compatibility and VX25 accessory support simplify future upgrades, decreasing downtime during expansions and retrofits, which translates to lower total cost of ownership and faster ROI for panel builders and system integrators.
