Rittal 5841600 Enclosure VX SE - IP55 protection
Part Number: 5841600
Manufacturer
Rittal
Part number
5841600
Alt Part Number
SE 5841.600
Quick Summary
Rittal 5841600 enclosure provides a robust free-standing housing for electrical control gear. The design helps engineers fit more functionality into tighter spaces without compromising safety. Many users struggle with configuring space-efficient, secure enclosures that resist dust, moisture and ingress. The VX SE system offers IP55 protection, NEMA 12 compatibility and IK10 impact resistance, with UL 50E Type 1 compliance, enabling safe, compliant installations. Its modular VX25 accessory compatibility supports scalable upgrades without cabinet replacement. By consolidating doors, mounting plates and rear panels into a single system, electricians save installation time and improve reliability across the plant, delivering measurable reductions in downtime and total cost of ownership.
Product Information
Extended Description

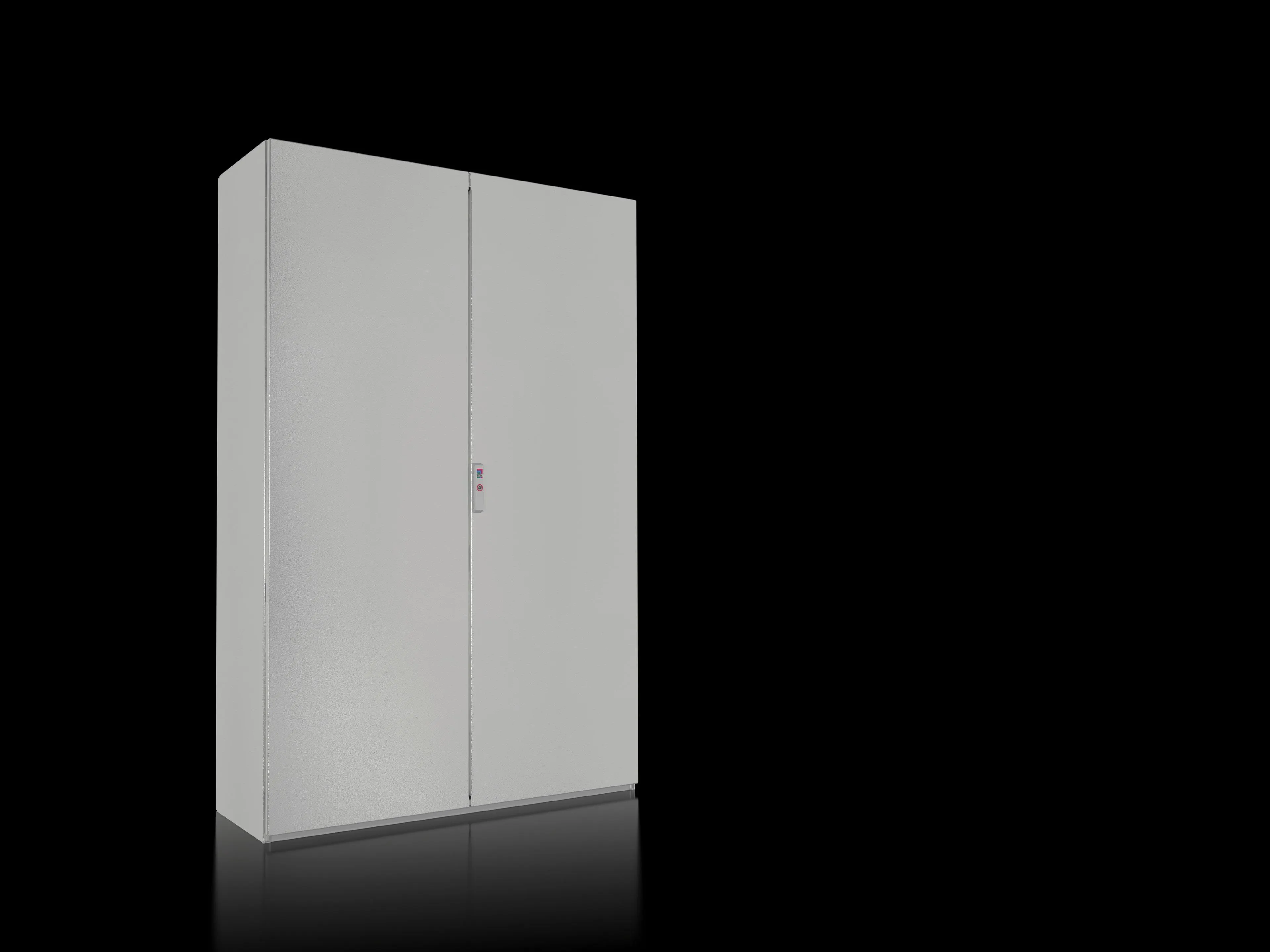

5841600 Rittal: VX SE free-standing enclosure system, WHD: 1200x1800x400 mm, sheet steel, with mounting plate, two doors at the front
Article number
SE 5841.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 1,200 mm | Height: 1,800 mm | Depth: 400 mm
Dimensions mounting plate (W x H)
1,099 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
173 kg
PCF per pack (cradle-to-gate)
659.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959132
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE free-standing enclosure system, WHD: 1200x1800x400 mm, sheet steel, with mounting plate, two doors at the front
Feature and Benefit focused descriptions follow a practical pattern: each feature leads to a clear business impact and concrete applications. The sheet steel construction (1.5 mm enclosure, 2.0 mm doors, 1.5 mm rear panel) delivers durable protection against industrial dust and impact, reducing maintenance cycles and replacement costs in harsh factory environments. The IK10 rating supports reliable operation in high-traffic areas or with frequent access needs, while the IP55 protection guards against dust ingress and light water exposure, supporting indoor and semi-exposed installations. VX SE compatibility with VX25 accessories enables modular upgrades without cabinet disposal, reducing capital expenditure and phasing risk when expanding control schemes. Two front doors facilitate convenient wiring access and serviceability, while the included mounting plate and 18x39 mm punched rails speed up installation and ensure rigid panel mounting. The textured powder-coated finish and zinc-plated gland plates extend service life in corrosive or humid settings, lowering lifecycle costs and downtime.
Get a Quick Quote for a Rittal 5841600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5841600?
Enquire Now
FAQs
Yes. The VX SE free-standing enclosure is designed for system compatibility with VX25 accessories, enabling modular upgrades. It ships with a mounting plate and two punched rails (18 x 39 mm) for flexible interior layouts. The rear panel is detachable, and the right/left door arrangement can be swapped, supporting adaptable installation in tight spaces and varying plant layouts.
The SE 5841.600 enclosure uses sheet steel construction with a 1.5 mm enclosure, 2.0 mm door, and 1.5 mm rear panel. It features IP55 protection and NEMA 12 compatibility, IK10 impact resistance, and UL 50E Type 1 certification, backed by a powder-coated exterior and zinc-plated mounting components for long-term durability.
Industries with harsh or dust-prone environments, such as manufacturing lines, process automation, and packaging or material handling facilities, benefit from the IP55/NEMA 12 protection and rugged sheet-steel construction. The unit’s modular VX SE design and VX25 compatibility support scalable automation projects and retrofit programs without cabinet replacement.
Key certifications include IP55 protection (dust and water ingress protection), NEMA 12 enclosure rating for indoor use, IK10 impact resistance, and UL 50E Type 1 for electrical assemblies. These standards help ensure regulatory compliance, safer wiring, easier inspection, and a predictable installation workflow across industrial facilities.
The detachable rear panel, swap-friendly doors, and mounting rails simplify routine service and upgrades, reducing downtime. Modular VX25 compatibility minimizes future capital expenditure by allowing incremental expansions. The powder-coated finish and zinc-plated components extend service life in harsh environments, lowering maintenance costs and improving total cost of ownership over the cabinet lifespan.
