Rittal SE 5845.600 Enclosure System - IP55/IK10
Part Number: 5845600
Manufacturer
Rittal
Part number
5845600
Alt Part Number
SE 5845.600
Quick Summary
Rittal SE 5845.600 enclosure is a free-standing cabinet for industrial control panels. Engineers face challenges deploying large equipment in limited floor space, which delays projects and increases risk. This enclosure delivers IP55 protection, IK10 impact resistance, and UL 50E Type 1 conformity, with NEMA 12 compatibility for added ruggedness. Beyond protection, VX25 accessory compatibility and scalable mounting options drive faster commissioning, while reducing lifecycle costs. The solution also supports long-term serviceability and safer maintenance, making it a practical choice for automation cabinets and electrical infrastructures in demanding environments.
Product Information
Extended Description

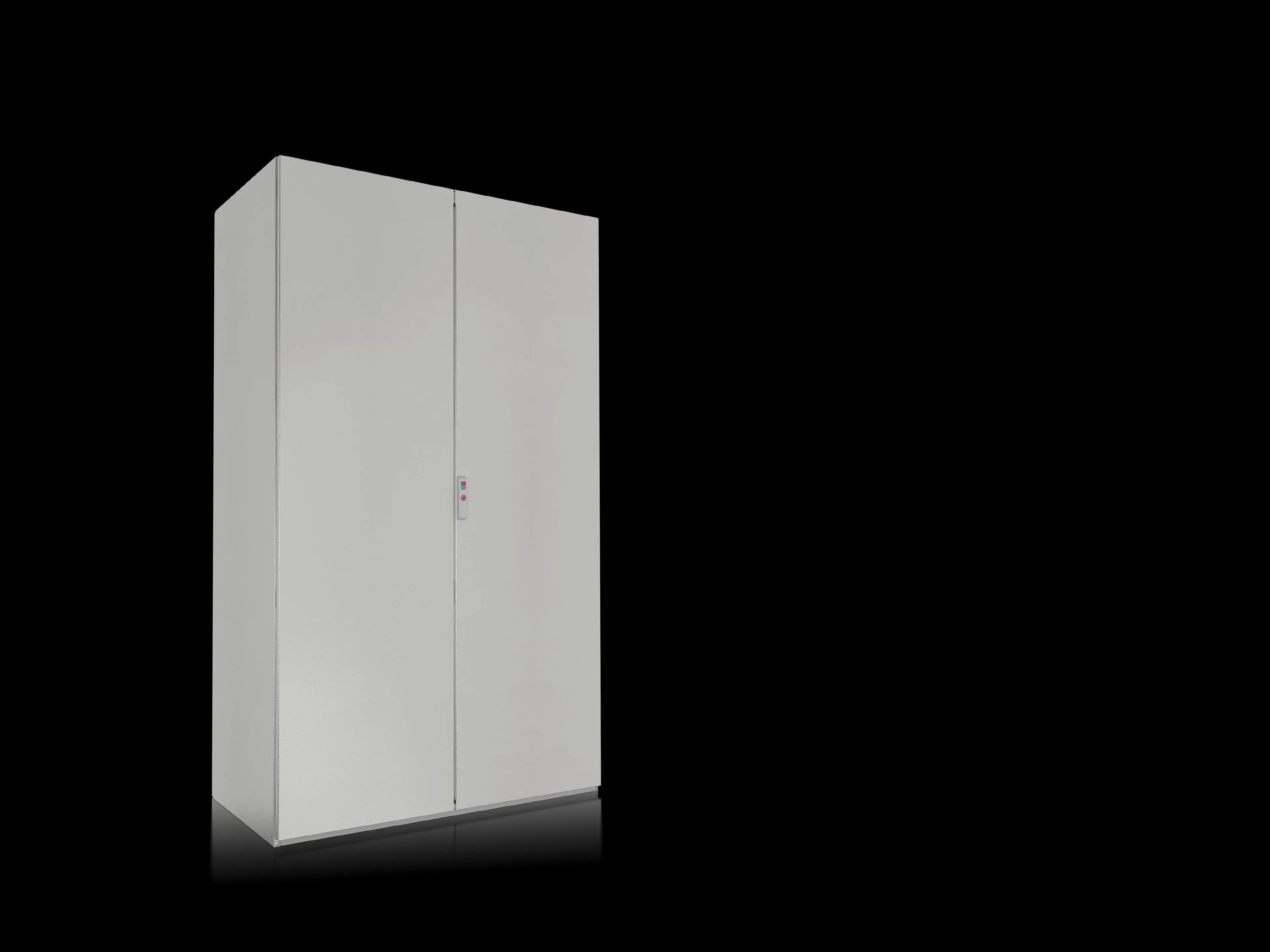

5845600 Rittal: VX SE Free-standing enclosure system, WHD: 1200x2000x600 mm, Sheet steel, with mounting plate, double door at the front
Article number
SE 5845.600
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid top and sides | Door(s) | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate | Gland plates | Rear panel, detachable | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm | Rear panel, one-piece
Dimensions
Width: 1,200 mm | Height: 2,000 mm | Depth: 600 mm
Dimensions mounting plate (W x H)
1,099 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
206 kg
PCF per pack (cradle-to-gate)
784.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177959231
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX SE Free-standing enclosure system, WHD: 1200x2000x600 mm, Sheet steel, with mounting plate, double door at the front
The SE 5845.600 enclosure uses a robust sheet steel body with a roll-formed frame and two integral mounting levels, enabling immediate hardware integration and a streamlined assembly process. Feature → Business Impact → Application: Two front doors and a detachable rear panel simplify access during wiring and testing, reducing commissioning time and minimizing fatigue for technicians on busy factory floors; application in control cabinets for process or factory automation. The mounting plate is 1,099 × 1,896 mm, providing a precise, scalable workspace; application in medium-to-large electrical assemblies. The system offers IP55, NEMA 12 and IK10 ratings, ensuring compliance with industrial safety norms while withstanding dust, water jets, and impact; application in harsh production environments. With 1.5–2.0 mm shell construction and powder-coated exterior, it delivers corrosion resistance and longevity, lowering maintenance costs. The VX SE is compatible with VX25 accessories, speeding customization and upgrades; application in modular control architectures. The enclosure ships with rails, gland plates, and a detachable rear panel, reducing the need for additional parts, improving install predictability, and accelerating project delivery. Weight per pack is 206 kg, which supports stable installations and minimizes vibration-sensitive equipment concerns; application in heavy-duty industrial panels. Overall, this system supports sustainable design through cradle-to-gate PCF of 784.9 kg CO2 eq (Cat B) and a practical balance of strength, installability, and total cost of ownership.
Get a Quick Quote for a Rittal 5845600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5845600?
Enquire Now
FAQs
The SE 5845.600 is designed for VX SE compatibility, offering mounting levels, a mounting plate sized at 1,099 × 1,896 mm, and two punched rails (18 × 39 mm). This enables rapid insertion of VX25 modules and accessories, reducing configuration time and ensuring a clean, upgrade-ready enclosure for evolving automation architectures.
It provides IP55 protection, NEMA 12 compatibility, and IK10 impact resistance. IP55 guards against limited dust and water exposure, NEMA 12 suits indoor dust and oil splash conditions, and IK10 ensures high impact resistance. Together, they help protect sensitive drive electronics, power supplies, and PLCs in challenging factory environments.
The enclosure is designed for indoor industrial use with robust powder-coated sheet steel. While not specifically rated for outdoor weather exposure, its IP55 and NEMA 12 capabilities support protection in semi-exposed indoor spaces or harsh environmental areas inside plants. For outdoor applications, consider additional weather-proofing or climate-controlled housings as needed.
Key certifications and standards include IP55 protection (IEC 60529), NEMA 12 compatibility, IK10 impact resistance, UL 50E Type 1 rating, and CE/ETIM/ECLASS classifications. These align with common industrial safety and electrical enclosure requirements, helping ensure regulatory compliance for control cabinets and automation panels.
The system delivers faster commissioning through VX SE compatibility, integrated mounting rails, and a detachable rear panel that simplifies wiring. Heavy-weight construction contributes to stable installations, reducing vibration-related issues. Combined with scalable configuration and durable finish, this enclosure lowers maintenance costs and extends service intervals, improving total cost of ownership over the equipment lifecycle.
