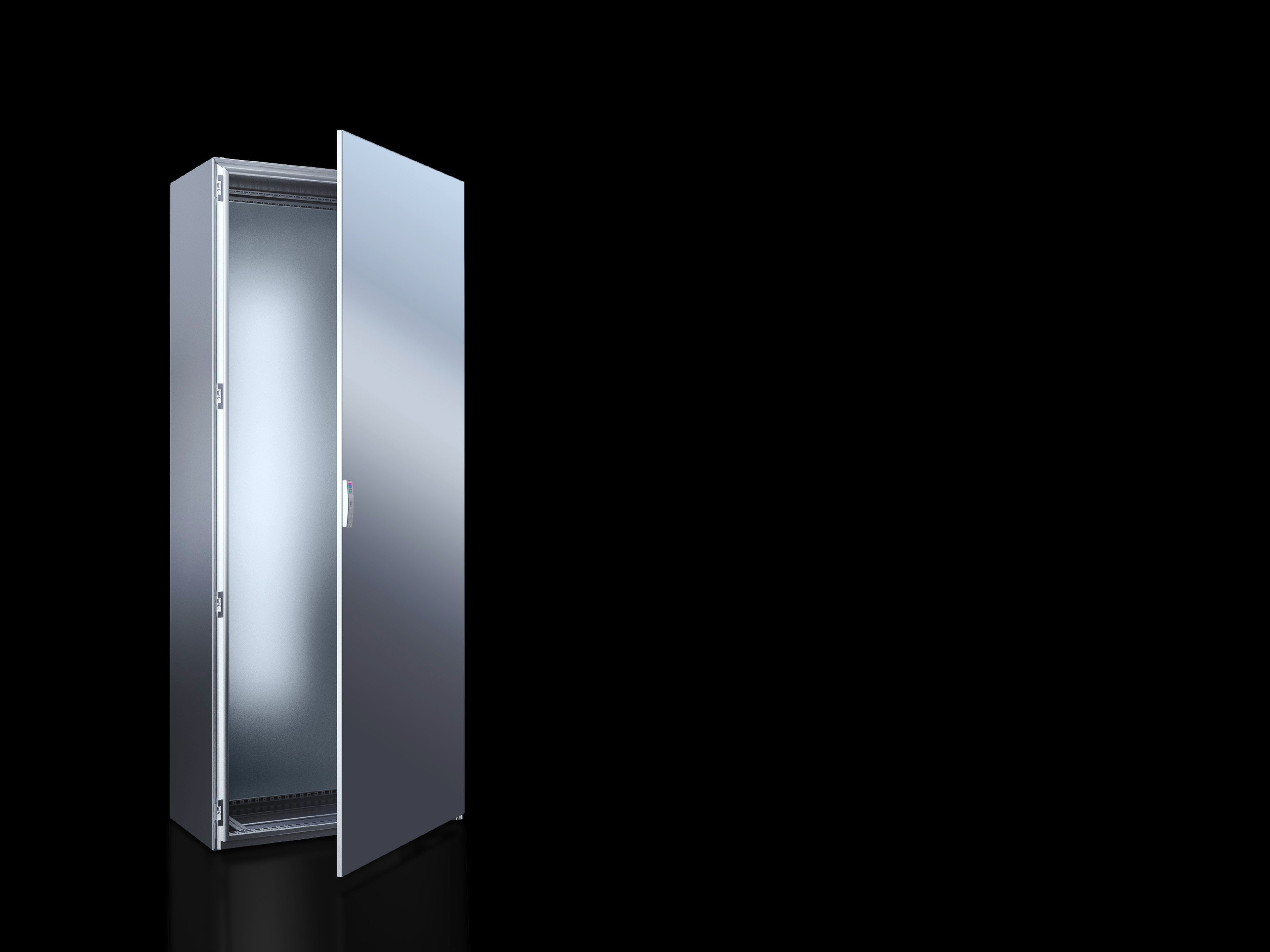

Rittal 5850680 Free-standing Enclosure - IP66/NEMA 4X
Part Number: 5850680
Manufacturer
Rittal
Part number
5850680
Alt Part Number
SE 5850.680
Quick Summary
Rittal 5850680 Free-standing Enclosure delivers robust stainless steel housing for industrial control panels in harsh environments. Operators often battle corrosion, ingress, and downtime during maintenance in challenging locations. The unit features IP66 / NEMA 4X protection, UL 50E Type 1 rating, and IK10 impact resistance for rugged service. Thanks to VX SE compatibility, a mounting plate, and VX25 baying readiness, it enables rapid installation and scalable automation deployments. Durable materials and accessible mounting options translate into lower lifecycle costs while supporting compliant, efficient panel builds across industrial settings.
Product Information
Extended Description
5850680 Rittal: VX SE Free-standing enclosure system, 600x1600x400 mm, Stainless Steel, 1.4301 / IP 66 / NEMA 4X, with mounting plate, single door at the front
Article number
SE 5850.680
Material
Enclosure: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed | Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed | Mounting plate: Sheet steel, 3.0 mm | Base: Stainless steel 1.4301 (AISI 304), 1.5 mm
Surface finish
Enclosure, rear panel and door: Brushed, grain size 400 | Mounting plate: Zinc-plated | Base: Uncoated
Supply includes
Enclosure, solid top and sides | Door(s) | Door hinged on the right, may be swapped to the left | Rear panel, detachable | Mounting plate | Base, gland plate(s) | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm
Dimensions
Width: 600 mm | Height: 1,600 mm | Depth: 400 mm
Dimensions mounting plate (W x H)
499 mm x 1,496 mm
Protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 4X
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Note
Due to the hardness of the material, we recommend using metal multi-tooth screws 2486.400 for the interior installation.
Basic material
Stainless steel 1.4301 (AISI 304)
Packs of
1 pc(s).
Weight/pack
94.4 kg
EAN
4028177959415
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX SE Free-standing enclosure system, 600x1600x400 mm, Stainless Steel, 1.4301 / IP 66 / NEMA 4X, with mounting plate, single door at the front
Feature: Stainless steel construction using 1.4301 (AISI 304) material with a brushed finish. Business Impact: Exceptional corrosion resistance and long service life in wash-down and dusty environments. Application: Control panels in food processing, pharmaceutical, chemical plants, and outdoor substations. Feature: Dimensions 600 mm W x 1,600 mm H x 400 mm D with mounting plate 499 mm x 1,496 mm. Business Impact: Provides a stable, ready-to-mount footprint that accelerates installation and reduces field fabrication. Application: Standardized enclosures for modular automation and VX25 baying systems. Feature: Front door, rear panel, and base assembled for quick assembly; door can be hinged on the right or swapped to the left. Business Impact: Flexible installation and simplified service access, lowering maintenance time. Application: Equipment cabinets requiring adaptable access orientation. Feature: Protection IP66 / NEMA 4X with IK10; material quality and surface finish reduce corrosion risk and impact damage. Business Impact: Higher reliability in demanding environments and extended uptime. Application: Industrial automation panels in wash-down zones and high-dust areas. Feature: Compatibility with VX SE and VX25 baying system; two punched rails 18 x 39 mm; mounting plate included. Business Impact: Streamlined integration with standard rails and modular expansions; faster wiring and commissioning. Application: Large-scale automation installations and retrofit projects. Note: For interior installation, metal multi-tooth screws 2486.400 recommended due to material hardness.
Get a Quick Quote for a Rittal 5850680
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5850680?
Enquire Now
FAQs
The SE 5850.680 ships with a mounting plate (499x1496 mm) and two punched rails (18x39 mm) to align with VX SE and VX25 baying. Install the rear panel, attach the mounting plate, and mount with the door hinged on the desired side (right by default, left swap possible). Use metal multi-tooth screws 2486.400 for interior mounting due to the material hardness, and verify IP66/NEMA 4X seals after assembly to maintain protection.
The enclosure offers IP66 and NEMA 4X protection, protecting against dust, water ingress, and corrosion in wash-down zones. It uses stainless steel 1.4301 (AISI 304) for the enclosure, door, and rear panel with brushed finishes, delivering high durability. These ratings support reliable operation in chemical plants, food processing, and outdoor installations where frequent cleaning occurs.
Yes. The SE 5850.680 carries UL 50E Type 1 guidance and IK10 impact resistance, ensuring compliance for indoor electrical enclosures and protection against mechanical shocks. This combination supports safe installation in automated classrooms, laboratories, and industrial plants while maintaining structural integrity during service life.
The mounting plate is 499 mm wide by 1,496 mm high, designed to align with the 600x1600x400 mm enclosure footprint. The door is mounted on the right by default and can be swapped to the left, providing installation flexibility to suit equipment layout and cable routing in cramped or modular installations.
Durable 1.4301 stainless steel and IP66/NEMA 4X protection deliver long-term resistance to corrosion and ingress, reducing maintenance intervals. The design supports VX SE/VX25 system integration for scalable automation, and the heavy-duty construction minimizes replacement frequency in harsh environments, yielding lower total cost of ownership over the equipment lifecycle.
